LM1875T Single Channel Fever Level HIFI Amplifier Board Speaker Amplifier Production DIY Kit Parts

LM1875T Single Channel Fever Level HIFI Amplifier Board Speaker Amplifier Production DIY Kit PartsItem NO.: LM1875T DIY KIT

US$ 4.32
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
LM1875T Single Channel Fever Level HIFI Amplifier Board Speaker Amplifier Production DIY Kit Parts
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

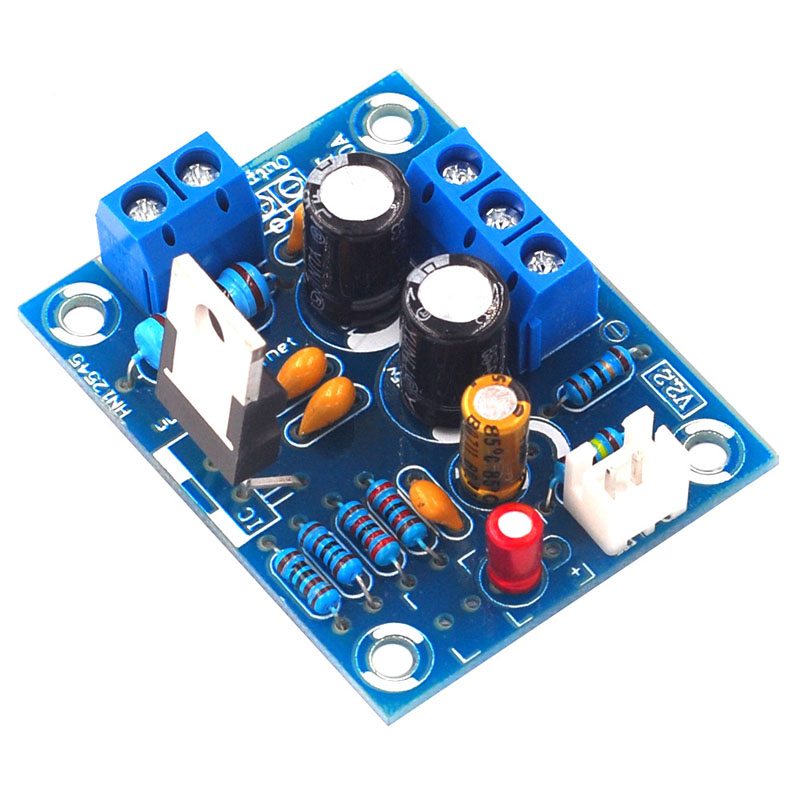

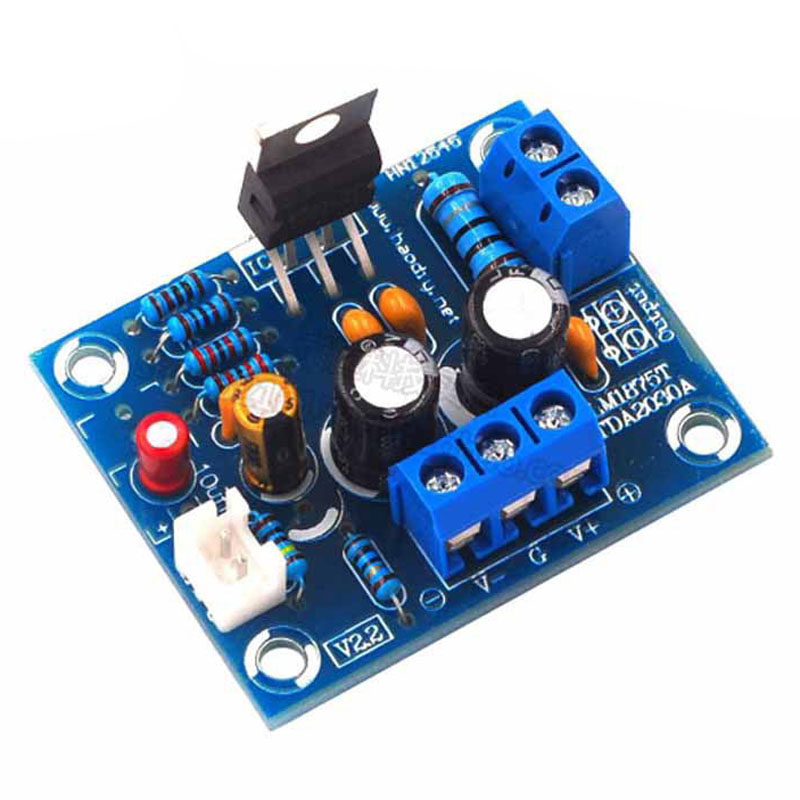

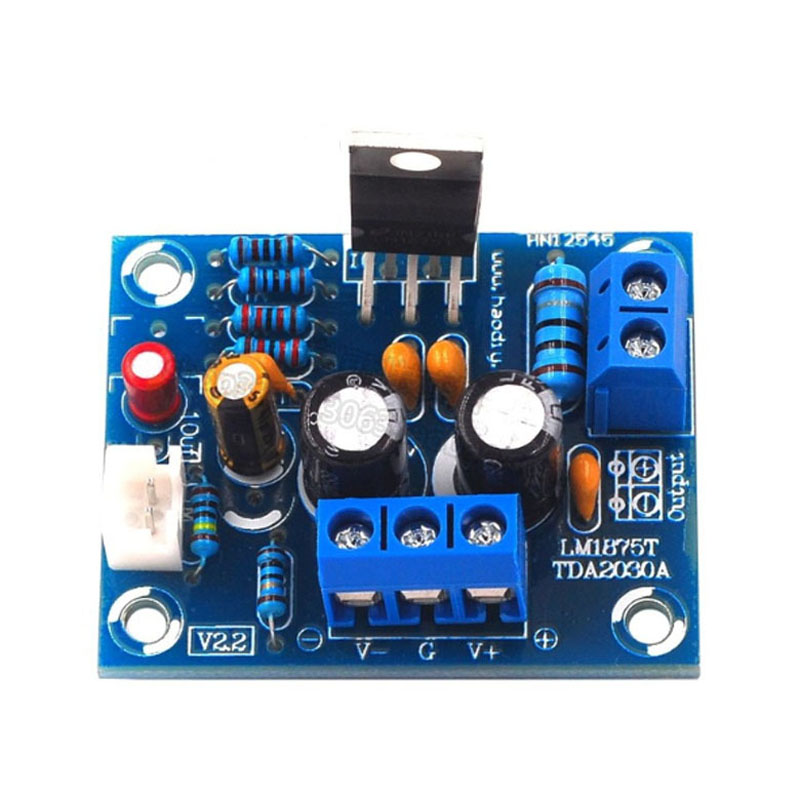

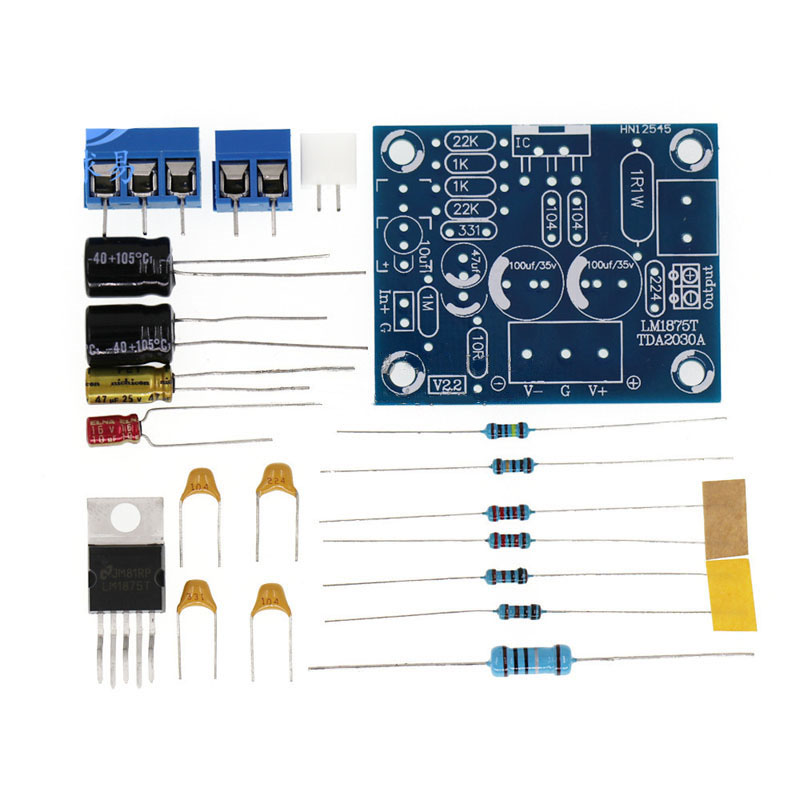

  • LM1875T Power Amplifier Board DIY KIT



    Product Information:



    The circuit and PCB layout originated from Europe and the United States, which is a classic design of Europe and the United States LM1875T! Wiring is reasonable! Outstanding performance! Since its launch in 2007, it has been highly sought after by DIY enthusiasts! The store keeps all the original wiring, and compresses the whole board size while keeping the original performance to the maximum! Make it more suitable for DIY! At the same time, the original components are also strengthened!



    Performance Parameters:



    ● Output power: typical 20W (maximum 30W)

    ● Speaker impedance: 4 Ω - 8 Ω

    ● Total harmonic distortion: < 0.04%

    ● Signal to noise ratio: 105dB

    ● Frequency response: 14Hz-100kHz (the maximum range calculated by RC high-low pass circuit is 3.29Hz-482.29kHz)

    ● Power supply voltage: ± 25V is recommended (the maximum voltage shall not exceed ± 30V, and the AC 18V full bridge rectification is 25V)

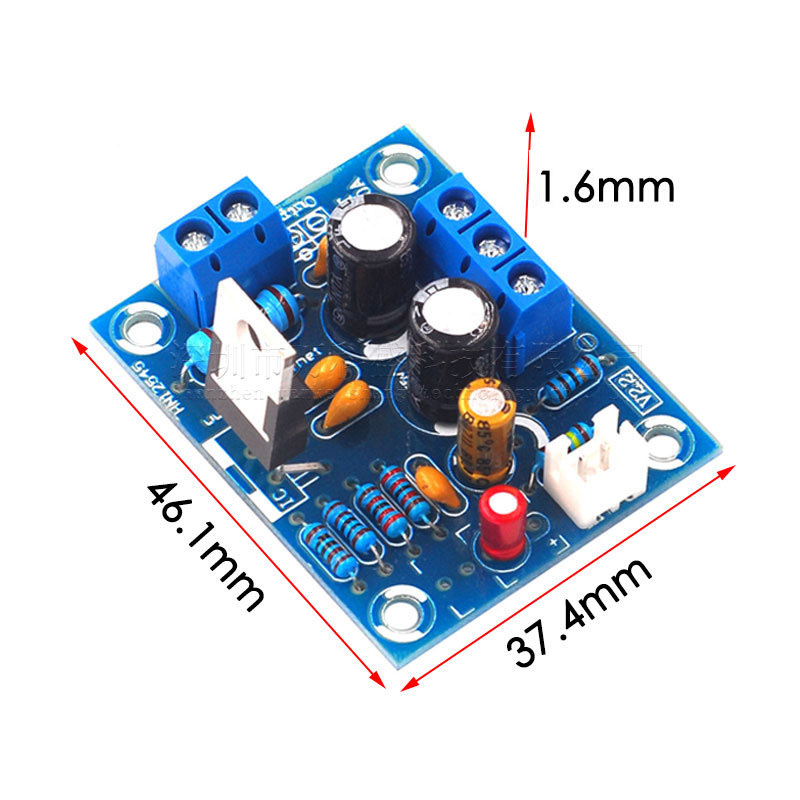

    ● Size: 46.1 * 37.4mm
