Photo-Sensitive And Light-Controlled Sound-Light Alarm Kit
Product Information:

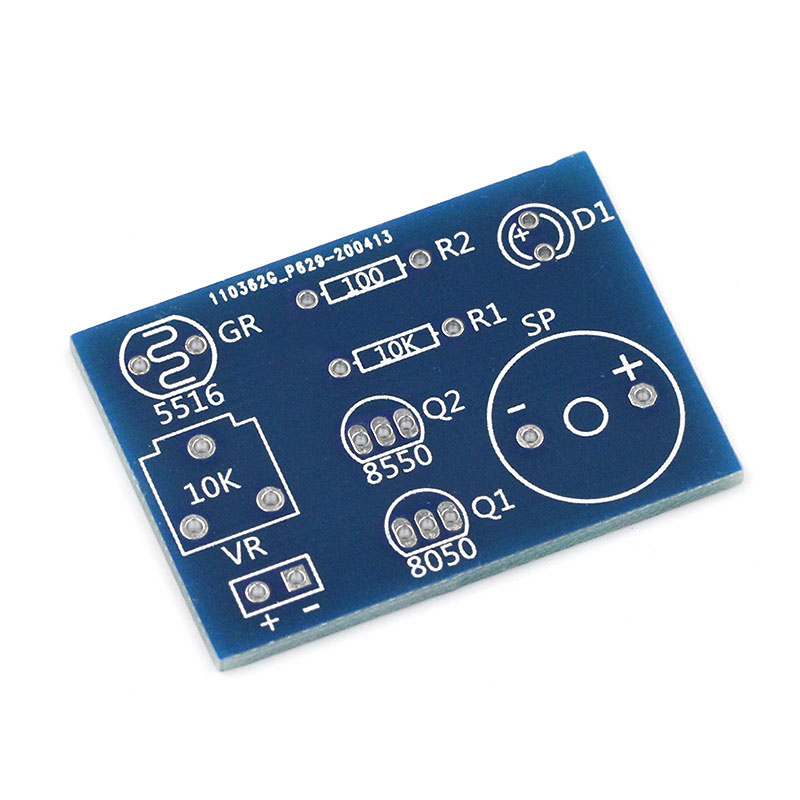

VR is an adjustable resistor used to adjust the sensing sensitivity. GR is a photosensitive resistor. When the light is bright, the resistance value of the photosensitive resistor decreases, the base current flowing into Q1 is large, the voltage of the triode collector decreases, D1 is lit, R2 is a current-limiting resistor, while the base current flowing into Q2 through R1 is also large, Q2 enters the saturation state, SP is a buzzer, and it starts to sound the alarm after receiving the current.
