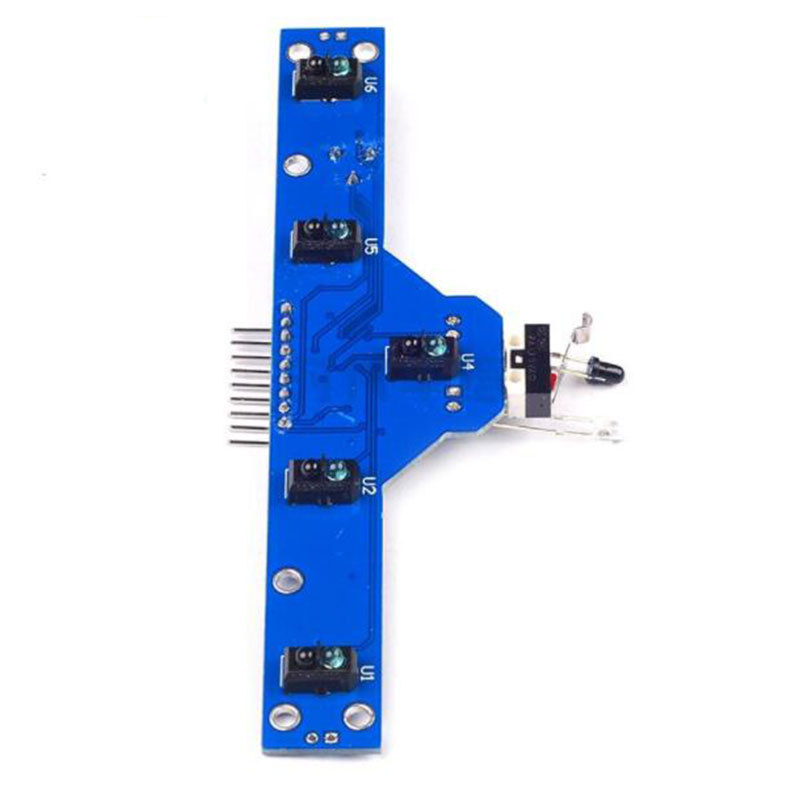

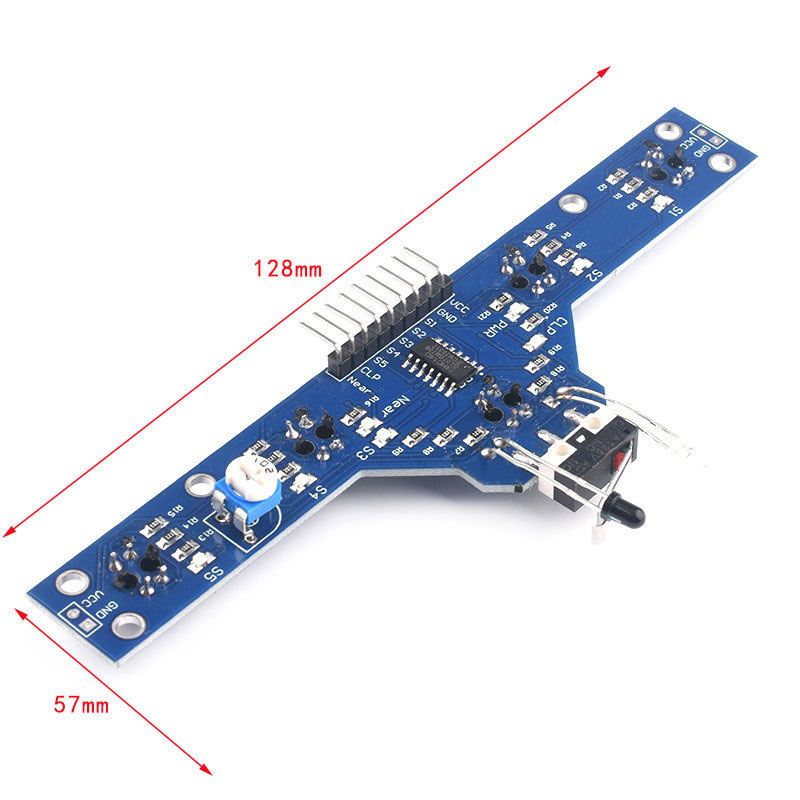

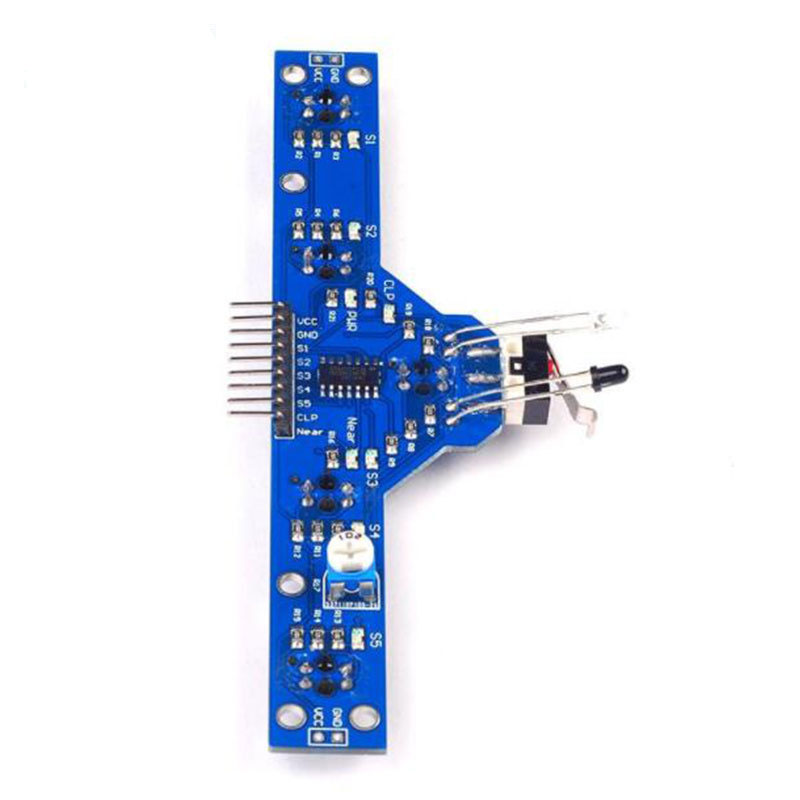

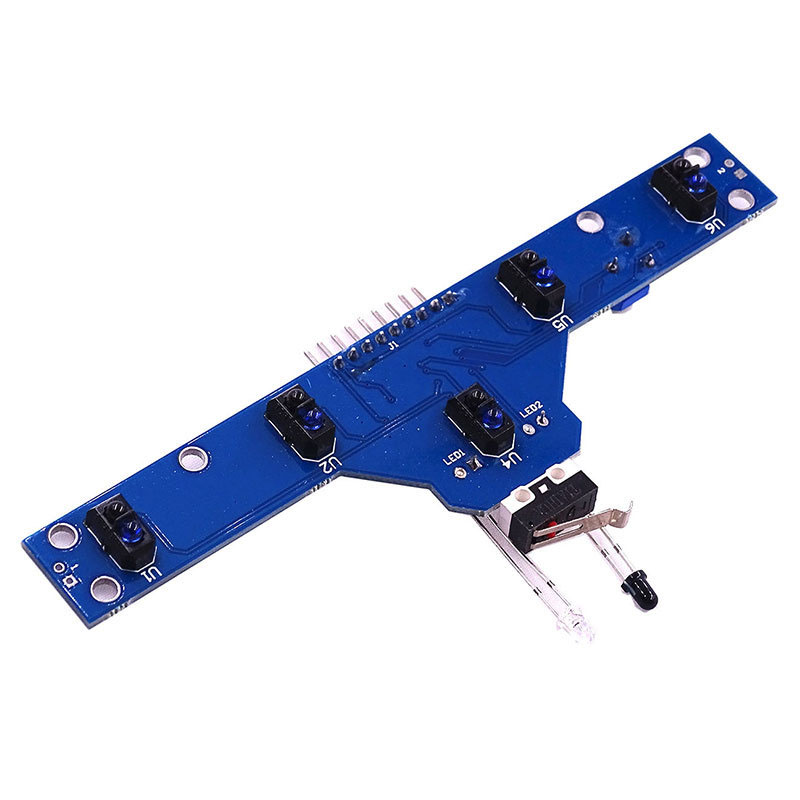

5-way Tracing Module Tracing Sensor Tracing Module Five Functions Infrared Distance Detection Sensor BFD-1000Item NO.: BFD-1000 5-way

5-way Infrared Tracking Sensor

Product Information:

● BFD-1000 is a cost-effective, multi-functional tracking module, which is dedicated to the majority of friends who want to make tracking robots. This module has been enough to deal with daily tracking tasks, and it also has infrared distance detection sensors, touch detection sensors, so that your designed robot can adapt to more situations.

● BFD-1000 is specially designed for searching black (white) lines, especially suitable for detecting complex black and white lines and crossed black and white lines. It has six channels of highly sensitive infrared sensors (five channels of line patrol, one channel of barrier), which can accurately identify black and white lines. It has the following functions and characteristics.

Product Features:

1. BFD-1000 integrates 5-way high sensitivity tracking sensor, which has little impact on the environment, can accurately track complex black lines (white lines), and is more comfortable with simple black lines.

2. The BFD-1000 integrates an infrared barrier sensor, and the barrier distance can be adjusted by sliding rheostat.

3. BFD-1000 has a specially designed touch detection sensor, which makes the design of the shuttle robot simpler.

4. BFD-1000 output signals are all digital signals (high and low levels), which are convenient to connect with the microcontroller.

5. The output status of all BFD-1000 sensors is indicated by LED lights, which is convenient for debugging.

6. The supporting voltage of BFD-1000 is 3.0-5.5v, meeting most system requirements.

7. The sensor with high sensitivity is adopted, and the tracking range can vary from 0.5mm-40mm without any adjustment.

Technical Parameters:

● Detection distance: 0-4 cm (black and white wire sensor) 0-5 cm (adjustable distance detection)

● Input voltage: 3.0-5.5V

● Output form: digital output (high and low level)
