5050 RGB Full-Color LED Water Light Module SCM Water Light Robot Accessories Intelligent Car

5050 RGB Full-Color LED Water Light Module SCM Water Light Robot Accessories Intelligent CarItem NO.: HW-43

US$ 3.87
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
5050 RGB Full-Color LED Water Light Module SCM Water Light Robot Accessories Intelligent Car
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

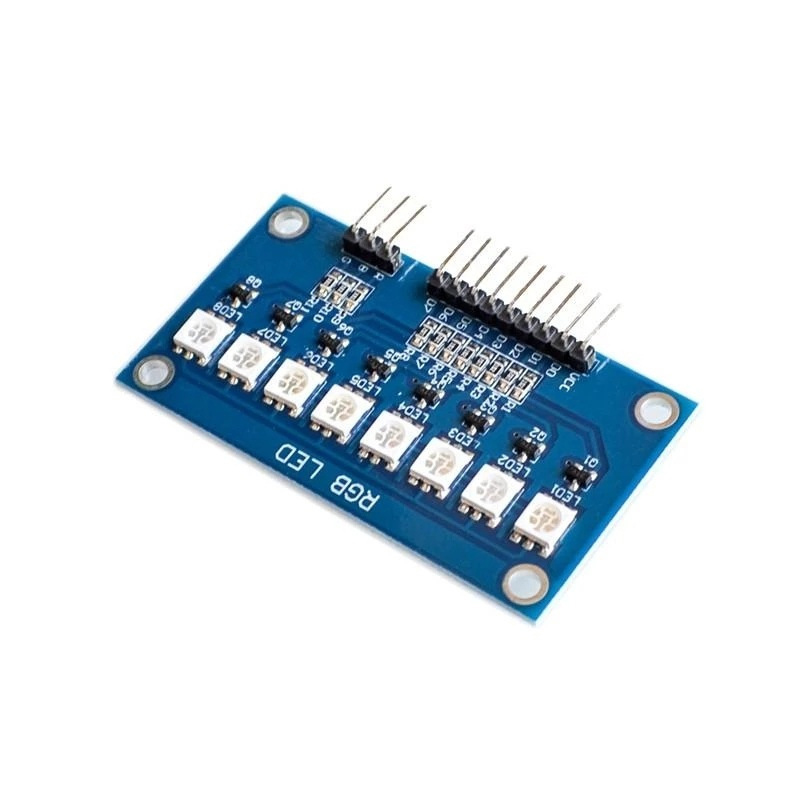

  • 5050 RGB Full-Color LED Water Lamp Module



    Features:



    ● Excellent PCB design, very beautiful

    ● 8 full-color LED with three primary colors (red, green and blue), scanning is the control mode

    ● The control mode is the same as that of the nixie tube, the LED corresponding to the position selection control is lit, and the segment selection control color

    ● Different color change effects can be produced through different procedures

    ● Applicable to 51/AVR/AVR/ARM/arduino and other platforms



    Wiring Method:



    The 8 pins D0~D7 control the 8 LEDs respectively, so it is good to connect them with the digital pins corresponding to the arduino (we only need to connect them with 2~9 pins in this experiment). In addition, there are three RGB leg positions next to it, which need to be connected with GND, bright red when connected with R, bright green when connected with G, bright blue when connected with B, and all three are bright when connected at the same time. I believe you all understand



    Shipping List:



    LED Water Lamp Module 1Pcs
