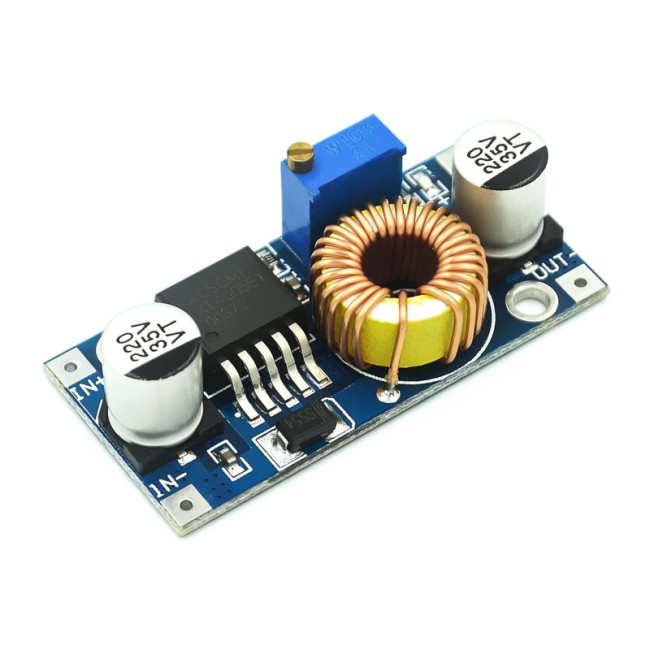

5A DCDC Adjustable Step-down Power Supply Module with High-power XL4005 High Efficiency Voltage Stabilization Far Surpasses LM2596Item NO.: XL4005(XL4015)
-
Customized Requirements
- Quantity
-
-
- Product Name: 5A DCDC Adjustable Step-down Power Supply Module with High-power XL4005 High Efficiency Voltage Stabilization Far Surpasses LM2596
- Item NO.: XL4005(XL4015)
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 5A , DCDC , Adjustable Step-down Power Supply Module , XL4005
- Creation Time: 2024-04-10

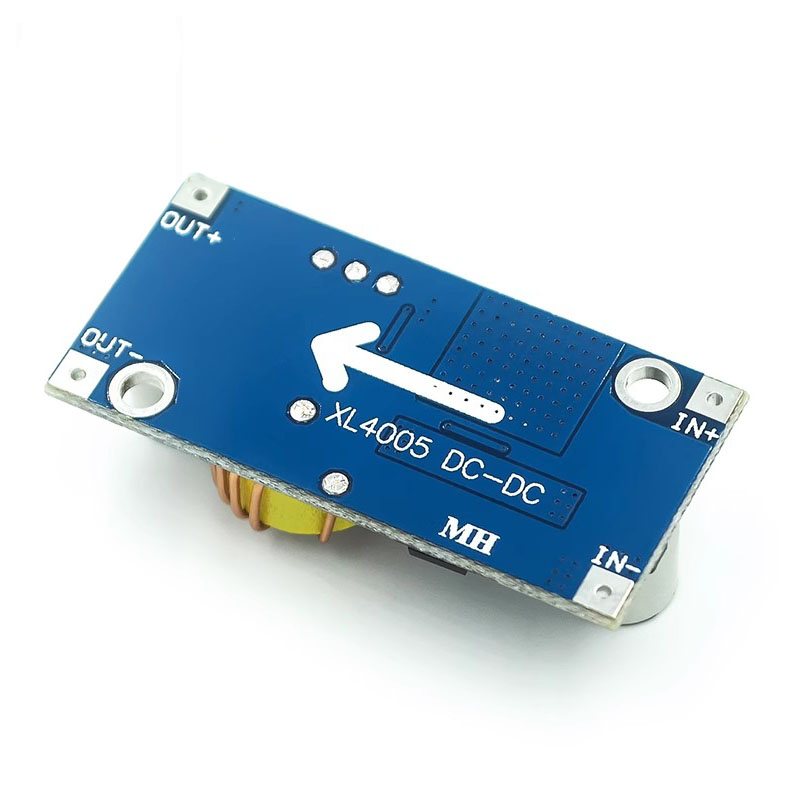

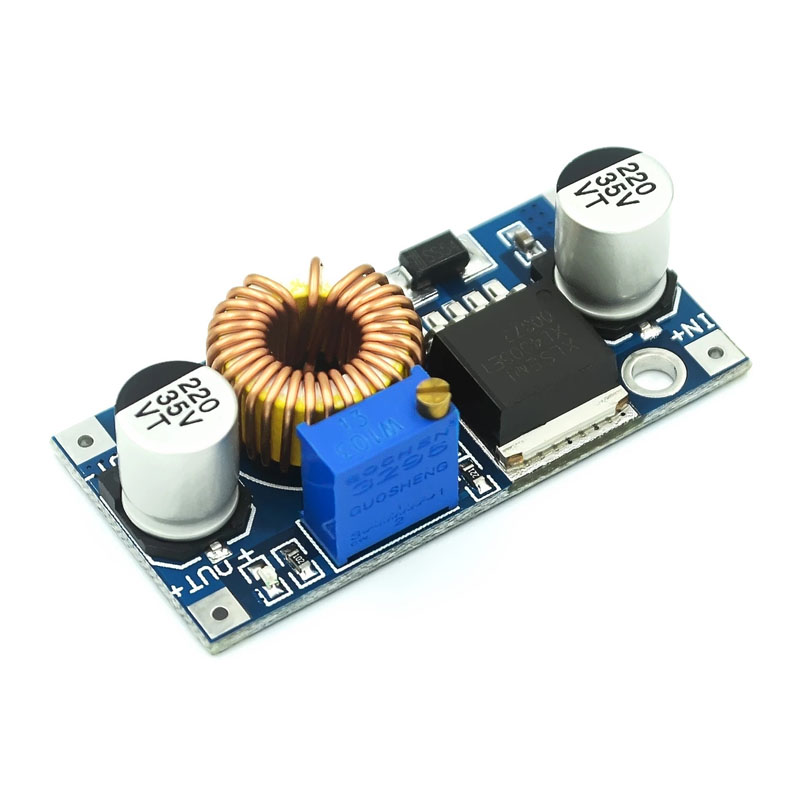

XL4005 DC-DC Adjustable Step-Down Module
Technical Parameters:
● Model name: DC-DC high current step-down power module
● Module nature: non isolated step-down
● Rectification method: asynchronous rectification
● Input voltage: 5V-32V
● Output voltage: 0.8V-24V
● Output current: peak (3. Strengthen heat dissipation for the above work)
● Conversion efficiency: up to 90%
● Switching frequency: 300KHz
● Output ripple: 30mV (no-load)
● Load adjustment rate: ± 0.5%
● Voltage regulation rate: ± 2.5%
● Operating temperature: -40 ℃ to+85 ℃

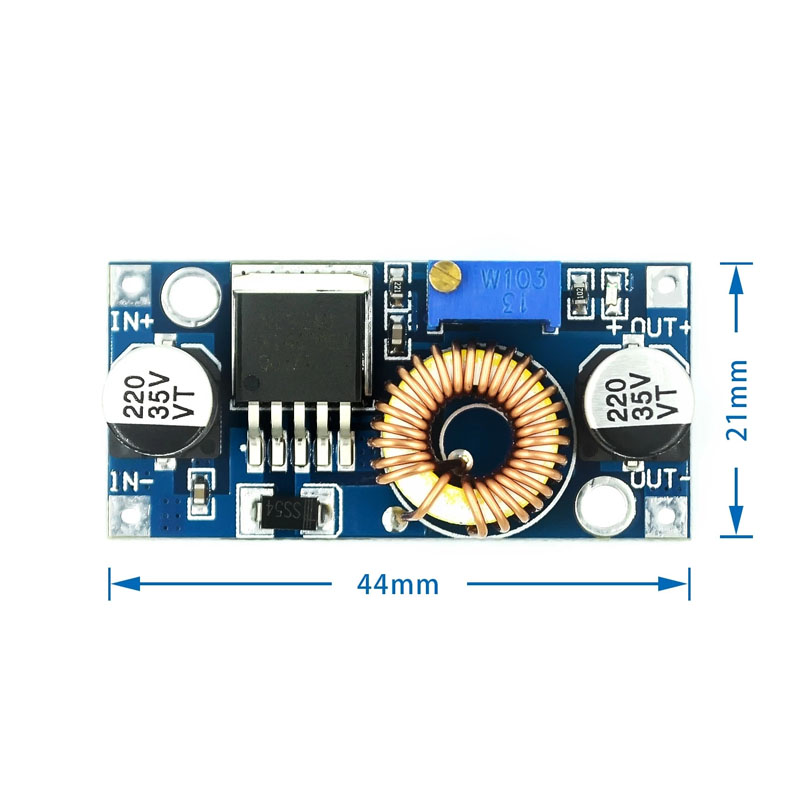

● External dimensions: 43 * 21 * 14 (length * width * height) (mm)
Features:
The use of high-power magnetic wound inductors and high current control chips results in small size, high power, and high efficiency.
Application Field:
DIY mobile power supply, onboard power supply, communication equipment power supply, etc.
