3.7V To 9V 5V Multimeter Modification 18650 Lithium Battery Charging Boost Discharging Integrated Adjustable Module 2AItem NO.: 3.7Vto9V5V
-
Customized Requirements
- Quantity
-
-
- Product Name: 3.7V To 9V 5V Multimeter Modification 18650 Lithium Battery Charging Boost Discharging Integrated Adjustable Module 2A
- Item NO.: 3.7Vto9V5V
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 2A , 3.7V To 9V 5V , Multimeter Modification , 18650 Lithium Battery Charging Boost Discharging Integrated Adju
- Creation Time: 2024-04-08

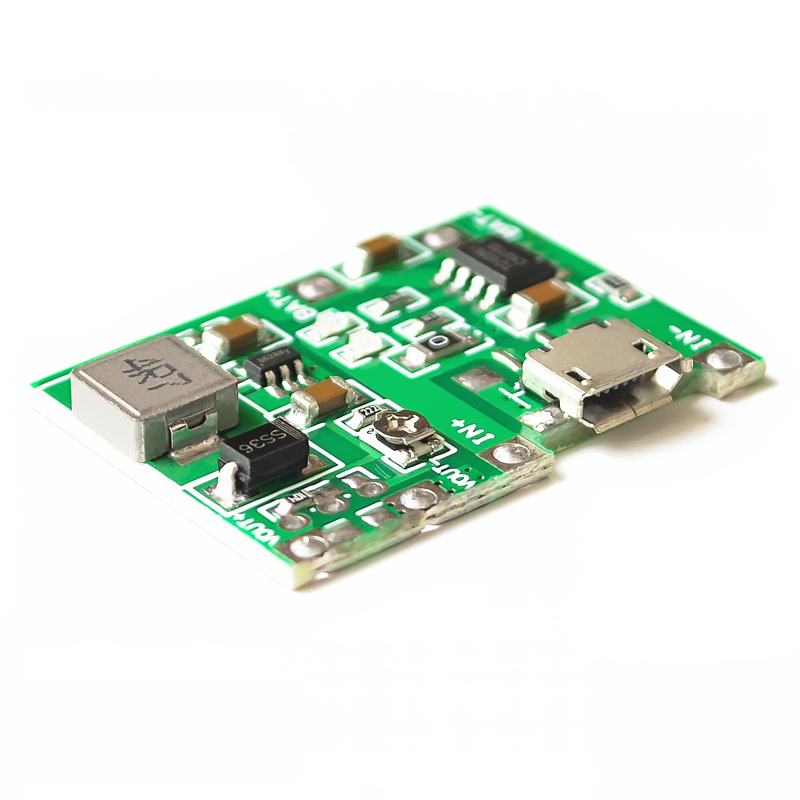

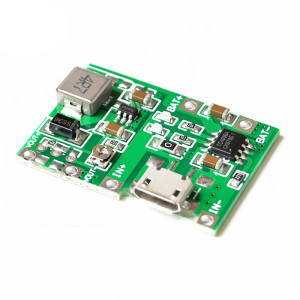

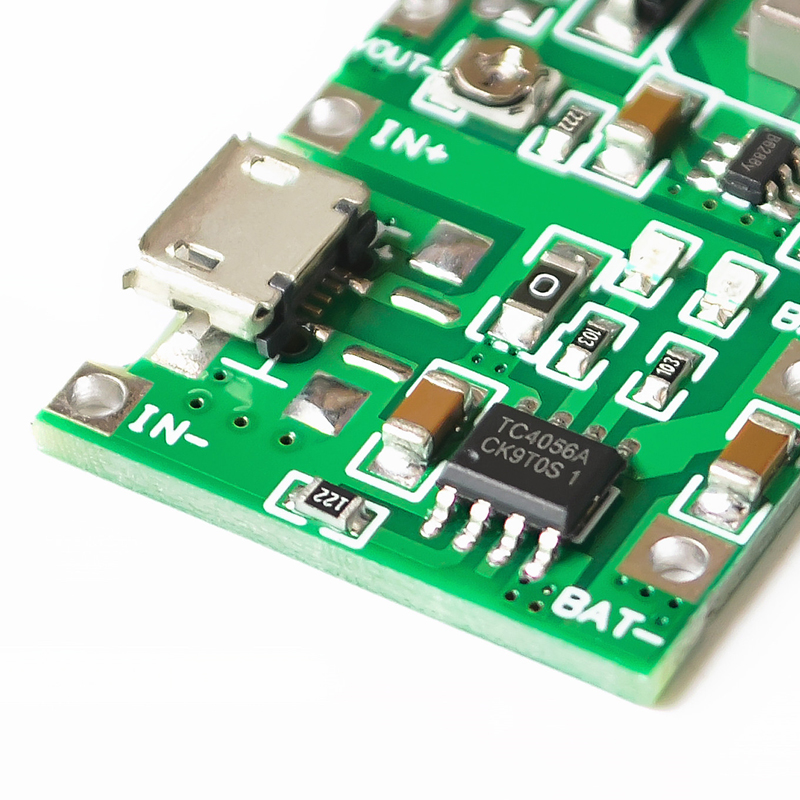

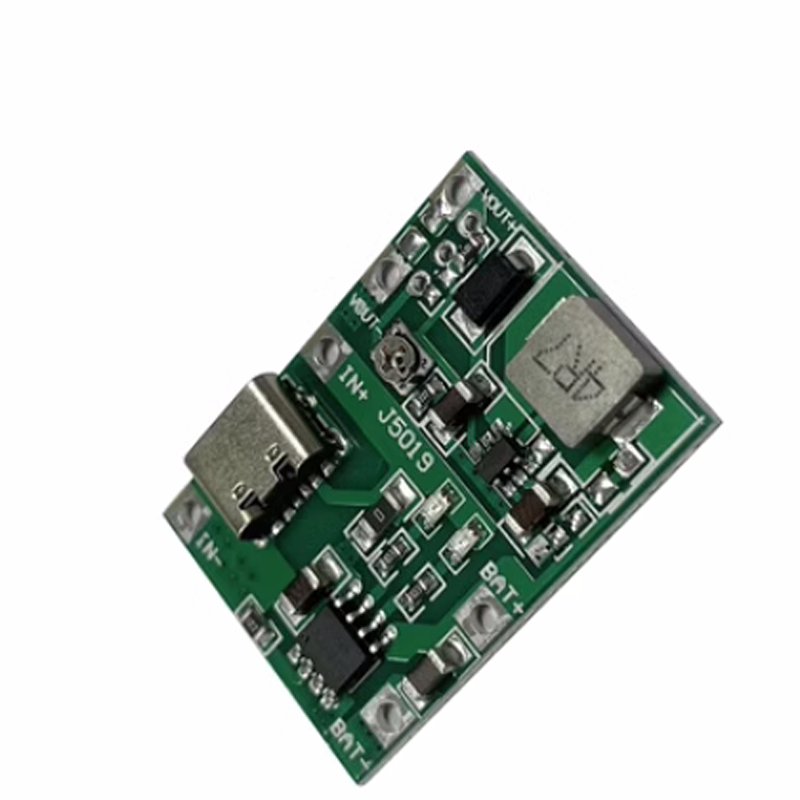

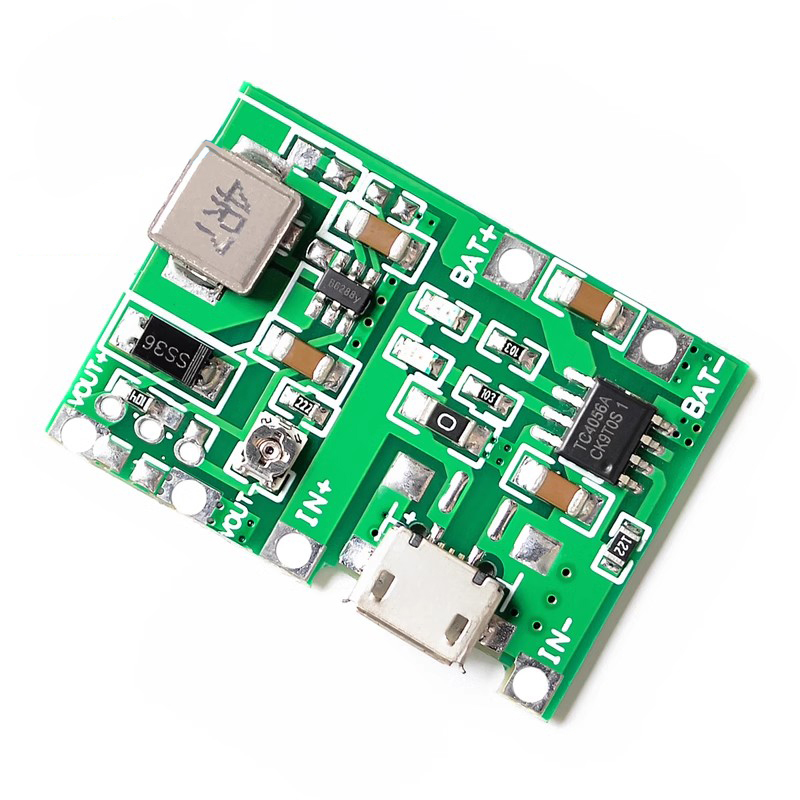

3.7V To 9V 5V Adjustable Module 2A
Product Description:
Connect all circuits before connecting to the battery
Do not operate with power on
Damage is not guaranteed to be clear before purchase
Before use, debug the default output of about 9V
Input voltage 4.5-8V
The output voltage can be continuously adjustable from 4.3V to 27V (any voltage above 4.3V and below 27V can be output with self adjustment, i.e. reversible clockwise adjustment for boost)
Charging voltage 4.2V, charging current 1A high
The discharge current is 2A, and the output current needs to be calculated by oneself
Output reference high current 5V 1.4A, 9V 0.8A, 12V 0.6A
Quiescent current approximately 0.5 mA
Overcurrent protection available
No over discharge protection (it can also be said that there is, 2V cut-off boost)
But without blocking the output, there is still 2V
Cut off the boost voltage of 2V and add a protective board depending on the situation

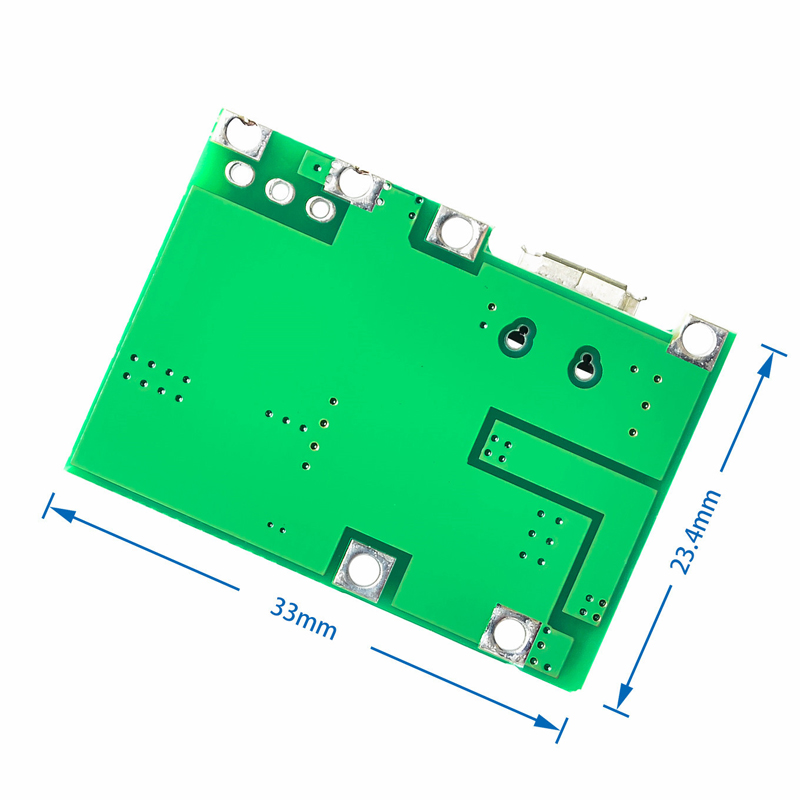

Size 3.3X2.3X0.9
