AD9833 Triangular Sine Wave Signal Source IC Integrated Circuit Square Wave Generator ModuleItem NO.: AD9833
-
Customized Requirements
- Quantity
-
-
- Product Name: AD9833 Triangular Sine Wave Signal Source IC Integrated Circuit Square Wave Generator Module
- Item NO.: AD9833
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: Waveform Generator , AD9833 , Triangular Sine Wave Signal Source
- Creation Time: 2024-05-07

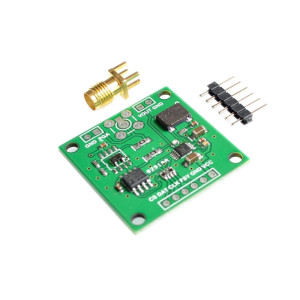

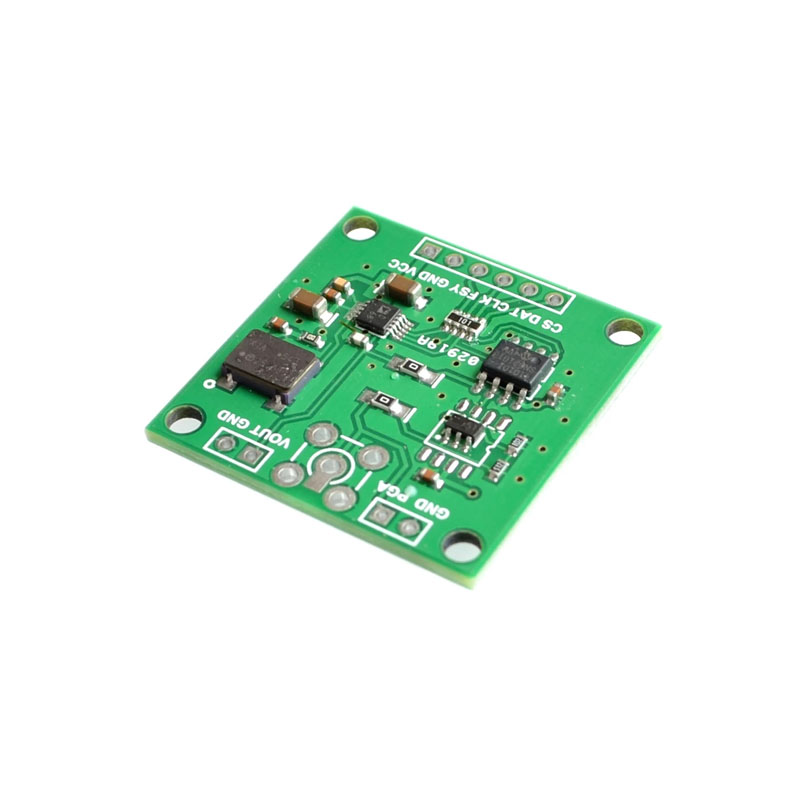

AD9833 Waveform Generator
Introduction:
AD9833 is a programmable waveform generator that can generate sine wave, triangular wave, and square wave signals with frequencies ranging from 0 to 12.5MHz. The waveform generator is widely used in various fields of measurement, excitation, and time-domain response. The output frequency and phase can be programmed through software, making it easy to adjust. When the main frequency clock is 25MHz, the accuracy is 0.1Hz, and when the main frequency clock is 1MHz, the accuracy can reach 0.004Hz. Data can be written through three serial interfaces
Application:
Frequency excitation/waveform generation. Measurement of liquid and airflow.
Sensing applications - approximation, motion, defect detection.
Linear loss, linear decay.
Testing equipment, medical equipment
Scanning and clock generator
Module features:
1. Working voltage: 2.3V-5.5V.
2. Working temperature range: -40~+105 ℃ prefix=o
3. On board 25MHz (with an accuracy of 50ppm) active crystal oscillator, with a step accuracy of 0.1Hz
4. The onboard 300M high-speed amplifier also has low-pass filtering function.
5. Two output signal channels, one raw signal output VOUT, one amplified 5x signal output PGA, and 50Ohm output impedance.
6. Very small size: 32mm X 32mm.
