GY-273 QMC5883L Digital Compass Electronic Compass Module Three Axis Magnetic Field Sensor for SmartphoneItem NO.: GY-273
-
Customized Requirements
- Quantity
-
-
- Product Name: GY-273 QMC5883L Digital Compass Electronic Compass Module Three Axis Magnetic Field Sensor for Smartphone
- Item NO.: GY-273
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: QMC5883L , GY-273 , Digital Compass Electronic Compass Module , Three Axis , Magnetic Field Sensor
- Creation Time: 2024-04-13

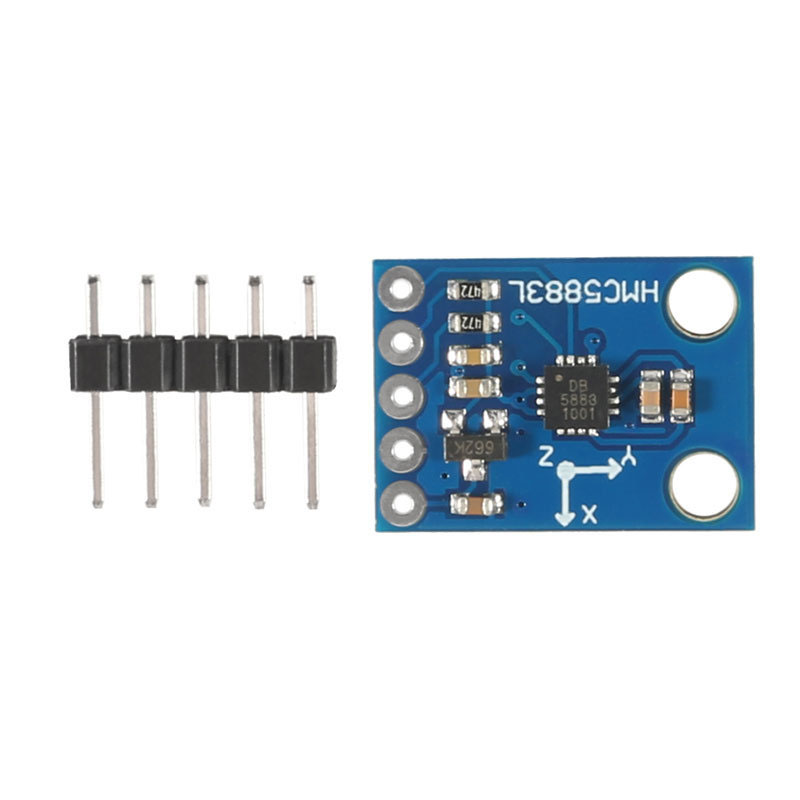

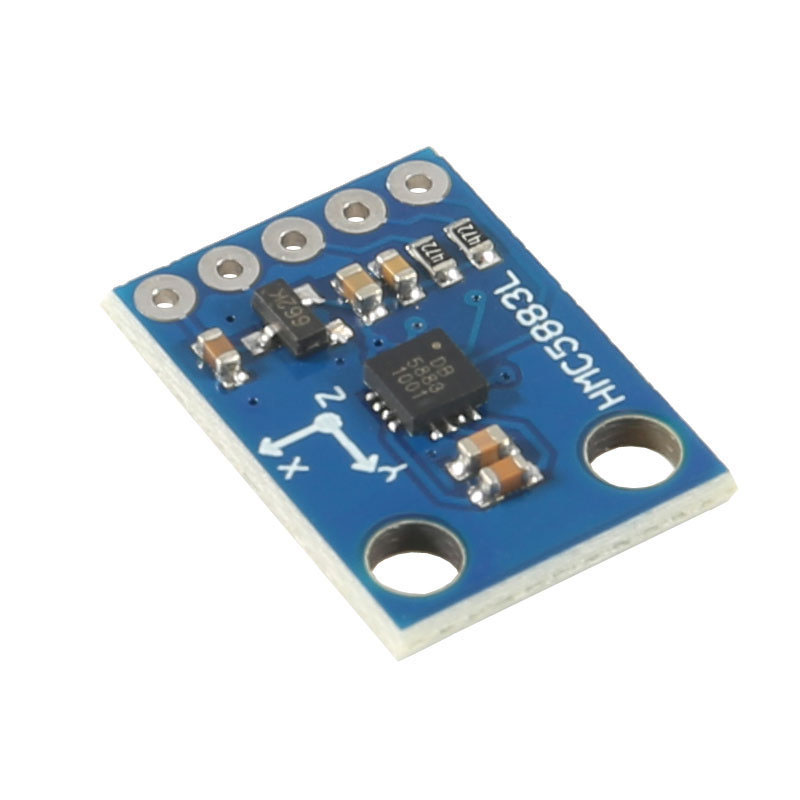

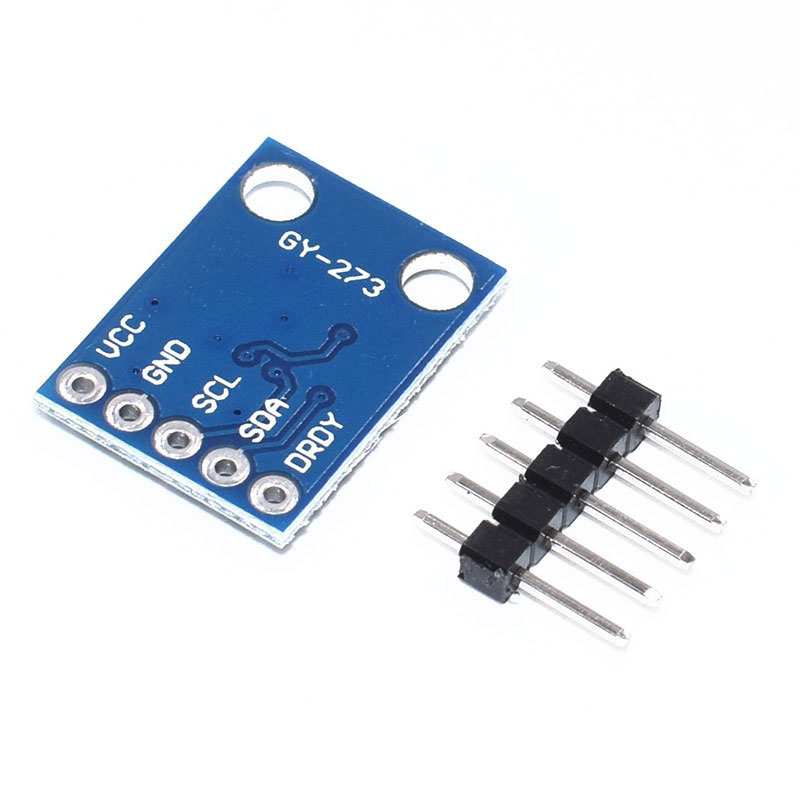

GY-273 QMC5883L Module
3-Axis Magnetic Field Sensor
Product Information:
● Product model: GY-273
● Chip used: QMC5883L
● Power supply voltage: 3-5 V
● Communication mode: IIC communication protocol
● Needle spacing: 2.54mm
● Measuring range: ± 1.3-8 Gauss

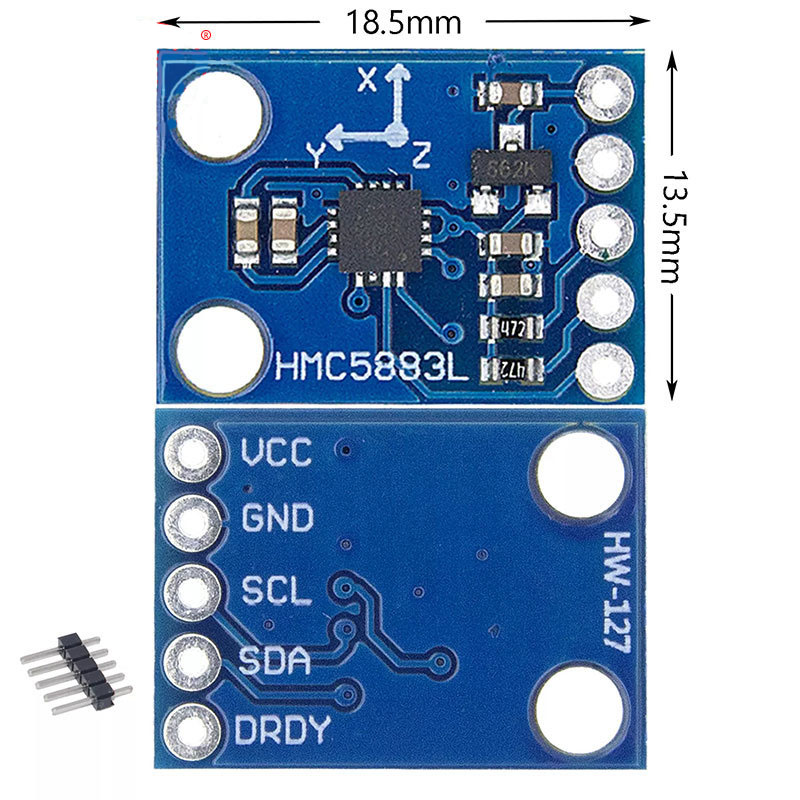

● Size: 13.5 * 18.5mm
1. Small size
2. Calibration free, high accuracy
3. Low power consumption, low cost
Product Features:
● Digital output: 2C digital output interface, very convenient for design and use.
Small size: 3x3x0.9mm LCC package, suitable for mass production.
● High precision: 1-2 degrees, built-in 12 bit A/D, OFFSET, SET/RESET circuits, no magnetic saturation and no cumulative error.
● Support the automatic calibration procedure, simplify the use steps, and the terminal product is very convenient to use.
● Built in self-test circuit, convenient for mass production test, without additional expensive test equipment.
● Low power consumption: power supply voltage 1.8V, power consumption sleep mode -- 2.5 μ A measurement mode -- 0.1mA
Main Applications:
Smartphones, sports watches, hand-held compass, automotive electronics, etc
