BMP390L Digital Atmospheric Pressure Sensor Module Replaces BMP388 BME280 Low Power ConsumptionItem NO.: BMP390L

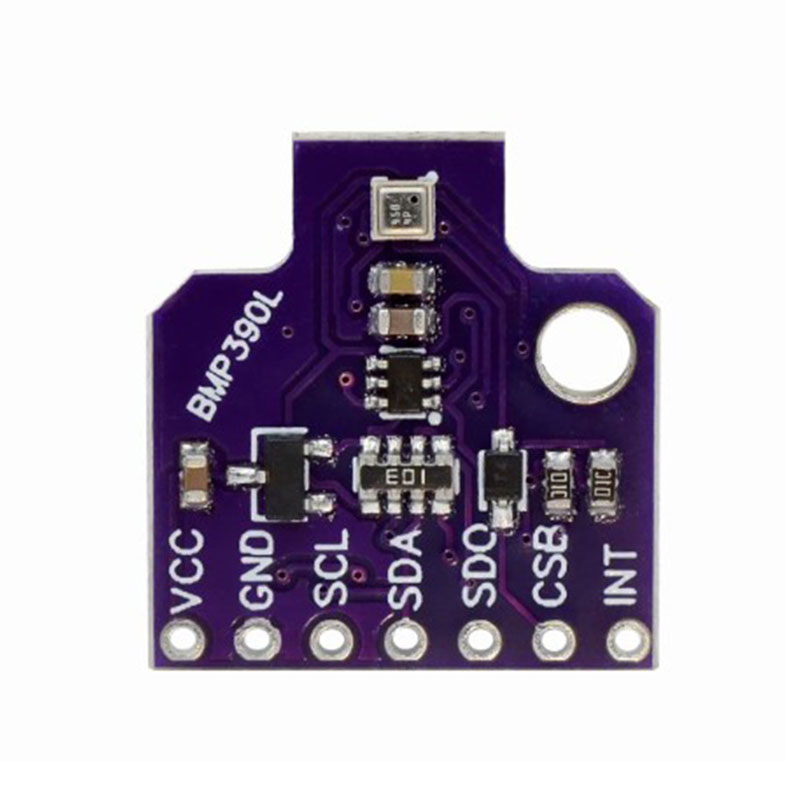

BMP390L Digital Atmospheric Pressure Sensor Module

Product Introduction:

The BMP390L is a newly developed industrial grade dedicated digital air pressure sensor with extremely high temperature stability, low drift, low power consumption (sleep current only 54uA, maximum power consumption measurement mode 650uA), and low noise impact (below 0.02Pa). The maximum absolute accuracy error of this product is less than 50Pa, and the relative accuracy can reach ± 3Pa (equivalent to 25cm), which is 166.7% higher than the previous generation, ensuring the accuracy of measurement. In addition, the long-term stability performance of the new model is also far ahead of the performance of the generation, with a long-term stability error of only 16 Pa in 12 months. Accurate, stable, and low-power high detection makes this product very suitable for applications such as indoor positioning that cannot be covered by GPS signals, and the product has a delivery period of up to ten years, so it can be safely integrated into your device.

Product Characteristics:

● High accuracy (absolute error<50Pa, relative accuracy<3Pa)

● High long-term stability (± 16Pa/year)

● Extremely high temperature stability and low drift characteristics

● Low power consumption (sleep current: 54uA, working current<650uA)

Application Scenario:

1. Vertical speed indication (such as rising/sinking speed)

2. Enhanced GPS navigation (such as improving initial positioning time, dead reckoning, and slope detection)

3. Indoor navigation and positioning (indoor detection, elevator detection)

4. Outdoor navigation, leisure and sports applications

5. Weather forecast

6. Health care applications (such as spirometry)

7. Fitness applications (such as enhanced calorie detection)

8. Augmented reality and virtual reality applications

9. Situational Awareness

10. Industrial Internet of Things Equipment

Technical Specifications:

● Working voltage: 3.3-5V

● Working current: Sleep mode (54uA)/Normal mode (357~650uA)

● Interface mode: I2C/SPI

● I2C address: 0x77 (default address)/0x76 (optional: SDO pin connection GND)

● Pressure sensing range: 300~1250 hPa

● Relative accuracy: ± 0.03hPa (equivalent to 25cm) (@ 700-1100hPa, 25-40 ° C)

● Absolute accuracy: ± 0.50hPa

● Temperature deviation coefficient: ± 0.6Pa/K (@ 900hPa, 25-40 ° C)

● Long term stability: ± 0.16hPa/year

● ODR accuracy: ± 2~± 12%

● Starting time: 2ms

● Operating temperature range: - 40 ℃~+85 ℃ (full precision measurement can be used at 0 ℃~+65 ℃)

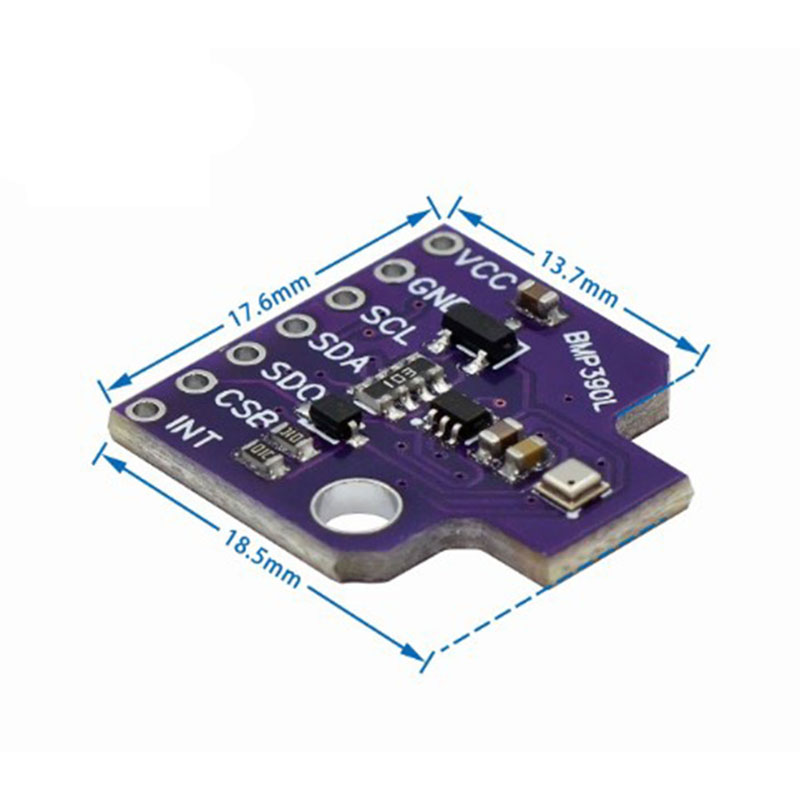

● Module size: 19 * 19 (mm)

Shipping List:

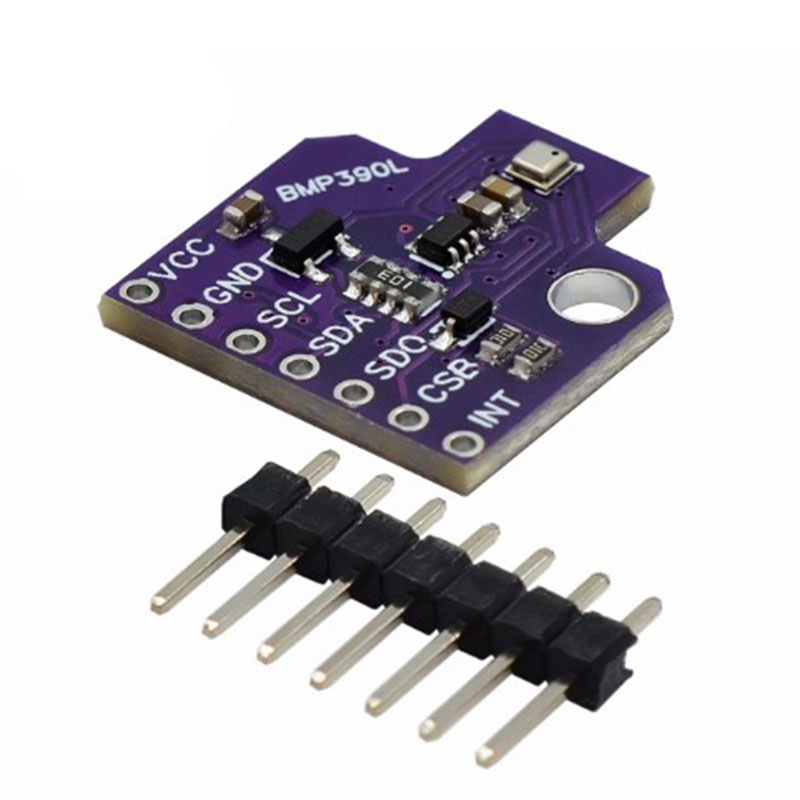

● Fermion: BMP390L digital atmospheric pressure sensor (Breakout) x1

● 2.54-7P black single row pin x1
