HC-SR505 Mini Human Body Sensing Module for Human Body Sensing Light Infrared Automatic Sensing SensorItem NO.: HC-SR505
-
Customized Requirements
- Quantity
-
-
- Product Name: HC-SR505 Mini Human Body Sensing Module for Human Body Sensing Light Infrared Automatic Sensing Sensor
- Item NO.: HC-SR505
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: HC-SR505 , SR505 , Mini Human Body Sensing Module , Human Body Sensing
- Creation Time: 2024-04-12

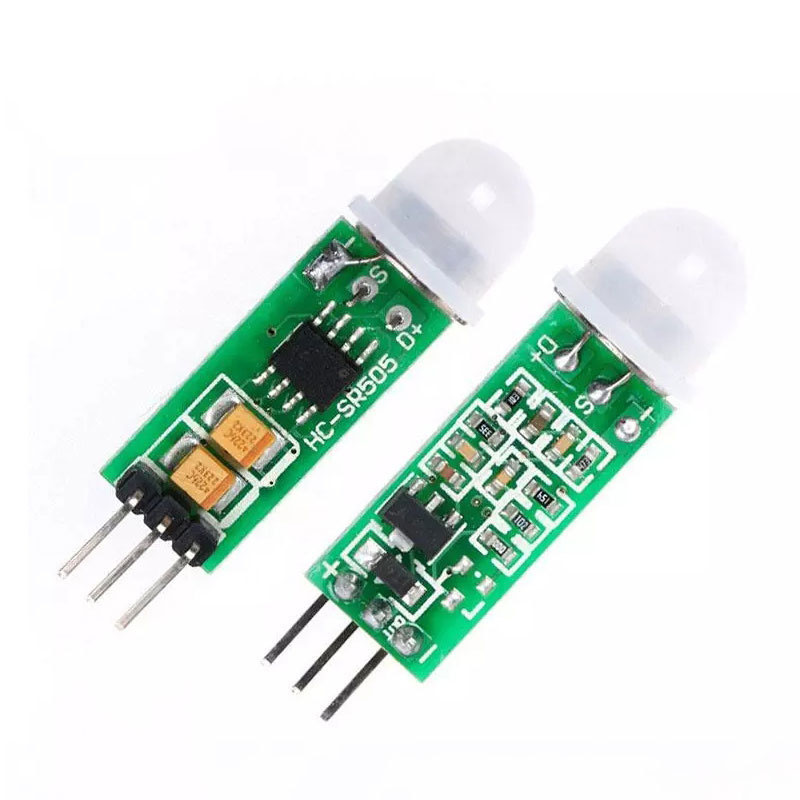

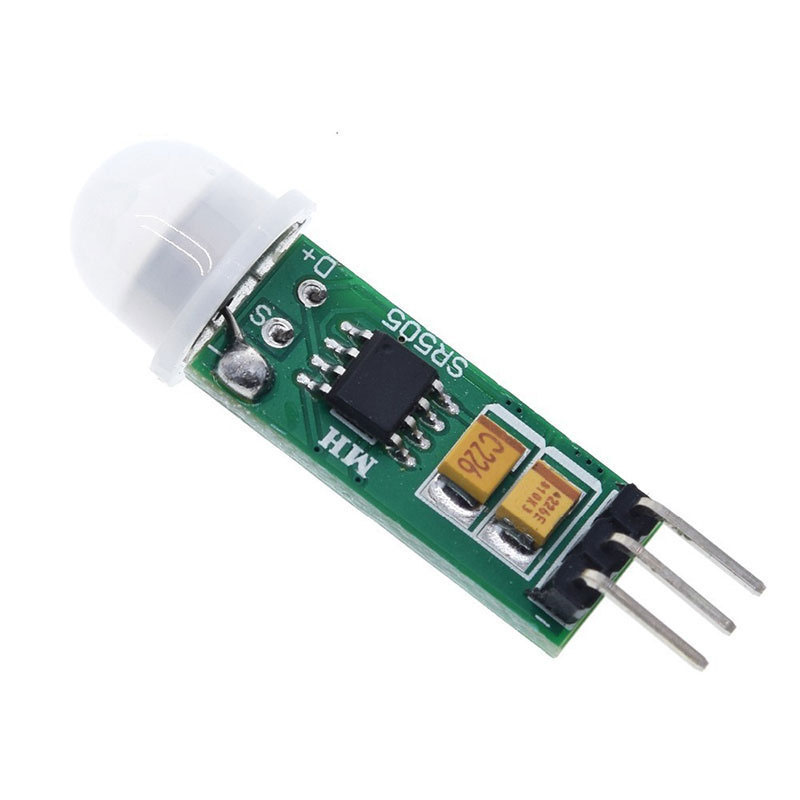

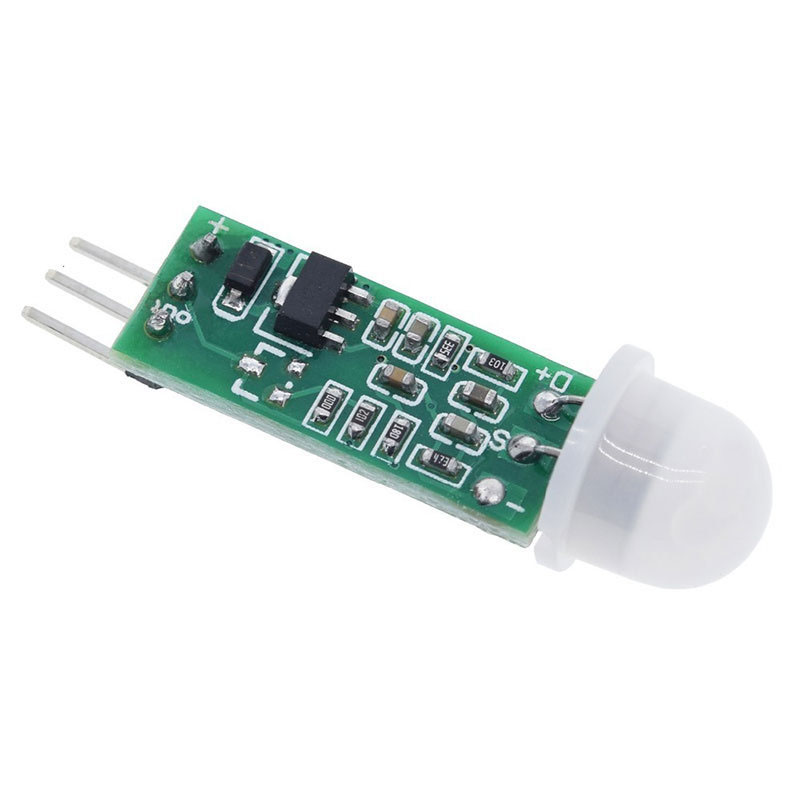

HC-SR505 Mini Human Body Sensor Module
Product Overview:
HC-SR505 small human body sensing module is an automatic control product based on infrared technology, with high sensitivity, high reliability, super small and ultra-low voltage working mode. It is widely used in automatic induction of various electrical equipment, especially battery powered automatic control products.
Technical Parameters:
1. Operating voltage range: DC 4.5-20V
2. Static current:<60uA
3. Output level: high 3.3V/low 0V
4. Trigger: Repeatable trigger (standard)
5. Delay time: standard 8S+- 30% (customizable range: a few tenths to ten minutes)

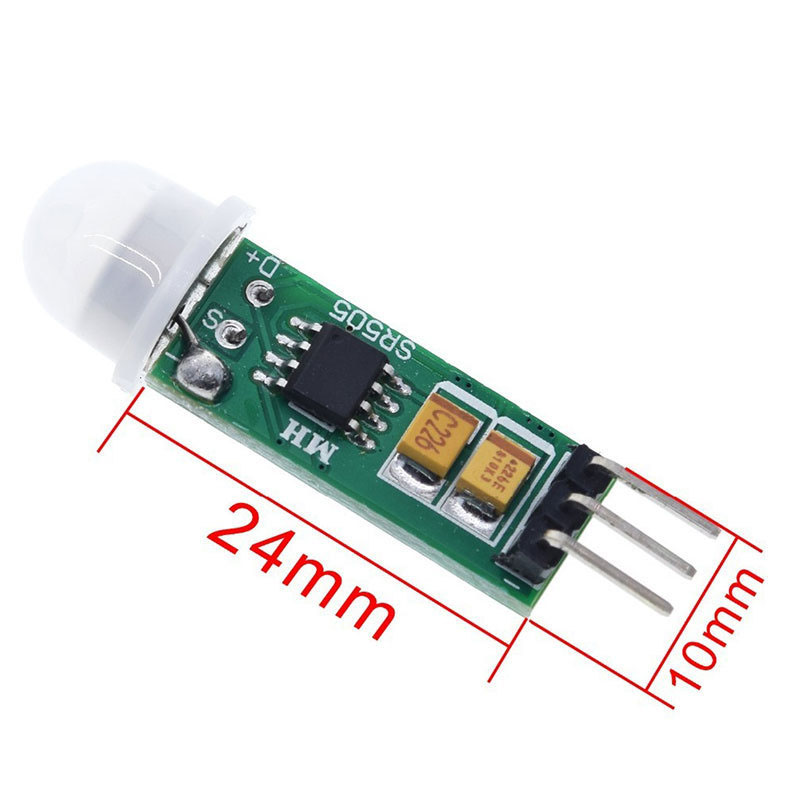

6. PCB size: 10 * 24mm
7. Sensing angle:<100 ° cone angle
8. Sensing distance: 3m
9. Working temperature: - 20 -+80 ℃
10. Sensor lens size: diameter: 10mm (standard)
Product Features:
● Automatic sensing: the output to the sensing area is high, and the sensor range is automatically delayed from high output to low output. Ultra small size.
● Repeated triggering: the sensor outputs high level, and the delay time when someone is active within its sensing range. After the high level variable is delayed, the output will remain high level until someone leaves (the automatic expansion sensor module delays the detection of human body after each activity, and the time of the last event is the starting point of the delay time).
● Wide working voltage range: standard working voltage DC 4.5V-20V.
● Micro power consumption: quiescent current<50 μ A, especially suitable for battery powered automatic control products.
● Output high signal: it is convenient to connect various circuits.
