HC-SR312 Mini Human Body Sensor Module PIR Module Infrared Module Pyroelectric Human Body Infrared Sensor ModuleItem NO.: HC-SR312
-
Customized Requirements
- Quantity
-
-
- Product Name: HC-SR312 Mini Human Body Sensor Module PIR Module Infrared Module Pyroelectric Human Body Infrared Sensor Module
- Item NO.: HC-SR312
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: HC-SR312 , SR312 , Mini Human Body Sensor Module , Infrared Module , Human Body Infrared Sensor Module
- Creation Time: 2024-04-12

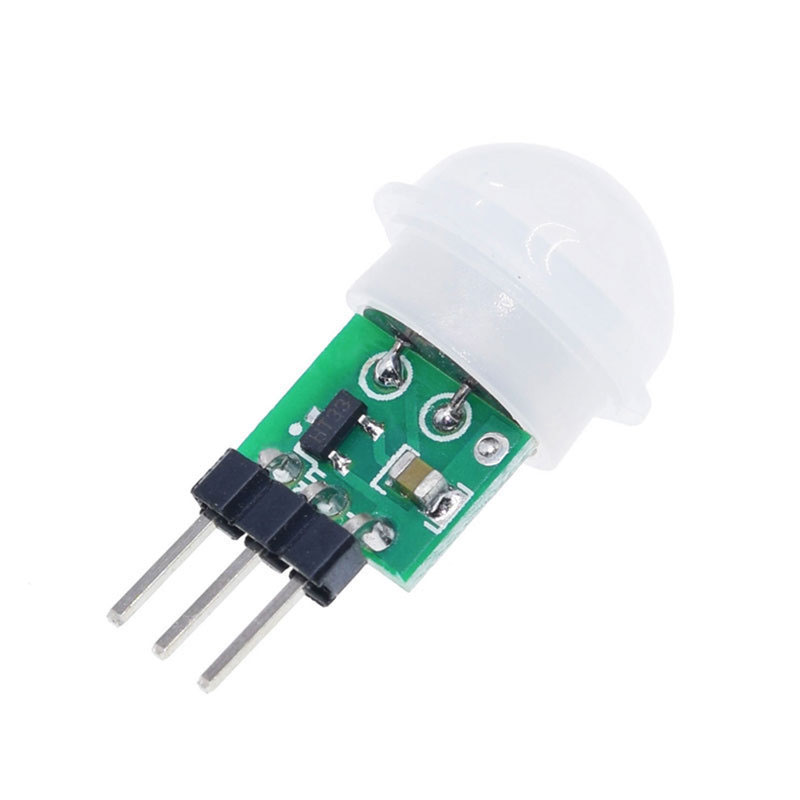

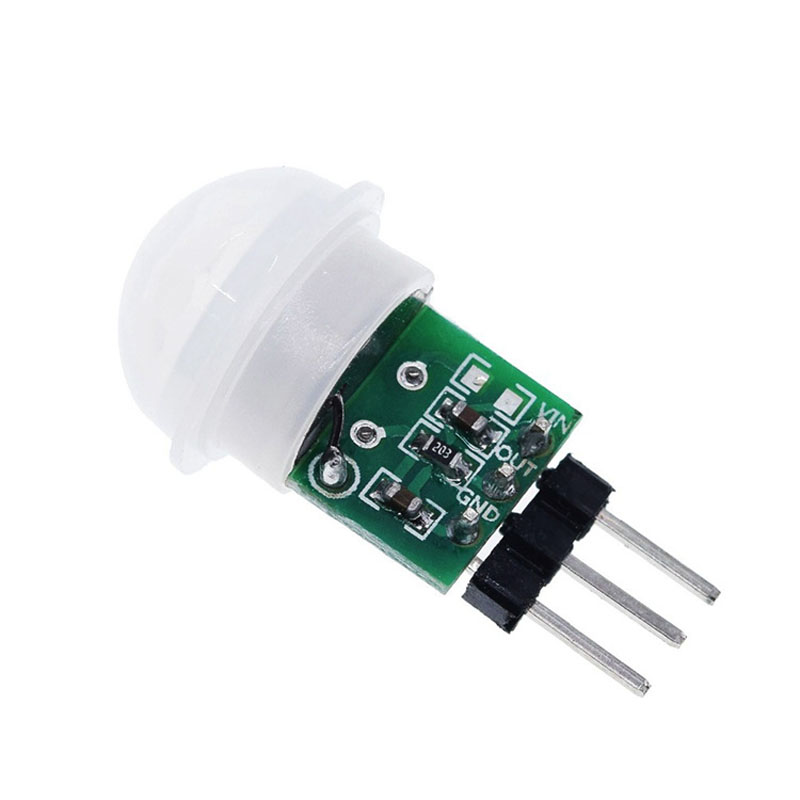

HC-SR312 Human Body Sensing Module
Module Description:
SR312 human body sensing module: it is a digital intelligent automatic control product based on passive human body infrared technology. It has high sensitivity and strong reliability, and is widely used in various automatic inductive electrical equipment.
Technical Parameters:
1. Working voltage: DC 2.7-12V;
2. Static power consumption: ＜ 0.1mA;
3. Delay time: 2 seconds;
4. Blocking time: 2 seconds;
5. Trigger mode: repeatable;
6. Sensing range: ≤ 100 ° cone angle, 3-5 m; (depending on the specific lens)
7. Working temperature: - 20 -+60 ℃

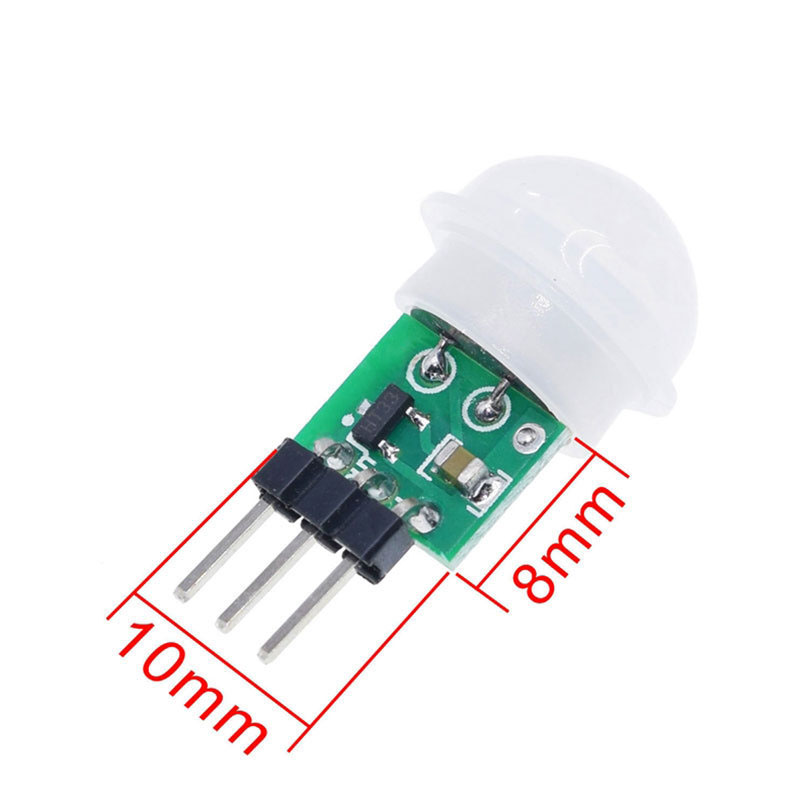

8. Boundary dimension of PCB: 10mm * 8mm
9. Module lens: small lens
Features:
a. The anti-interference is enhanced, and digital signal processing is used internally to directly output high and low levels.
b. Repeatable trigger mode: that is, after the induction output of high level, if a human body moves in its sensing range during the delay period, its output will remain high level until the time delay after the person leaves (that is, the induction module will automatically delay a delay period after detecting each activity of the human body, and the time of the next activity is the starting point of the delay time).
