Bluetooth Audio Digital Power Amplifier Board Cost-Effective Stereo Speaker Power Amplifier Board 2X15W HW-326

Bluetooth Audio Digital Power Amplifier Board Cost-Effective Stereo Speaker Power Amplifier Board 2X15W HW-326Item NO.: HW-326

US$ 10.65
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Bluetooth Audio Digital Power Amplifier Board Cost-Effective Stereo Speaker Power Amplifier Board 2X15W HW-326
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

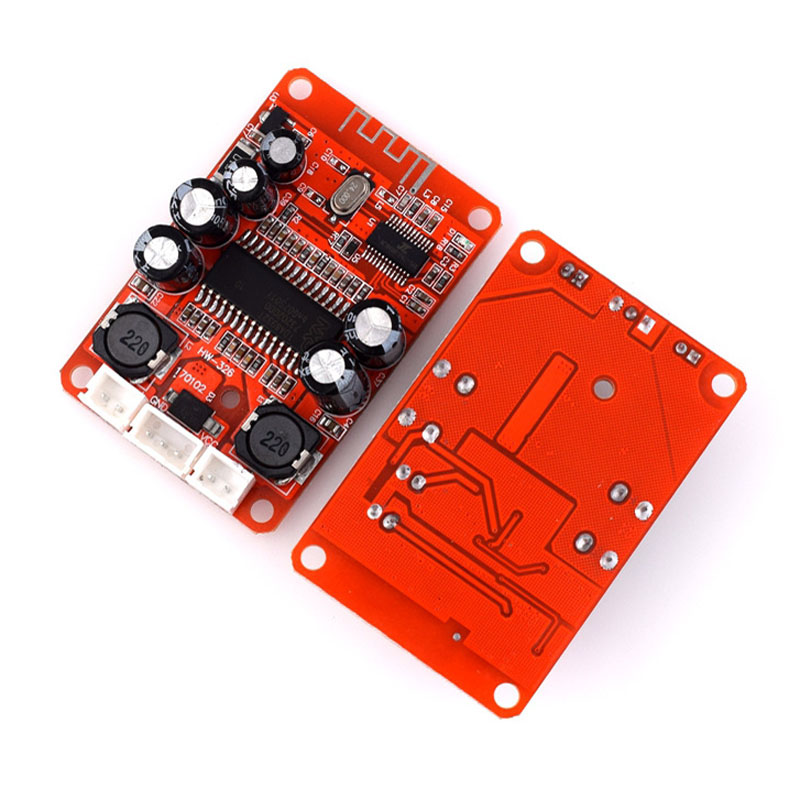

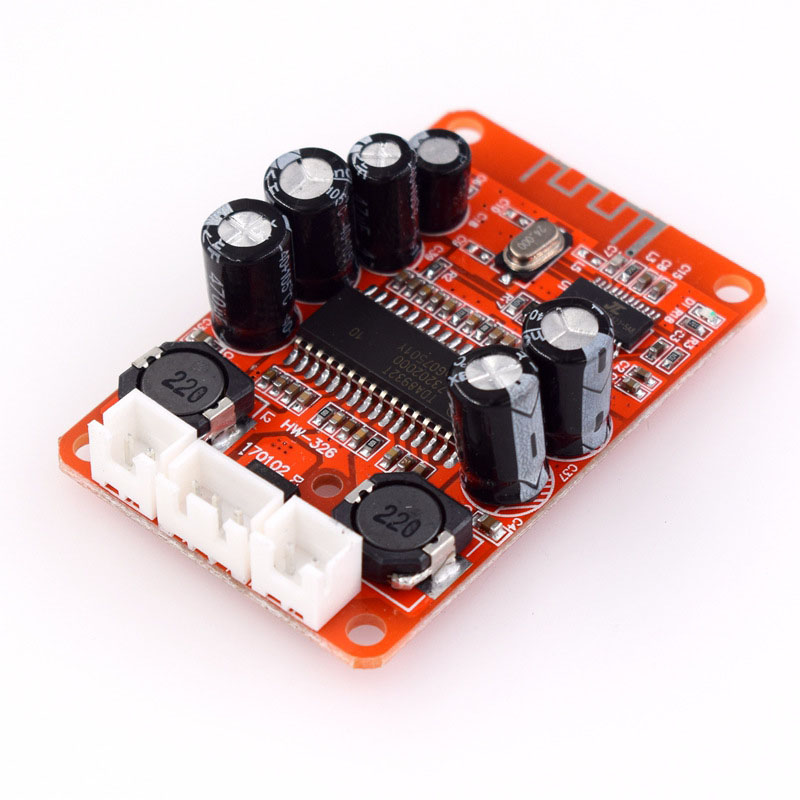

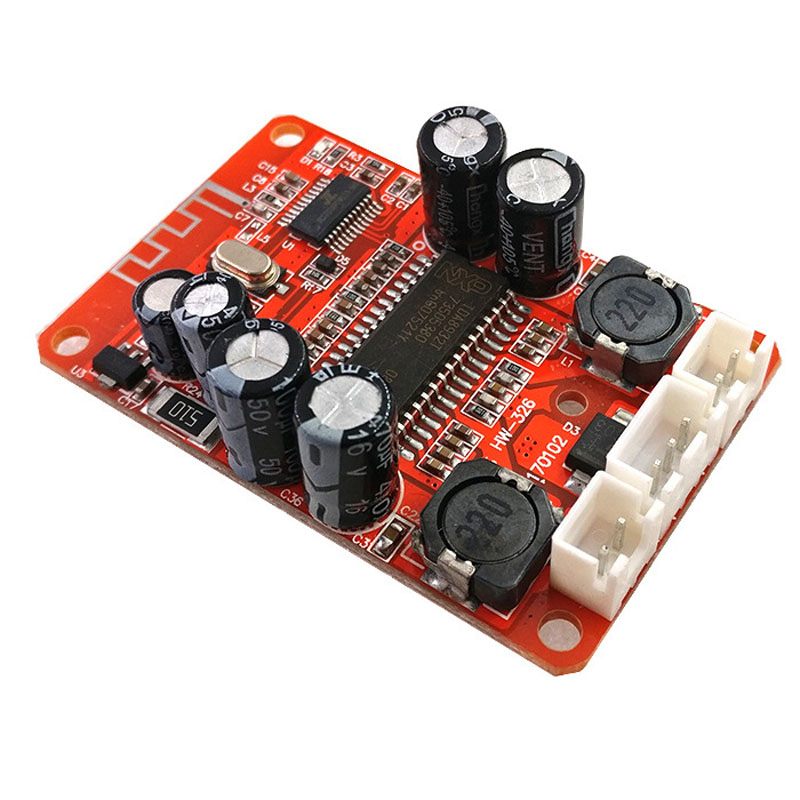

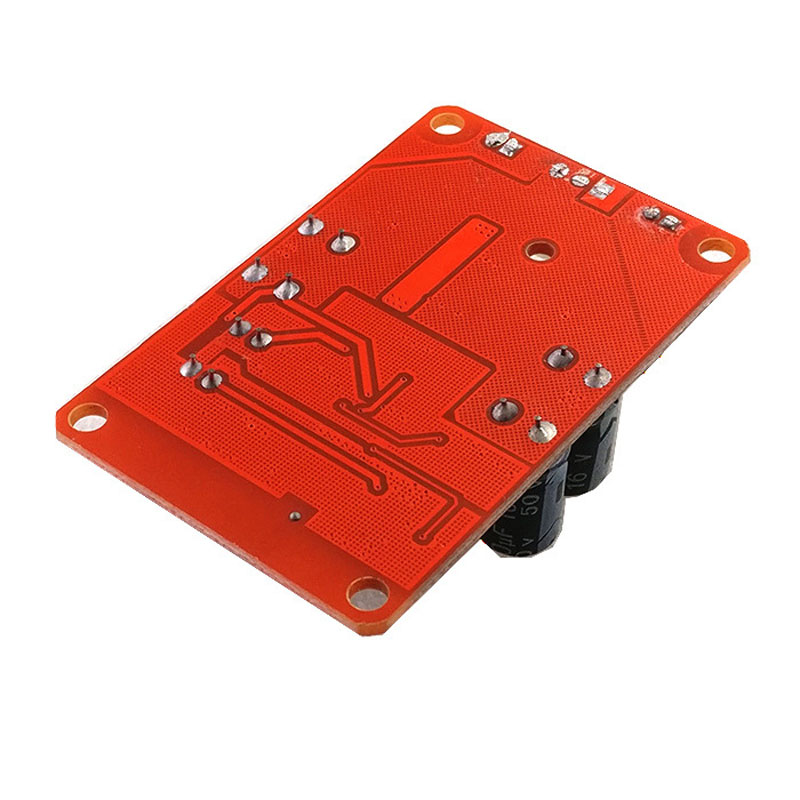

  • Bluetooth Audio Digital Power Amplifier Board



    Features:



    ●Sound quality is very good by using this module.

    ●Convenient and easy operation.

    ●Applicable speaker impedance 4/6/8/16 ohm (8 ohm is the best).

    ●Can be applied to speaker modification, background music speakers and other modifications.



    Specification:



    ●Color: red

    ●Material: Electronic component

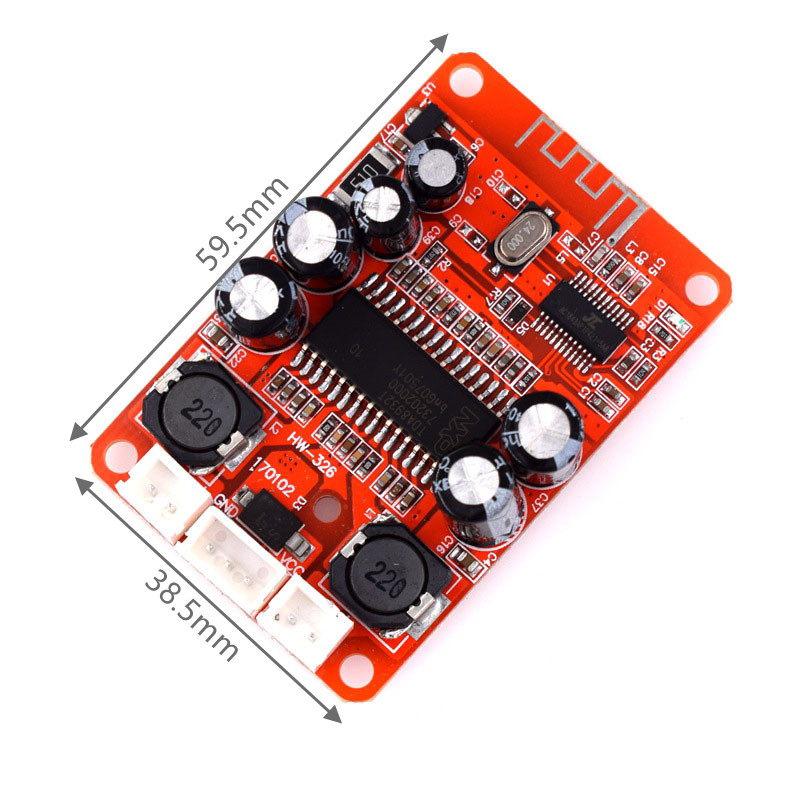

    ●Size: 59.5*38.5*14.5mm

    ●Audio input: wireless Bluetooth

    ●Maximum receiving distance: more than 10 meters

    ●Power output: dual channel 15W+15W

    ●Suitable for impedance: 4, 6, 8, 10 ohm speaker

    ●Supply voltage: 10~18V DC (Recommended 12V DC 2A or above, the actual power of the speaker is not 12V DC 1A power supply)

    ●Power supply interface: 2.54mm pitch 3PIN

    ●Speaker interface: 2.0mm pitch 2PIN



    Package Included:



    1 x Audio Amplifier Board



    Notes:



    1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

    2.Due to the manual measurement and different measurement methods, please allow1~3cm deviati
