- Product Name: Ethernet W5100 Network Expansion Board SD Card Expansion Support MEGA
- Item NO.: Ethernet W5100 R3
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: Ethernet W5100 Network Expansion Board
- Creation Time: 2024-04-18
Ethernet W5100 Network Expansion Board
Product Information:
The Ethernet expansion board allows the controller to connect to the network. It is an expansion board with built-in WizNet W5100 TCP/IP microprocessor. This board is connected to the board through a long pin wire wrap header. You can easily connect to the network using this expansion board by using the Ethernet library program in the IDE. This expansion board supports simultaneous connection of 4 sockets.
And the R3 version of this expansion board also adds a 1.0 standard output port composed of four additional ports: two on the ARFF side and two on the RESET side. There are two ports on the RESET side, one is IOREF, used to adapt the expansion board to the motherboard. Another empty port is reserved for future expansion.
This version adds a slot for a micro-SD card, which has network storage function. In addition, it is fully compatible with the Duemilanove and Mega series. It also has an independent PoE (power over Ethernet) module. This module can be soldered to the motherboard to transmit power through twisted pair cables. This is compliant with the IEEE802.3af standard and compatible with existing PoE modules.
Product Features:
1. Using this Ethernet expansion board, the Arduino board can be used to connect to the internet.
2. Can be used as a server or client.
3. Insert the panel directly without welding.
4. Controller: w5100.
5. This is the latest version of Ethernet Shield.
6. The Arduino Ethernet expansion board based on the Wiznet W5100 Ethernet chip provides you with an easy way to access Arduino Online.
7. Directly compatible with Arduino's official Ethernet library.
8. A micro SD card slot has been added to store files for network services.
9. Compatible with Arduino Duemilanove (168 or 328) and Mega (1280/2560), accessible through the SD library.
10. W5100 provides a network (IP) stack that supports TCP and UDP.
11. Supports up to four concurrent socket connections.
12. Use the Ethernet library to write a sketch of using a shielded connection to the internet.
13. Suitable for Arduino motherboards, 2009, mega 1280, mega 2560.

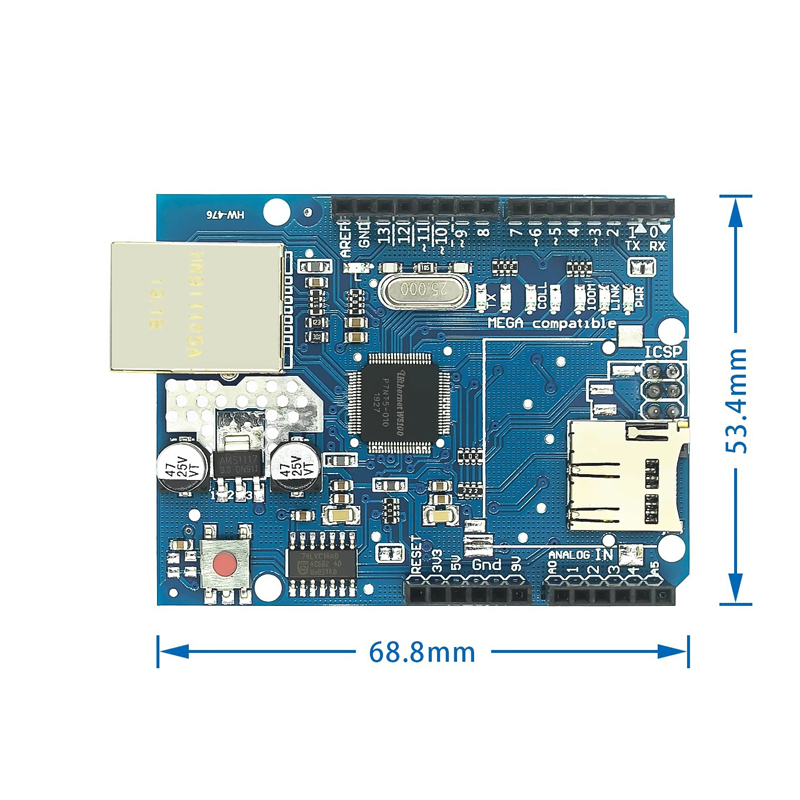

14. Size: 7cm x 5.4cm x 2.4cm
Technical Specifications:
Compatible with Mega2560/Uno rev3 standard output ports
Micro-SD card connector PoE reset controller with active voltage converter function
Compatible with MEGA board
