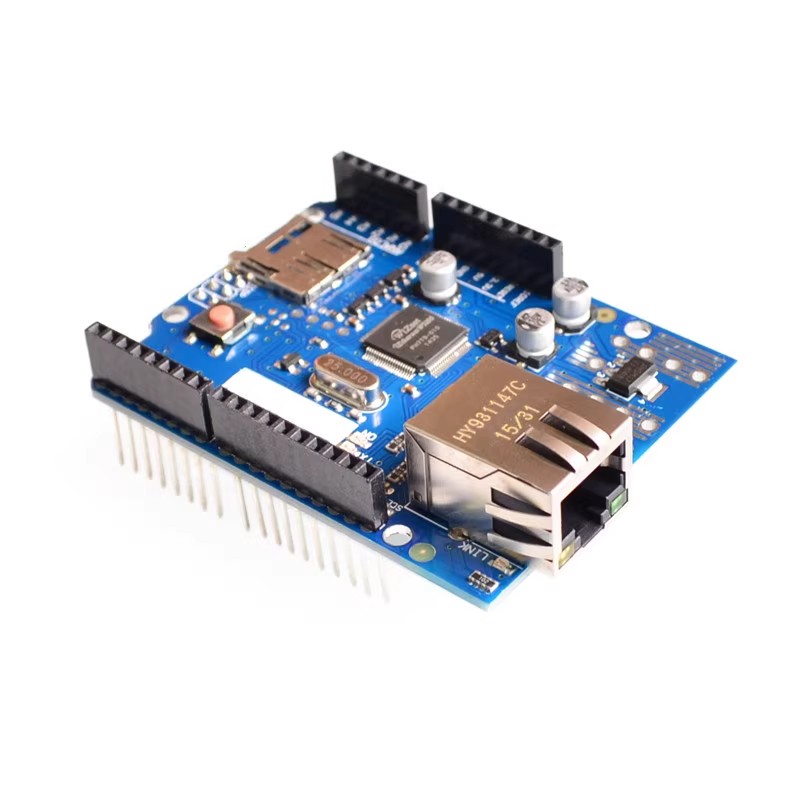

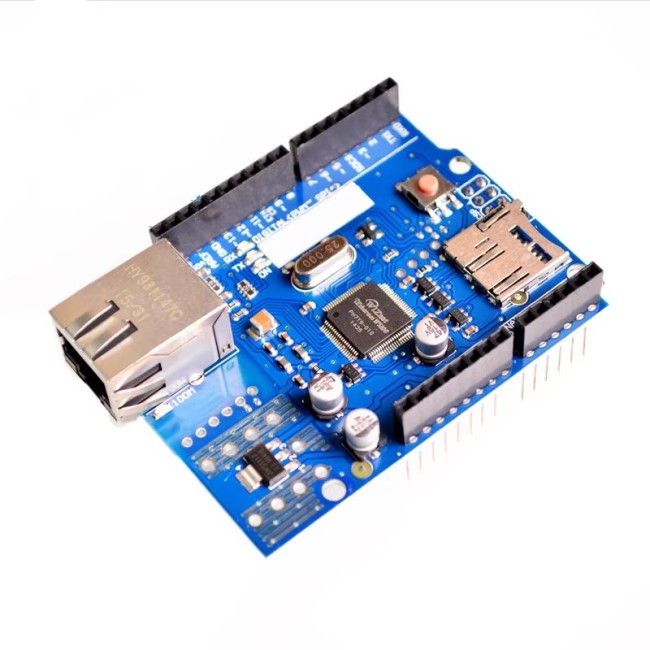

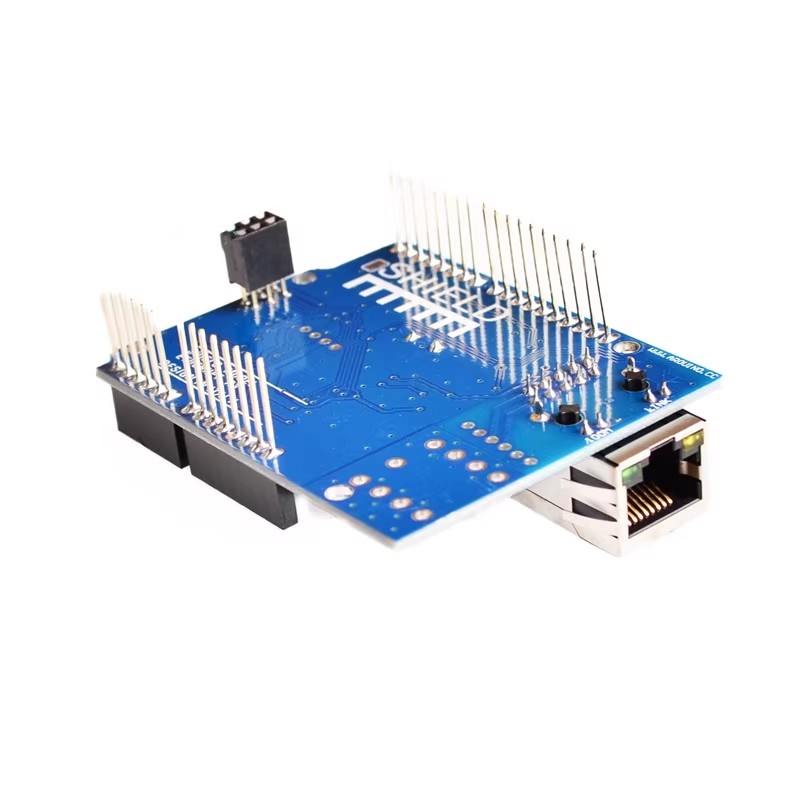

Ethernet W5100 R3 Network Expansion Board Compatible with UNO MEGA Module

Ethernet W5100 R3 Network Expansion Board Compatible with UNO MEGA ModuleItem NO.: Ethernet W5100 UNO MEGA

US$ 13.71
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Ethernet W5100 R3 Network Expansion Board Compatible with UNO MEGA Module
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Ethernet W5100 R3 Network Expansion Board



    Product Description:



    The Ethernet expansion board allows the controller to connect to the network. It is an expansion board with built-in WizNet W5100 TCP/IP microprocessor. This board is connected to the board through a long pin wire wrap header. You can easily connect to the network using this expansion board by using the Ethernet library program in the IDE. This expansion board supports simultaneous connection of 4 sockets.



    And the R3 version of this expansion board also adds a 1.0 standard output port composed of four additional ports: two on the ARFF side and two on the RESET side. There are two ports on the RESET side, one is IOREF, used to adapt the expansion board to the motherboard. Another empty port is reserved for future expansion.



    This version adds a slot for a micro-SD card, which has network storage function. In addition, it is fully compatible with the Duemilanove and Mega series. It also has an independent PoE (power over Ethernet) module. This module can be soldered to the motherboard to transmit power through twisted pair cables. This is compliant with the IEEE802.3af standard and compatible with existing PoE modules.



    Technical specifications:



    Compatible with Mega2560/Uno rev3 standard output port

    Micro-SD card connector PoE reset controller with active voltage converter function

    Compatible with MEGA board
