Home>Electronic Modules>Power Module>DC-DC 150W Booster Module Mobile Car Laptop Power Supply 8-32V to 9-46V High Power

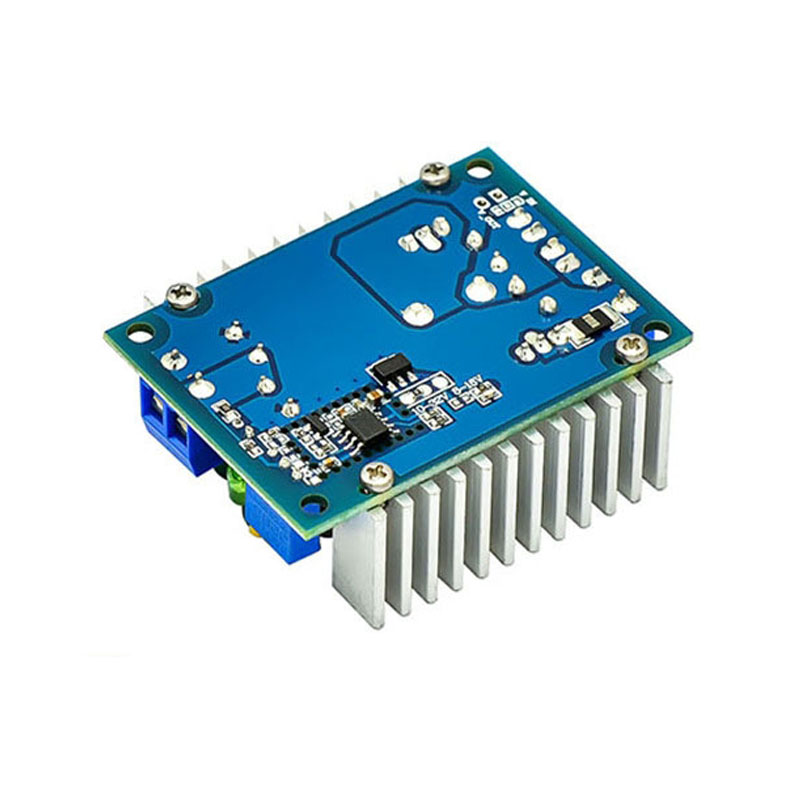

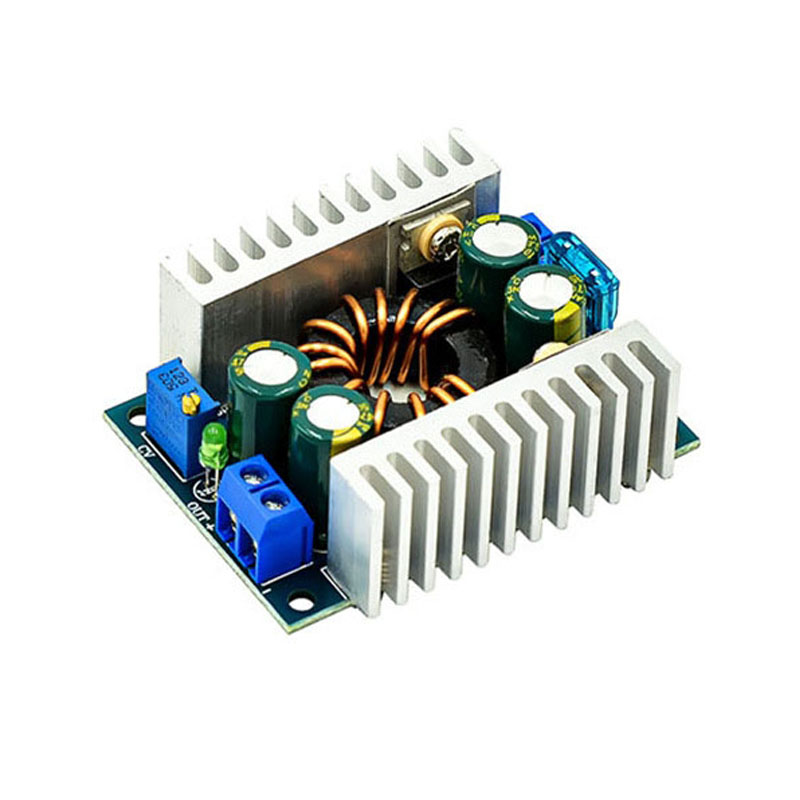

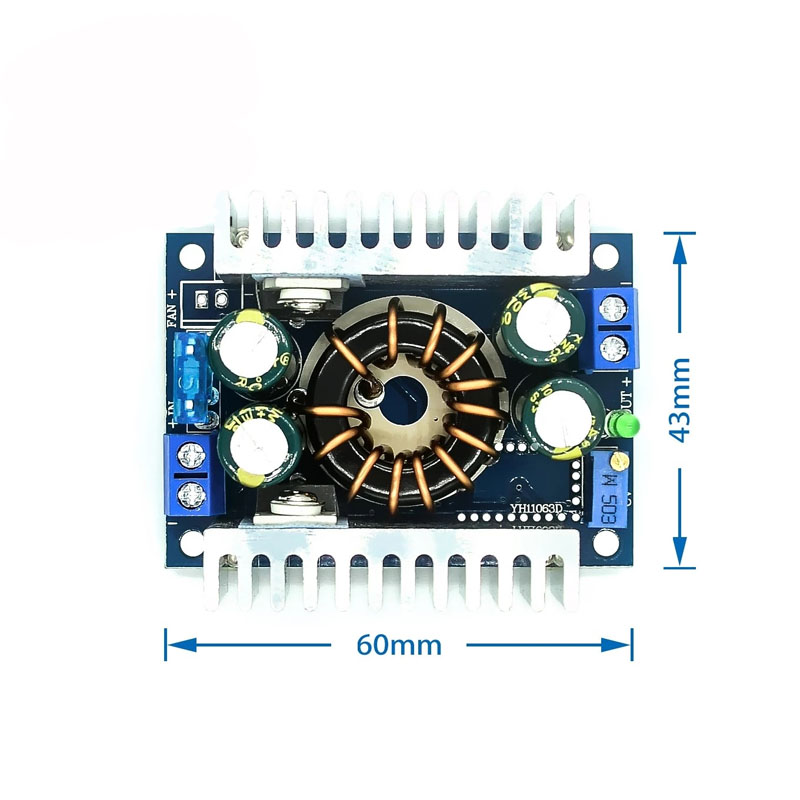

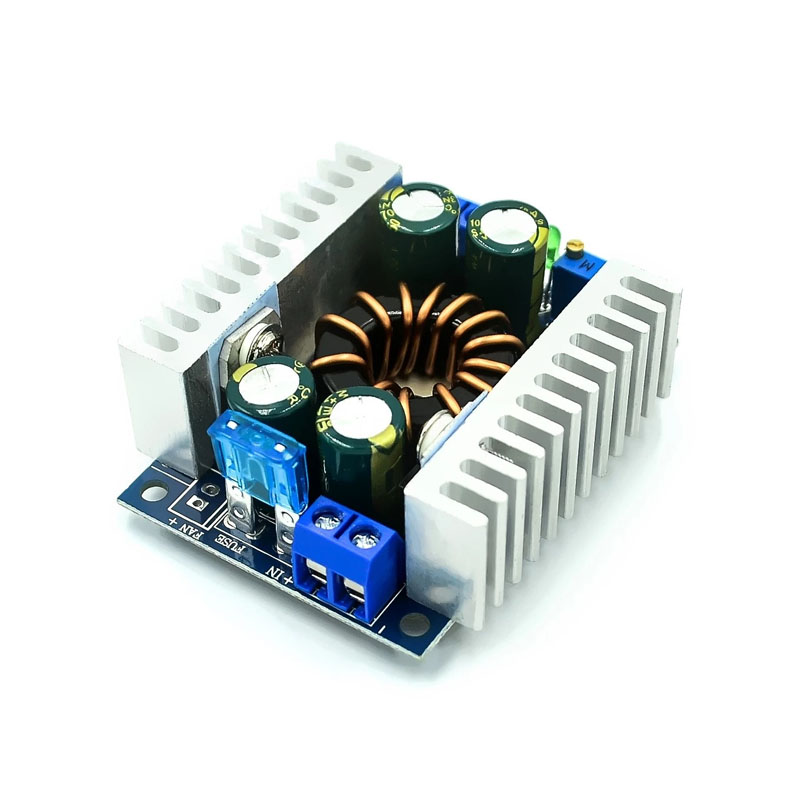

DC-DC 150W Booster Module Mobile Car Laptop Power Supply 8-32V to 9-46V High Power

DC-DC 150W Booster Module Mobile Car Laptop Power Supply 8-32V to 9-46V High PowerItem NO.: DC150W BLUE

US$ 7.03
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
DC-DC 150W Booster Module Mobile Car Laptop Power Supply 8-32V to 9-46V High Power
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • DC-DC 150W Booster Module



    Product specifications:



    Module Name: 150W Booster Module

    Module nature: Non isolated boost module (BOOST)

    Input voltage: Two input voltage ranges are optional (selected through the jumper on the back of the PCB)

    1. 8-16V input (for triple string lithium and 12V battery applications)

    2. 10-32V input (for wide input voltage range applications)

    Input current: 16A (MAX) If it exceeds 8A, please strengthen heat dissipation

    Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the higher the static current will increase)

    Output voltage: 9-46V continuously adjustable

    Output current: 8A MAX. If it exceeds 4A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)

    Output power: Natural heat dissipation 90W, enhanced heat dissipation 150W

    Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

    Working frequency: 150KHz

    Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and voltage difference)

    Short circuit protection: Yes (input 15A fuse)

    Input reverse protection: none, (if necessary, please input a diode in series)

    Installation method: 4 3mm screws

    Wiring method: The wiring terminals are solderless for output, and the outer shell is soldered for output. (V-IN as input, V-OUT as output)
