Customized Requirements
- Quantity
-
-
- Product Name: Step Down Module 24v/12v to 5v5A Car Voltage Reducer 4USB Phone Charging
- Item NO.: MK03229
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Step Down Module , 24v/12v to 5v5A , Car Voltage Reducer , 4USB Phone Charging
- Creation Time: 2024-05-13

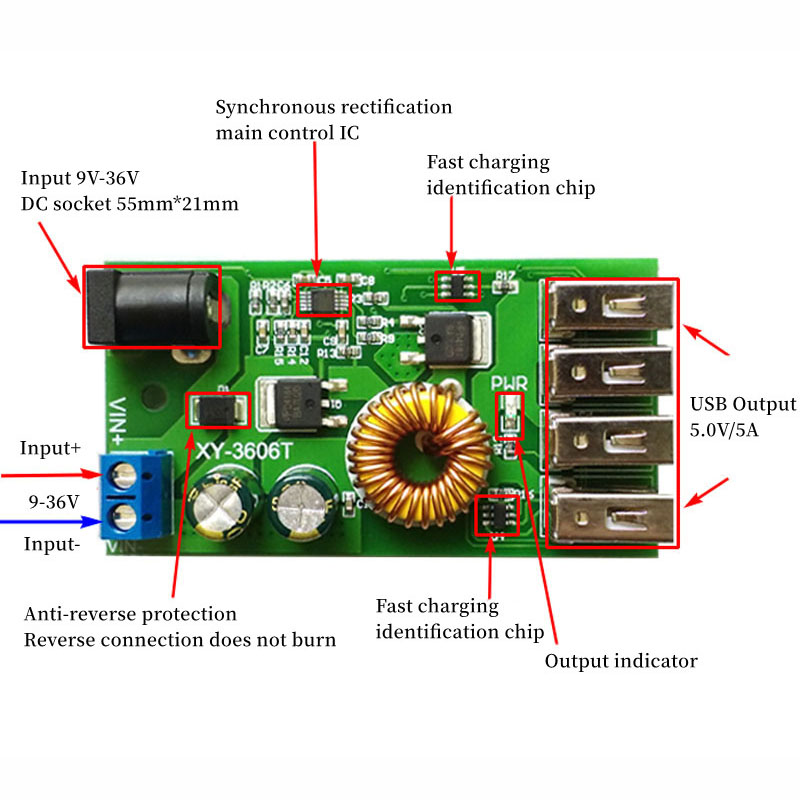

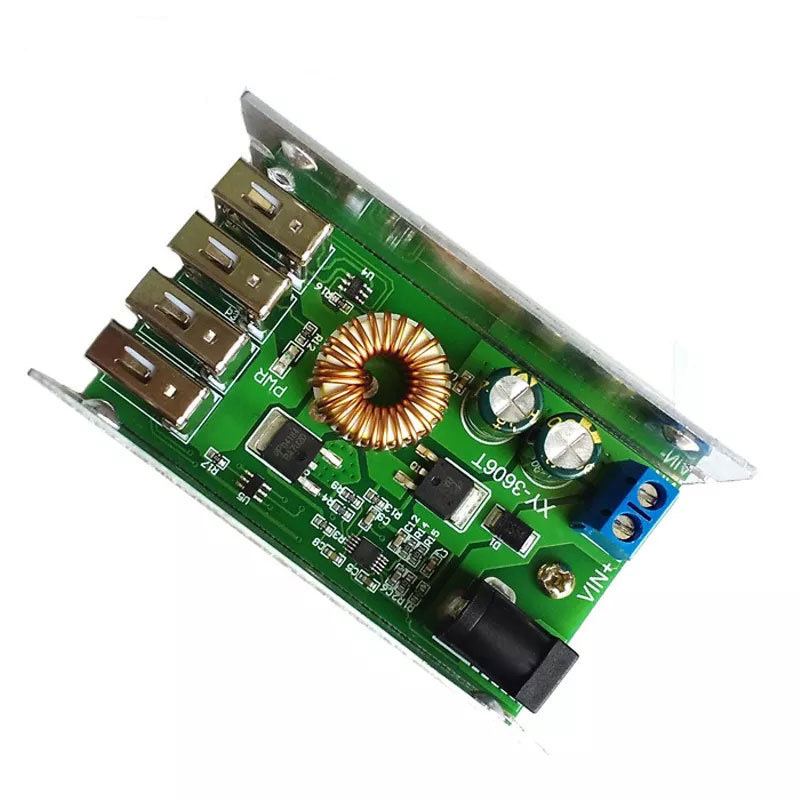

DC-DC Step Down Power Supply Module 4 USB
Product Highlights:
1. Synchronous rectification scheme, wide voltage, high current, and high efficiency;
2. With wiring terminals and DC plugs, it is very convenient to use;
3. 4 USB ports, all with fast charging recognition chip compatible with Android iPhone

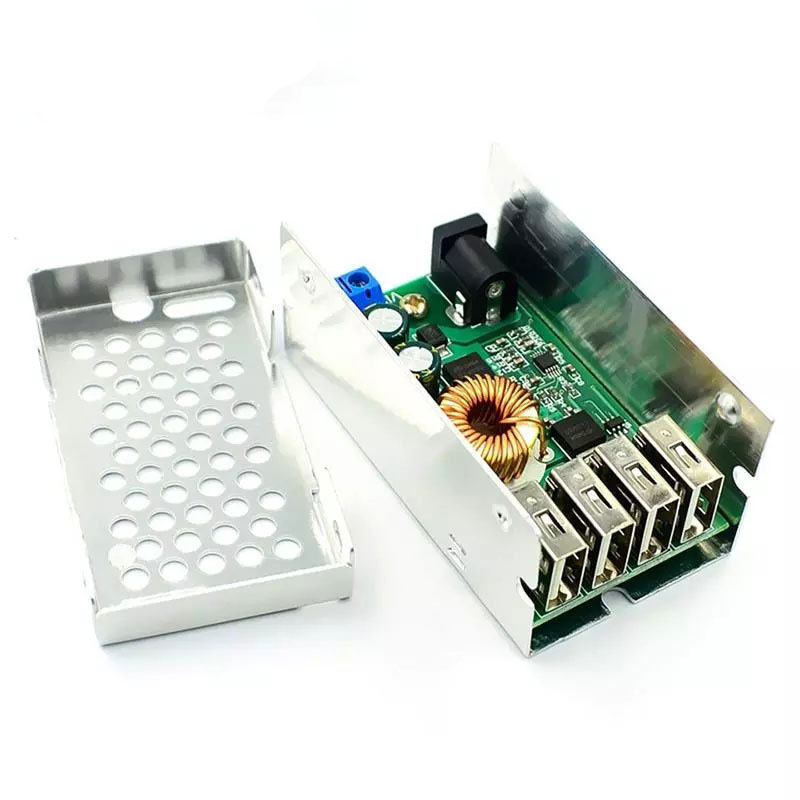

4. With exquisite aluminum casing, it is easy to use.
Product Parameters:
1: Working voltage: DC 9V -36V;
2: Equipped with input reverse protection and output short circuit protection;
3: Output voltage: 5.2V/5A/25W (total output current of 4 ports)
4: Output capacity:
9-24V input: output 5.2V/6A/30W
24-32V input: output 5.2V/5A/25W
32-36V input: output 5.2V/3.5A/18W
5: Size: 70 * 40 * 30cm (length * width * height)
6: Weight: 57g
Purpose:
This module can be used for DIY modification of cars, motorcycles, mobile power batteries, and other modified USB charging ports, to charge appliances with USB charging ports for mobile phones, MP3s, and other devices. It has high efficiency and is widely used!
Attention:
It's not that if the power module has a 5A current, there will be a 5A current to charge the phone. The charging current is determined by the power supply IC inside the phone.
Why is the output 5.2V instead of 5V. The output is just 5V, and there is a voltage drop on the data line during charging. When it reaches the phone, it is only around 4.7V. The phone's charging management software will activate slow charging mode when the input voltage is not 5V. If the output voltage is 5.2V, the above situation will not occur.
