DC-DC High-power Adjustable Boost Module 3.0-35V Rise 3.5-35V 100W With Digital Display VoltmeterItem NO.: DCDC100W
-
Customized Requirements
- Quantity
-
-
- Product Name: DC-DC High-power Adjustable Boost Module 3.0-35V Rise 3.5-35V 100W With Digital Display Voltmeter
- Item NO.: DCDC100W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: High-power , 100W , DC-DC , Adjustable Boost Module , 3.0-35V Rise 3.5-35V , Digital Display Voltmeter
- Creation Time: 2024-04-10

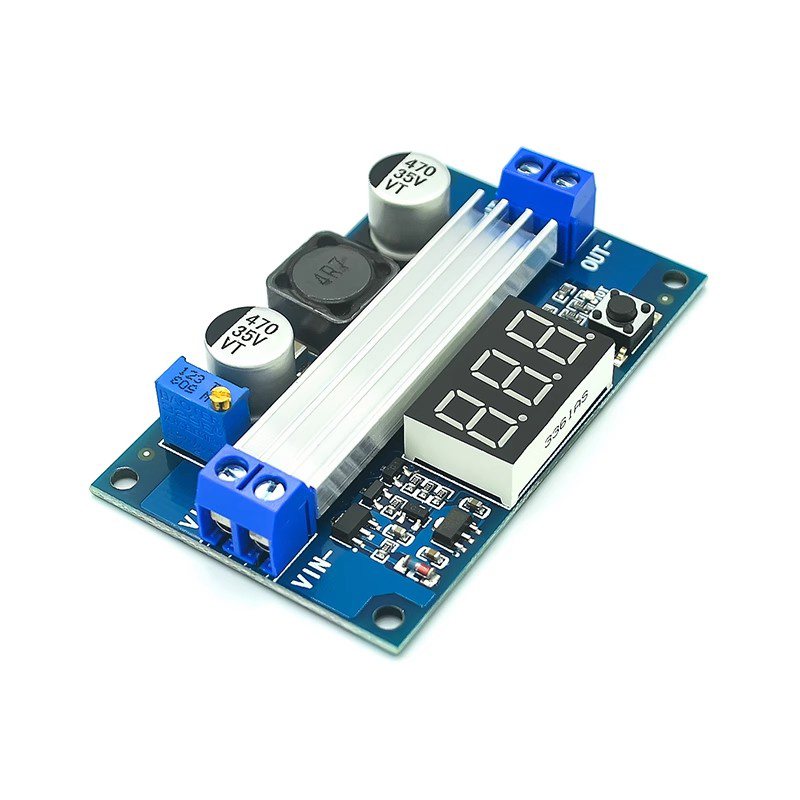

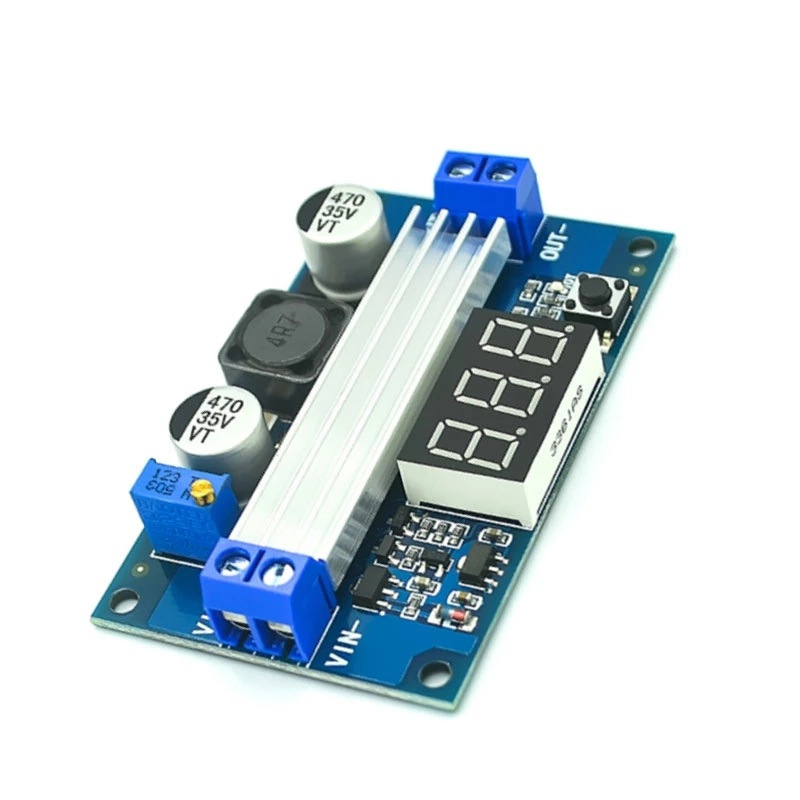

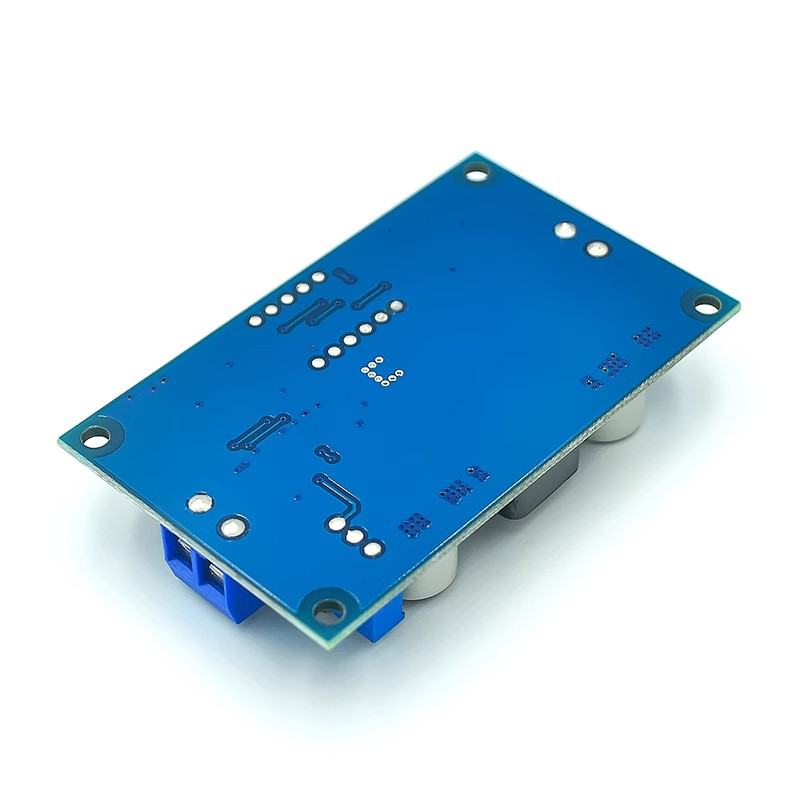

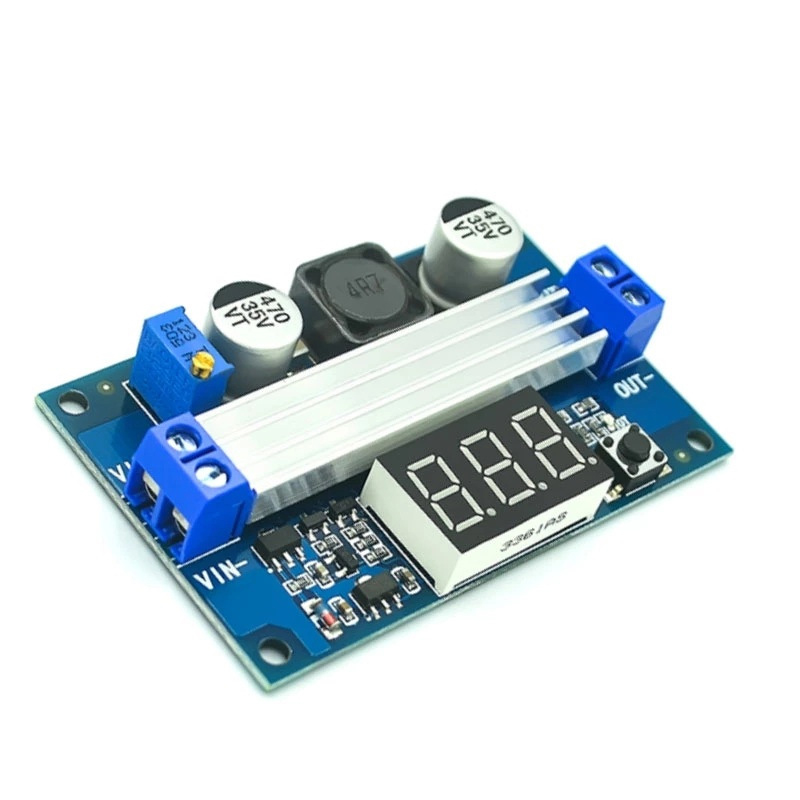

DC-DC High power Adjustable Boost Module 100W
Performance parameters:
1. Input voltage: 3-35V DC (note: if the input voltage is less than 4V, the onboard voltmeter will fail)
2. Input current: 9A (max)
3. Output voltage: 3.5-35V DC (this board is a boost board, and the output voltage should be>=input voltage)
4. Output current: 6A (max)
5. Output power: 75W (up to 128W when both input and output voltages are greater than 20V)
6. Conversion efficiency: 96.7%
7. Output ripple: 24mV (TYP)
8. Range of onboard voltmeter: 4~40V, error+-0.1V
9. Short circuit protection: Yes (limited current 14A). Kind reminder: When connecting to high-power loads, it is recommended to start the machine first before connecting to the load due to the high impact current of current limiting and self-locking protection when starting the machine.
10. Input reverse protection: None (please connect a high current diode in series with the input if necessary).
11. Length x width x height=67 * 43 * 12MM (excluding copper pillars)
