48V Adjustable Step Down Module DC-DC LM2596HVS Input 4.5-48v Electric Vehicle Voltage Stabilizer Power SupplyItem NO.: LM2596HVS
-
Customized Requirements
- Quantity
-
-
- Product Name: 48V Adjustable Step Down Module DC-DC LM2596HVS Input 4.5-48v Electric Vehicle Voltage Stabilizer Power Supply
- Item NO.: LM2596HVS
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC-DC , 48V , Adjustable Step Down Module , LM2596HVS , Input 4.5-48v , Electric Vehicle Voltage Stabilizer Power Supply
- Creation Time: 2024-04-10

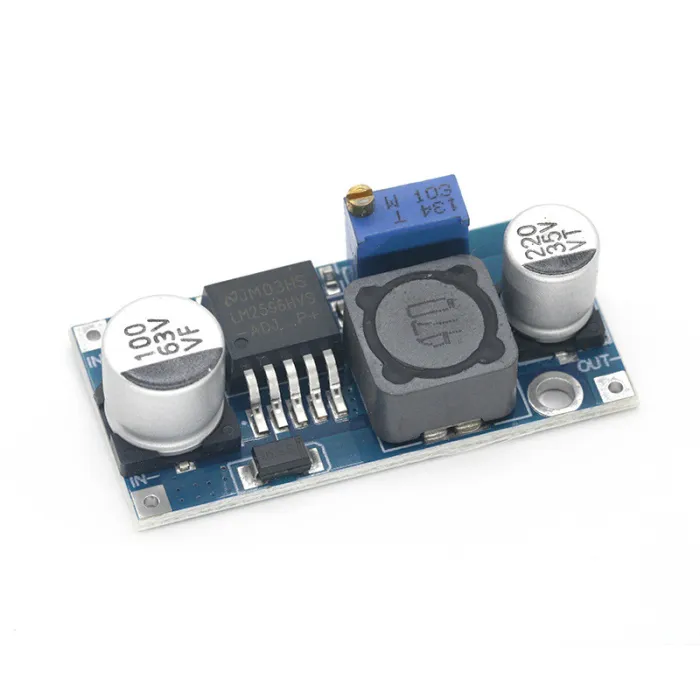

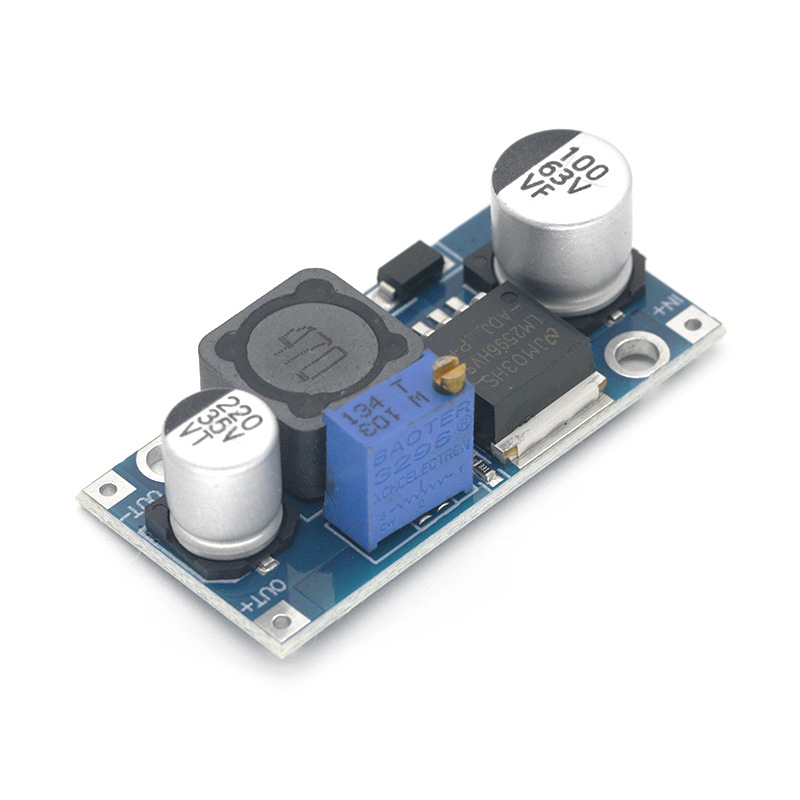

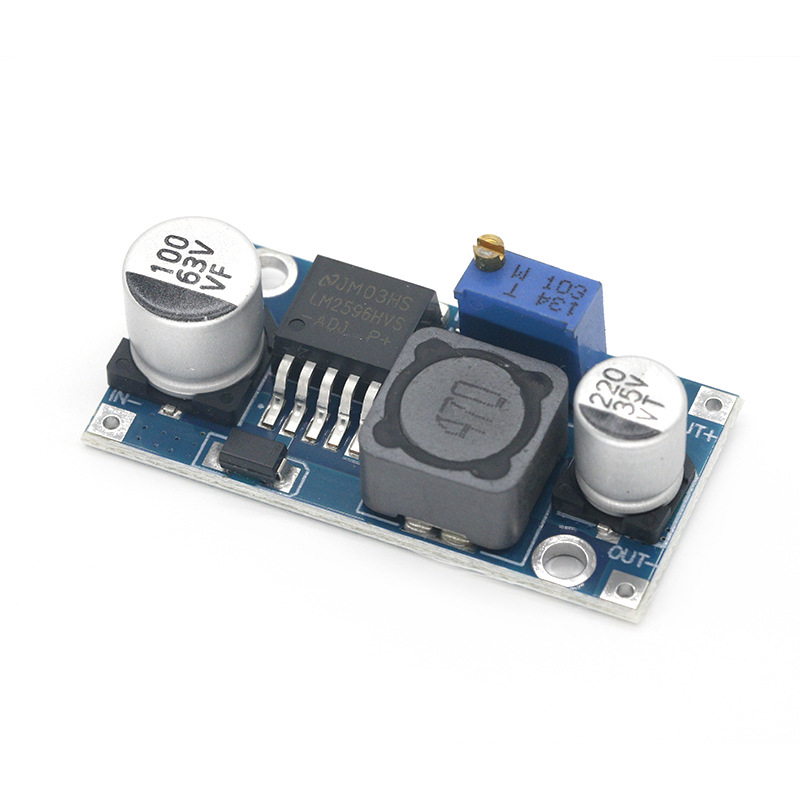

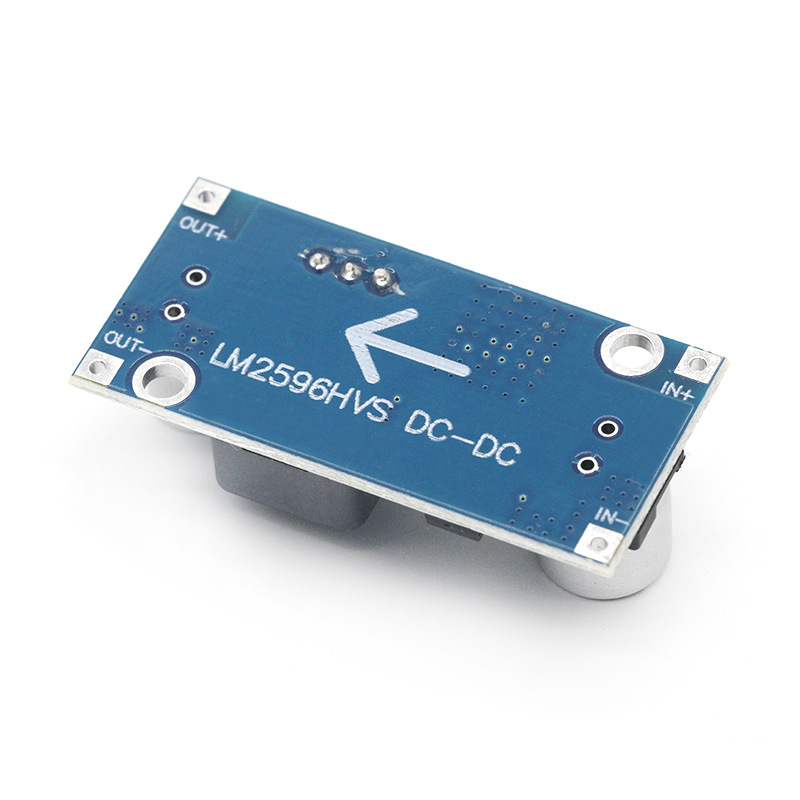

48V Adjustable Step Down Module DC-DC LM2596HVS
Product Information:
● Model/Name: LM2596HVS DC-DC Step-down Module
● Input voltage: 4.5V~53V (note that 53V is the limit value and cannot be exceeded)
● Output voltage: 3V~40V
● Output current: 3A (maximum)
● Conversion efficiency: 92% (highest)
● Output ripple:<30mV
● Switching frequency: 150KHz
● Adjustment mode: first connect the input power correctly (between 4-50V), then monitor the output voltage with a multimeter and adjust the potentiometer
● Operating temperature: -45 ℃~+85 ℃
● Size: 43mm * 21mm * 14mm (length * width * height)
Note: This is a step-down module, and the input voltage is higher than the output voltage. If the output current is greater than 2.5A (or the output power is greater than 10W), please add a heat sink for long-term operation.
