DC Motor Speed Regulator 12V24V36V48V High-power Drive Module PWM Controller 20A Current Regulator

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: DC Motor Speed Regulator 12V24V36V48V High-power Drive Module PWM Controller 20A Current Regulator
- Item NO.: MK00088
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 20A , DC Motor Speed Regulator , 12V24V36V48V , High-power Drive Module , PWM Controller , Current Regulator
- Creation Time: 2024-04-09

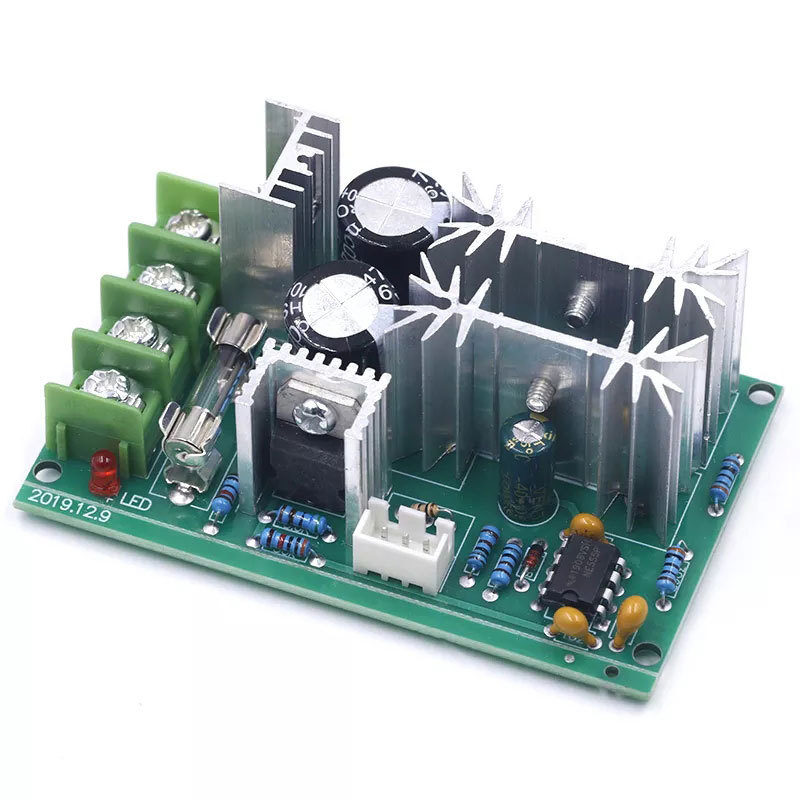

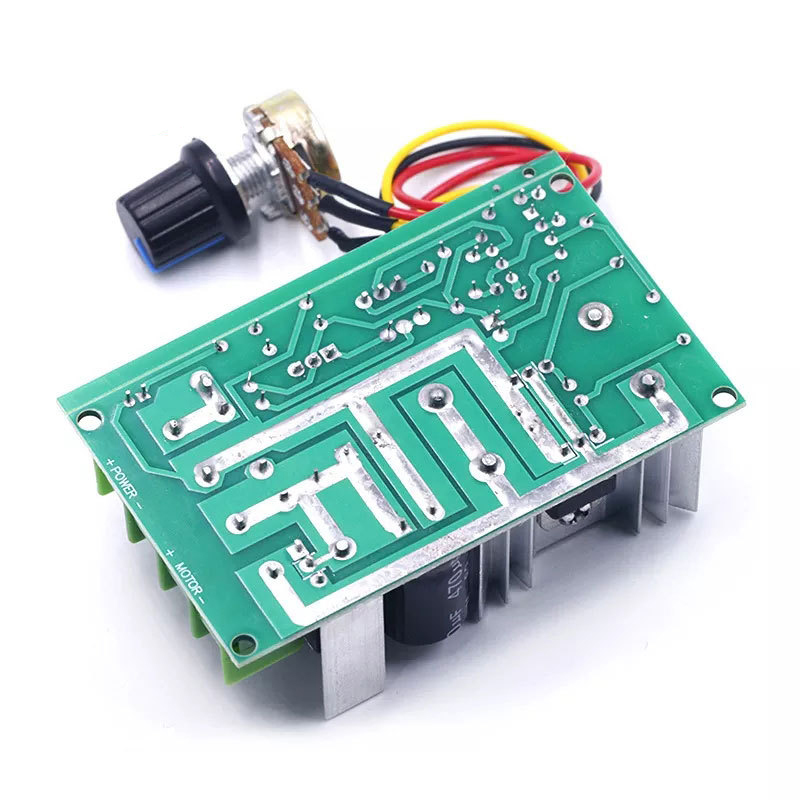

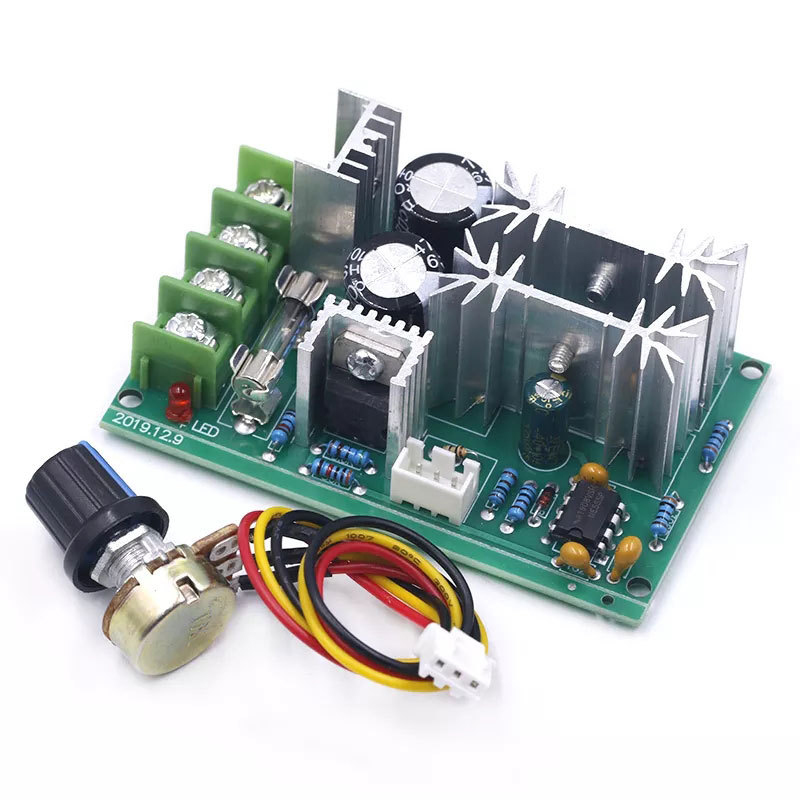

20A DC Motor Speed Regulator

Technical indicators:

● Input voltage: DC10-60V

● Output voltage: linear under load

● Output limit current: 20A (long-term use of 10A, within 450W, pay attention to maintaining smooth heat dissipation conditions of the module)

● Ultimate power: 1200W

● Speed regulation type: current regulation

● Speed regulation method: potentiometer (linear)

● Speed regulation duty cycle range: 0——

● Control frequency: 25KHZ

● Wiring type: fence type terminal blocks

● Knob wire length: 20CM

● Module size: length * width * height 77MM * 45MM * 28MM

● Product net gain: 73 grams

● Main board installation size: length * width 73MM * 40MM

● Potentiometer mounting hole: 7MM
