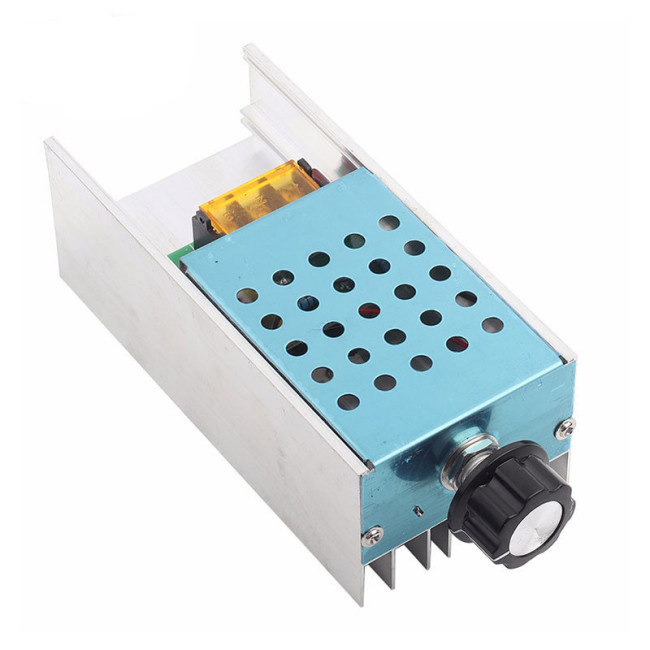

6000W Imported High-Power Silicon Controlled Voltage Regulator Light Speed Temperature Regulating With ShellItem NO.: BTA41600B-6000W

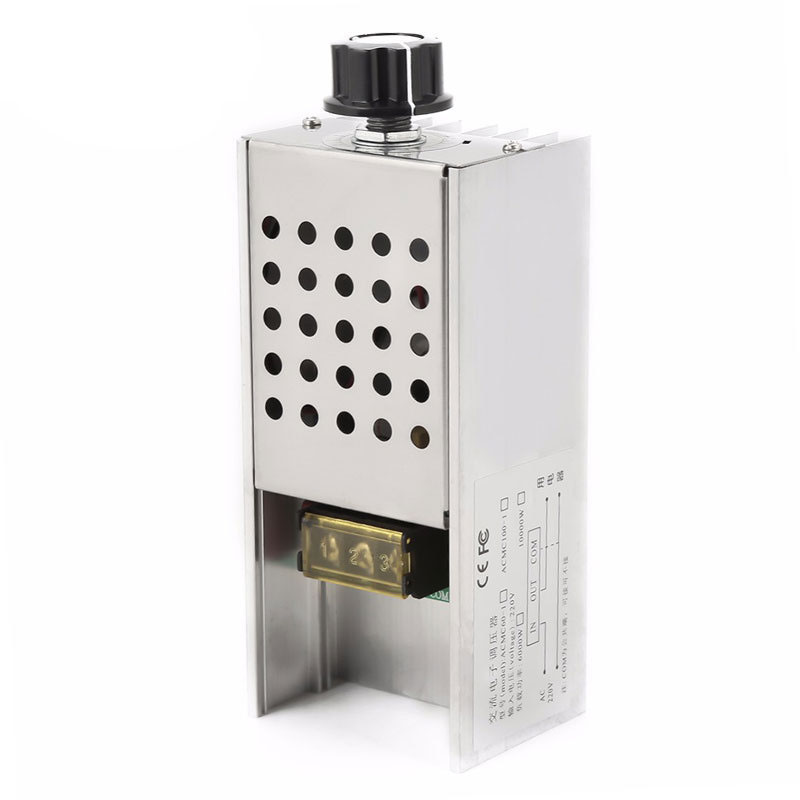

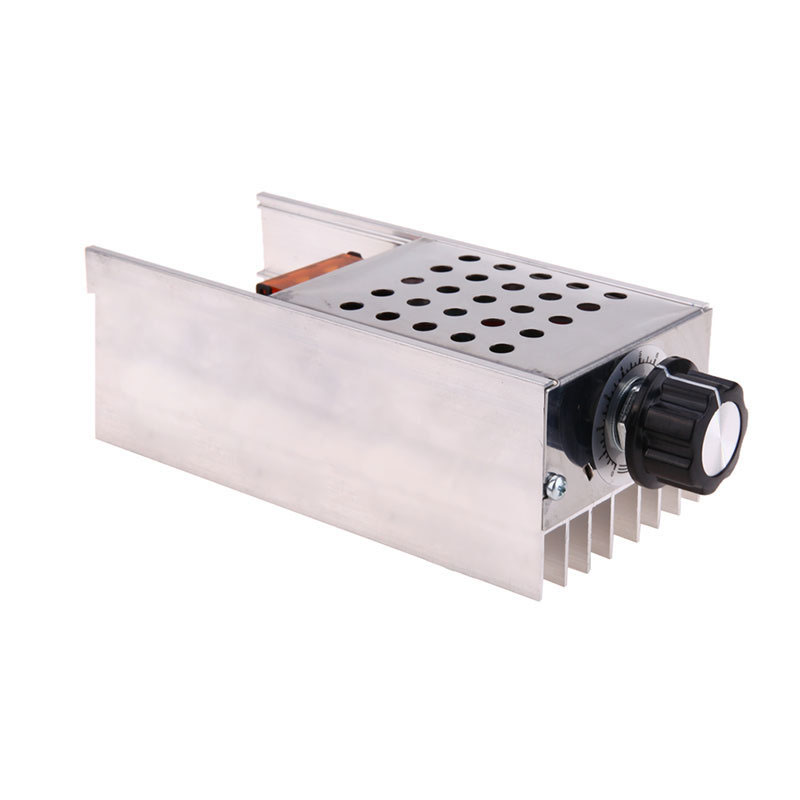

6000W Imported High Power Silicon Controlled Voltage Regulator

Product Information:

This product is an AC input, AC output, and can only be reduced in voltage. It can only be adjusted when connected to a load. It is useless to connect to a multimeter without load, not a transformer. Please read all the instructions on the product page before taking pictures!

Specification Parameters:

● Product name: 6000W AC Pressure regulator

● Thyristor model: BTA41600B

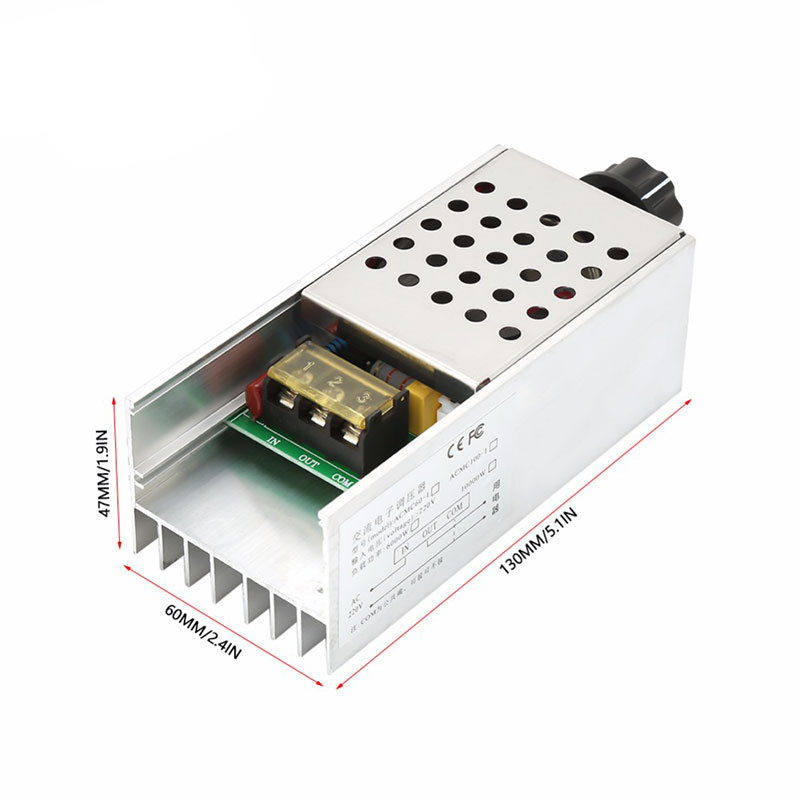

● Size: length 130 * width 60 * height 47mm, inner hole of knob 6mm, excluding protruding knob, measured manually, with errors, subject to actual product

● High power: 6000W (limit power of resistive load) should be reduced for long-term use. It is recommended to use within 3000W of room temperature resistive load (key parameters, please note)

● Efficiency: over 90%

● Working voltage: AC 220V

● Adjusting voltage: AC 0-220V, resistive load conditions, starting at more than ten volts, and can be adjusted back to 0

Attention:

● The load must be connected before voltage regulation.

● Using original imported 41A thyristor, mainly used for resistive loads (such as electric filament incandescent lamps), most single-phase AC motors can also be used, but it is not guaranteed that all can be used. Other types of loads should be confirmed by the buyer themselves.

● Please note that excessive force on the plastic cover on the joint can easily break the cover, and it may also be crushed during express transportation. It is a vulnerable part, but it will not affect the use of the module. Our store is not responsible for returns or exchanges of plastic cover related issues.

● Using a 1.6-thick FR-4 high-temperature resistant circuit board, the circuit design is reasonable, and an enlarged and thickened soldering circuit design is adopted, which is sufficient to handle even high currents, making it safer and more reliable to use. The circuit has undergone multiple technological improvements and selected every accessory, and is now fully technologically mature. Adopting a dual capacitor design (safety capacitor+metal film capacitor) to effectively absorb surges and voltage spikes, more effectively protect the thyristor, and achieve higher efficiency and safety in use. This product is an AC input, AC output, and can only be reduced in voltage. It can only be adjusted when connected to a load. It is useless to connect to a multimeter without load, not a transformer. Please read all the instructions on the product page before taking pictures!
