CCM5D Digital Display PWM DC Motor Speed Controller 6V12V24V Stepless Speed Control Switch Controller Show ShellItem NO.: CCM5D
-
Customized Requirements
- Quantity
-
-
- Product Name: CCM5D Digital Display PWM DC Motor Speed Controller 6V12V24V Stepless Speed Control Switch Controller Show Shell
- Item NO.: CCM5D
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Digital Display , PWM DC Motor Speed Controller , 6V12V24V , CCM5D , Stepless Speed Control , Switch Controller
- Creation Time: 2024-04-09

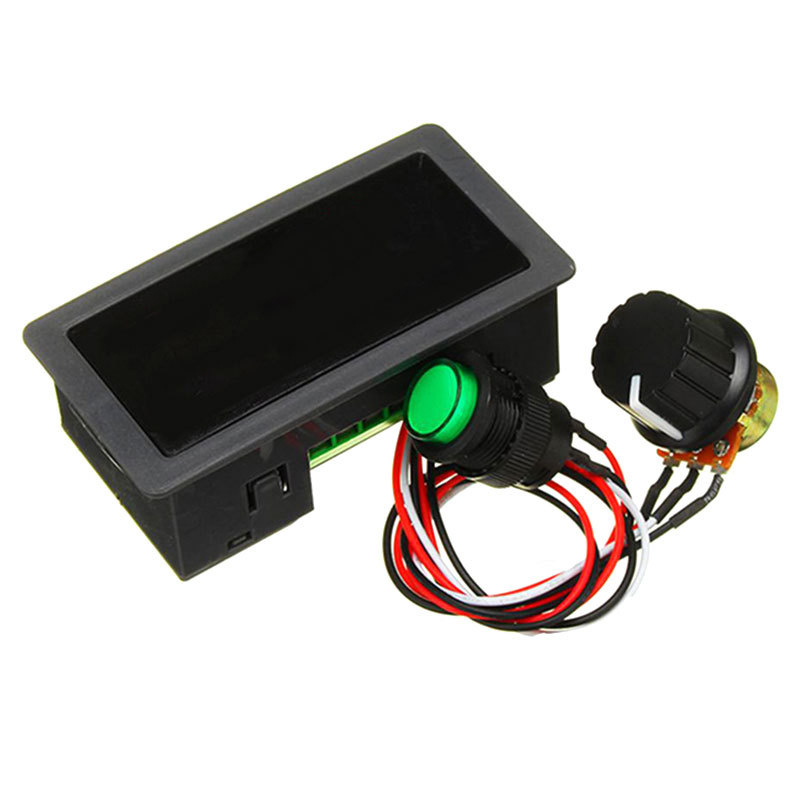

CCM5D Digital Display PWM DC Motor Speed Controller
Technical Indicators:
(1) Working voltage: DC6V-DC30V
(2) Control power: 0.01-150W
(3) Quiescent current: 0.02A (standby state)
(4) PWM duty cycle: 0%-
(5) PWM frequency: 13khz
(6) Rated current: (peak current 8a)
● Standard industrial grade touch knob, gently press to enter sleep mode, and then lightly press to restart operation

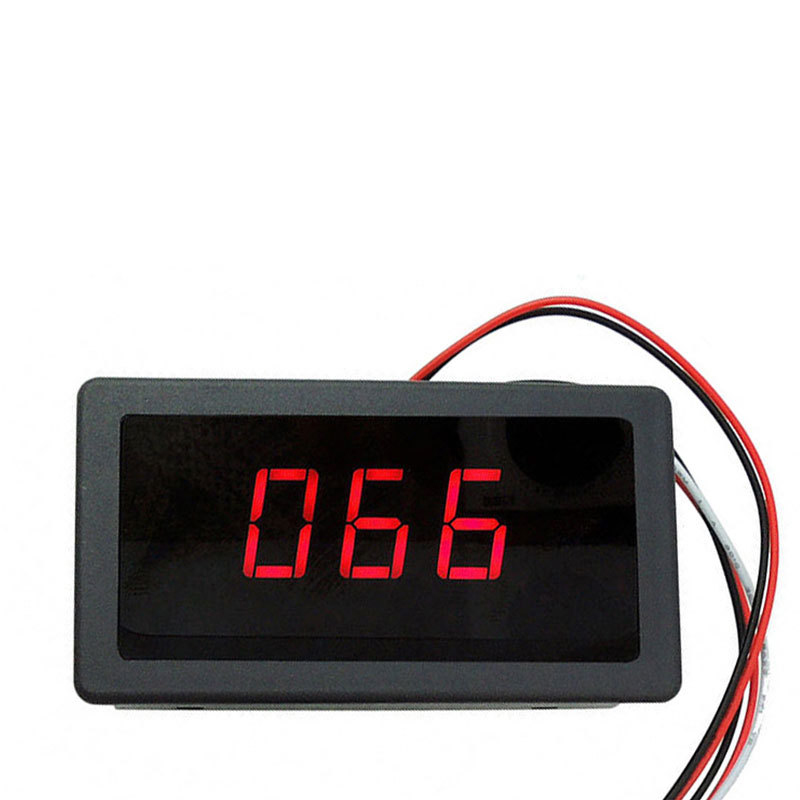

● The knob achieves 0-adjustment and displays 0-100 values on the digital display screen, facilitating customer positioning speed and equipment quality.

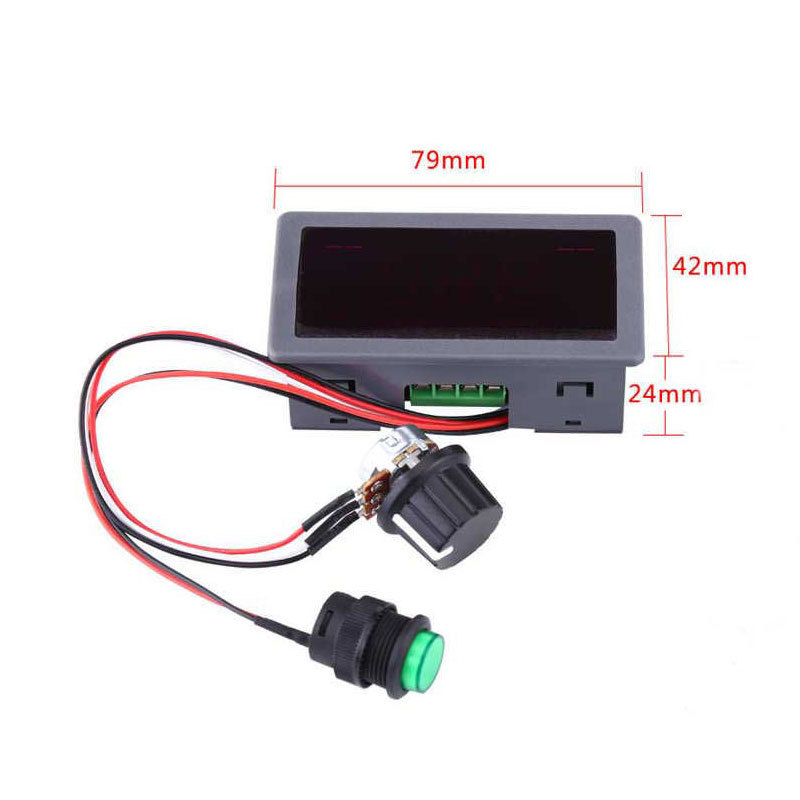

● External dimensions: 79 * 42mm
● Opening size: 76 * 39mm
● Net weight: 57g
● Product specifications and dimensions: 79 * 42 * 24mm
Please Note:
1. This governor is used for DC brushless motors.
2. Not suitable for speed regulation of DC brushless motors; It cannot be used as a Pressure regulator or voltage stabilizer!
