DY-SV5W Voice Playback Module MP3 Player Triggering Playback Serial Port Control PlaybackItem NO.: DY-SV5W
-
Customized Requirements
- Quantity
-
-
- Product Name: DY-SV5W Voice Playback Module MP3 Player Triggering Playback Serial Port Control Playback
- Item NO.: DY-SV5W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: DY-SV5W , Voice Playback Module , MP3 Player , Serial Port Control Playback
- Creation Time: 2024-03-26

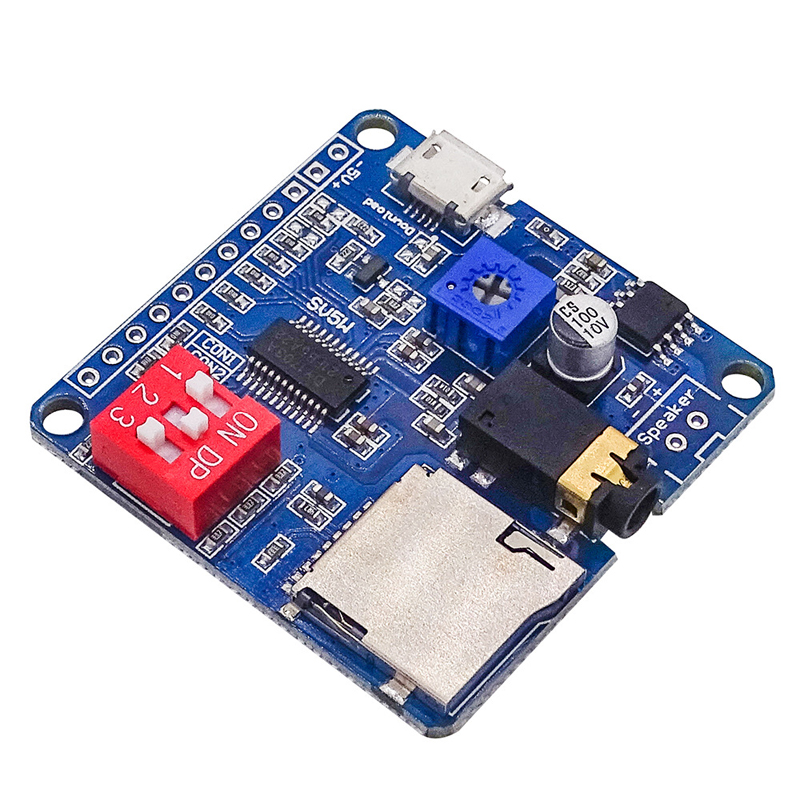

DY-SV5W Voice Playback Module MP3 Player
Product Overview:
DY-SV5W is an intelligent voice module that integrates IO segmented triggering, UART serial port control, ONE_ Line single bus serial port control, standard MP3 and other 7 working modes, simple Dip switch setting; On board 5W Class D power amplifier, capable of directly driving 4 Ω, 3-5 W speakers; Supports MP3 and WAV decoding formats, supports up to 32G TF card storage, and can be connected to a computer via USB data cable to update TF card storage audio files.
Product Characteristics:
1. Supports MP3 and WAV decoding formats.
2. Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48.
3. 24 bit DAC output, dynamic range supporting 90dB, signal-to-noise ratio supporting 85dB.
4. Fully supports the FAT16/FAT32 file system, with a maximum support of 32GB TF cards.
5. Equipped with a 5W Class D power amplifier, it can directly drive 4 Ω, 3-5 W speakers.
6. UART serial port controls voice broadcasting function, which can control functions such as playback, pause, song selection, volume increase or decrease, with a maximum selection of 65535 tracks and a baud rate of 9600bit/s.
7. Supports IO triggered playback function, with 8 IO ports triggering 8 tracks individually or a combination of 8 IO ports triggering 255 tracks.
8. Support for One_ Line single bus serial port control, which can control functions such as playback, pause, music selection, volume increase and decrease.
9. It supports 3 configured IOs to select up to 7 working modes, and the Dip switch setting is simple.

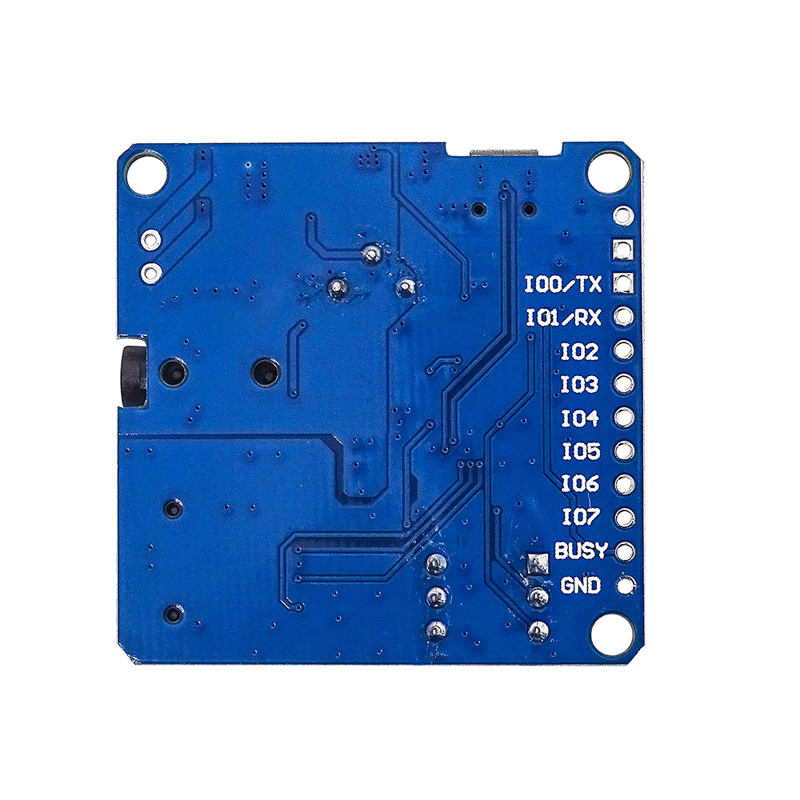

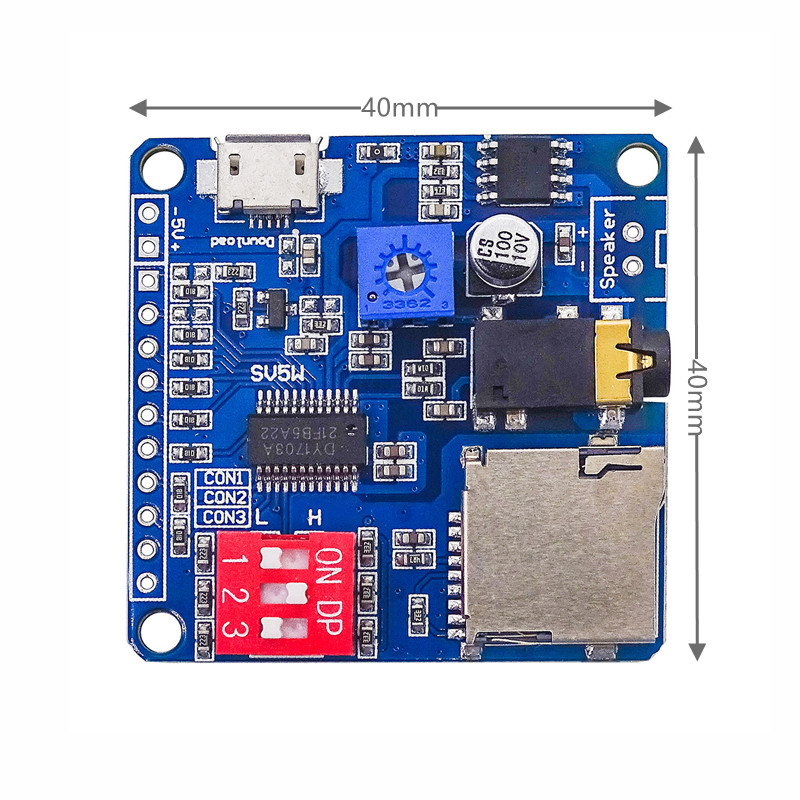

Pin Definition:
●5V power supply negative pole: connected to 5V power supply negative pole (GND)
●5V power supply positive pole: connected to the 5V power supply positive pole
● Input pin IO0 in TXD/IO0: IO trigger mode; TX pin in UART control mode, connected to the RX of the control terminal (MCU)
●RXD/IO1: Input pin IO1 in IO trigger mode; RX pin in UART control mode, connected to TX of control terminal (MCU)
●IO2: IO trigger mode input pin IO2
●IO3: IO trigger mode input pin IO3
●IO4/ONE_ LINE: IO trigger mode input pin IO4; One_ Line 1 serial port control mode data receiving pin
●IO5: IO trigger mode input pin IO5
●IO6: IO trigger mode input pin IO6
●IO7: IO trigger mode input pin IO7
●BUSY: Output low level (0V) when playing the track, and output high level (3.3V) when playing the end
●GND: Reference ground terminal (connected to control terminal GND)
