100W*2 Mini Version 50W80W High-power 5.0 Bluetooth Amplifier Board with Knob to Adjust Volume Switch ZK-1002LItem NO.: ZK-1002L
-
Customized Requirements
- Quantity
-
-
- Product Name: 100W*2 Mini Version 50W80W High-power 5.0 Bluetooth Amplifier Board with Knob to Adjust Volume Switch ZK-1002L
- Item NO.: ZK-1002L
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: 5.0 Bluetooth , Amplifier Board , 100W*2 , 50W80W , ZK-1002L
- Creation Time: 2024-05-03

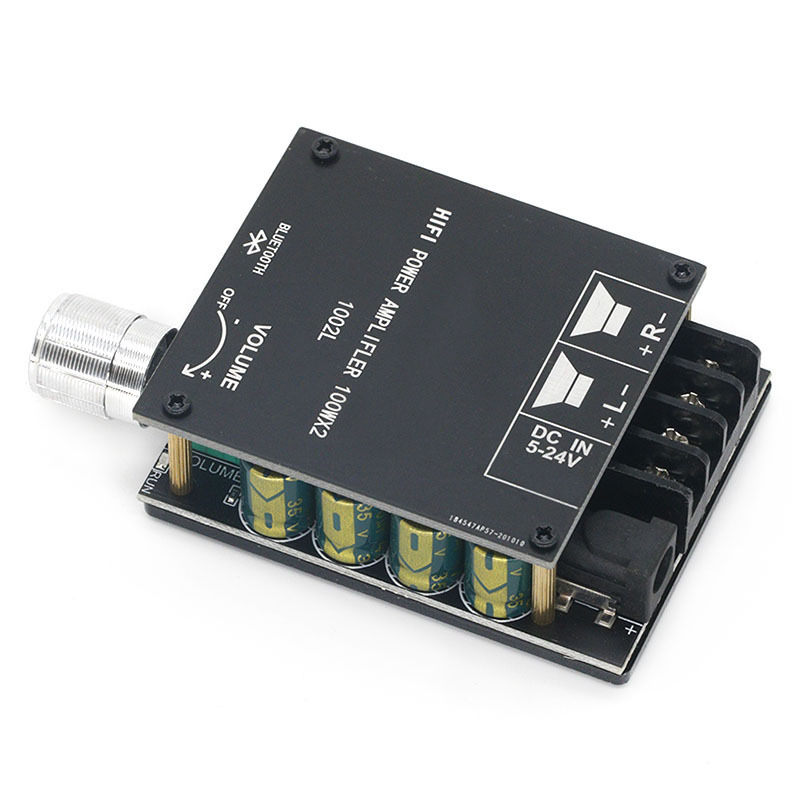

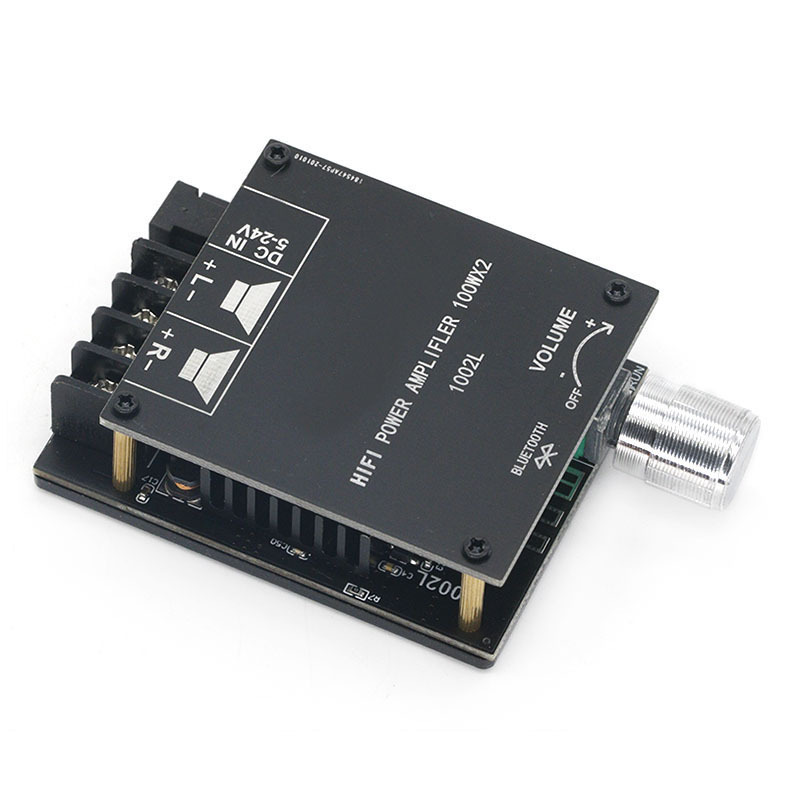

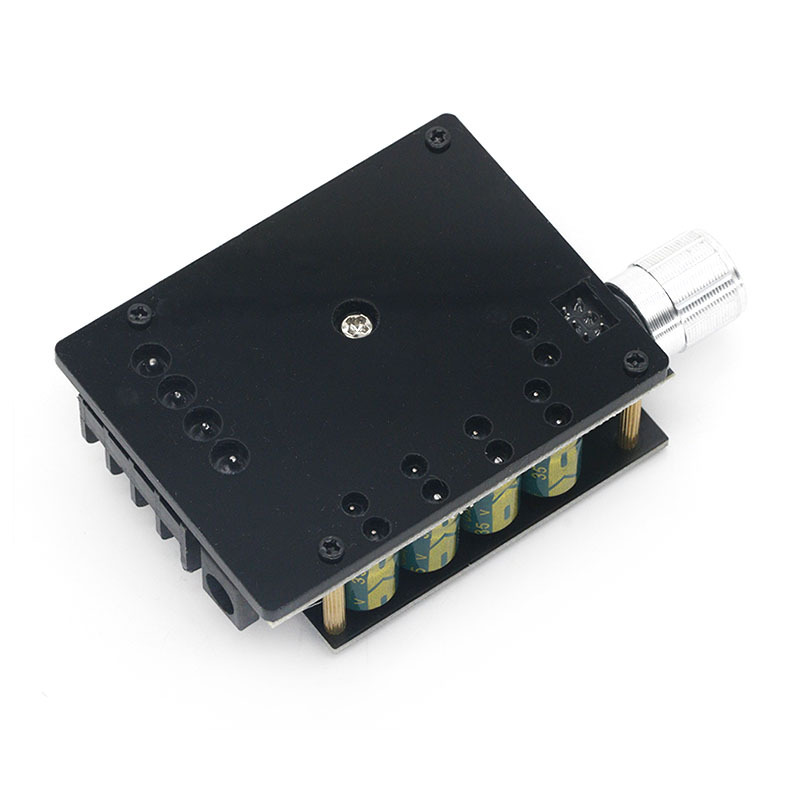

ZK-1002L 5.0 Bluetooth amplifier board
Product parameters:
Product name: HIFI level 2x100W Bluetooth digital power amplifier board with filtering
Product model: ZK-1002L
Filter present or not: LC filter present (resulting in a smoother and clearer sound after filtering)
Adapted power supply voltage: 5-27V (optional adapters such as 9V/12V/15V18V24V, recommended high voltage for high-power)
Adapted speaker: 50W~300W, 4 Ω~8 Ω
Channel count: Left and right dual channels (stereo)
Bluetooth version: 5.0
Bluetooth transmission distance: 15 meters (unobstructed)
Protection mechanism: overvoltage, undervoltage, overheating, DC detection, short circuit protection
Tip: Only with sufficient audio input and sufficient power supply voltage/current can there be sufficient output power. Higher power supply voltage will result in higher relative power, and speakers with different impedances will have different output power. When the voltage and current are sufficient, the larger the number of ohms of the speaker, the smaller the relative sound power. Please pay attention!
Power supply voltage:
12V -8 ohm speaker/24W (left channel)+24W (right channel), 4 ohm speaker/40W+40W
15V -8 ohms/36W+36W, 4 ohms/greater than 60+60W
19V -8 ohms/64+64W, 4 ohms/greater than 92+92W
24V -8 ohms/76+76W, 4 ohms/greater than 110+110W
