MAX6675 K-type Thermocouple Module Temperature Sensor Module Serial Thermocouple Analog To Digital ConverterItem NO.: MAX6675
-
Customized Requirements
- Quantity
-
-
- Product Name: MAX6675 K-type Thermocouple Module Temperature Sensor Module Serial Thermocouple Analog To Digital Converter
- Item NO.: MAX6675
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Digital , Temperature Sensor , K-type , Thermocouple Module , MAX6675
- Creation Time: 2024-03-25

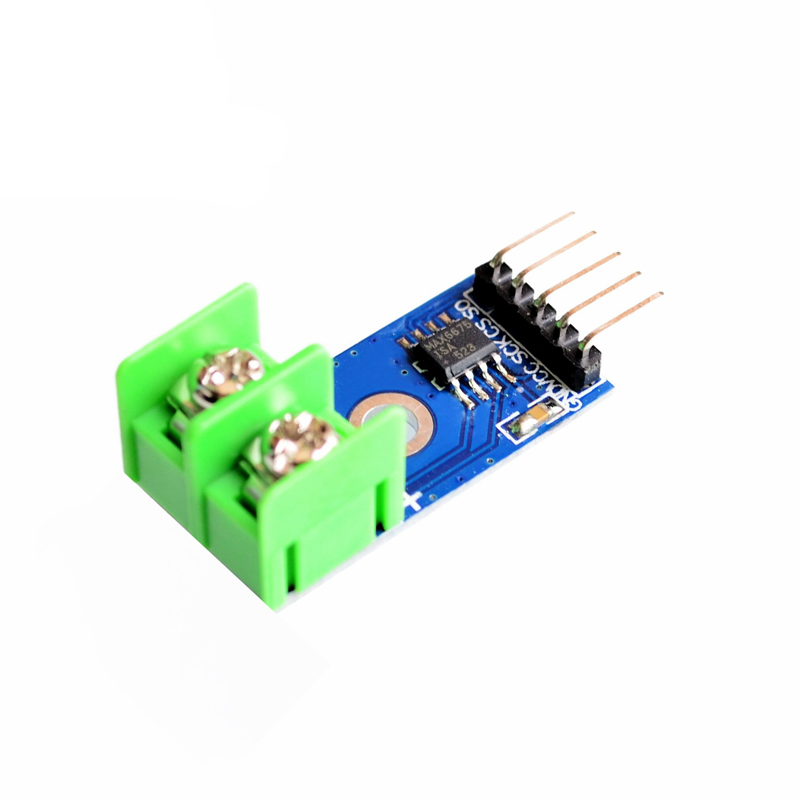

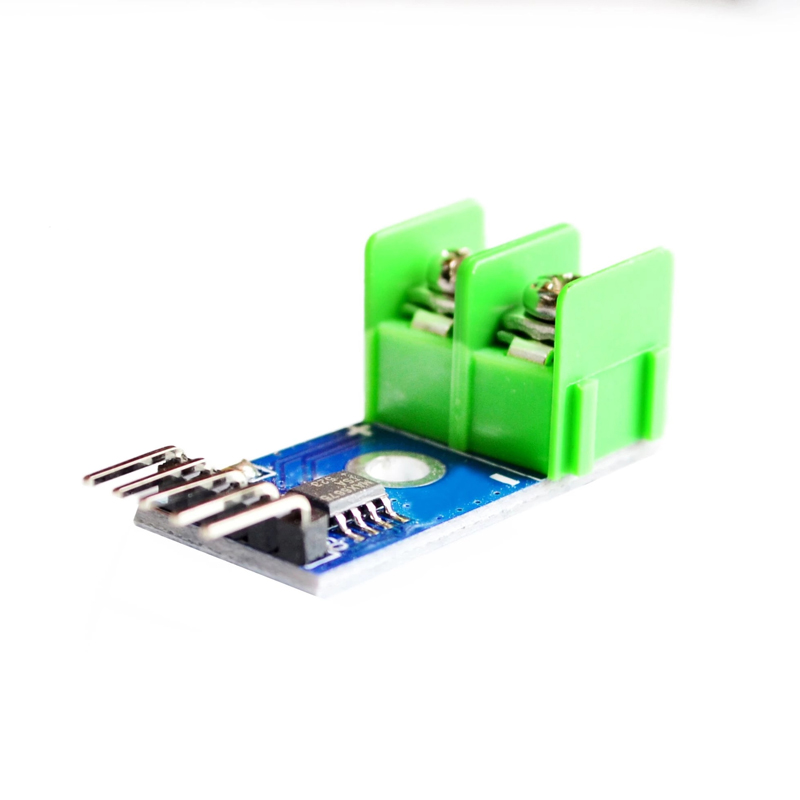

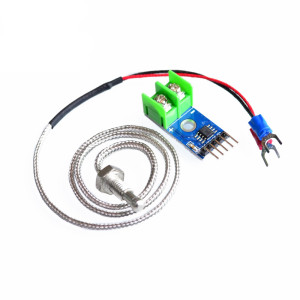

MAX6675 K-type Thermocouple Module
Product Information:
MAX6675 has cold junction compensation, linearity correction, thermocouple break detection ADC series K-type thermocouple, with temperature resolution of 0.25 degrees, cold junction compensation range of - 20~+80 degrees, and wide working voltage range of 3.0~5.5V
Product Parameters:
● Working voltage: 3.0~5.5V
● Internal integrated cold junction compensation circuit;
● Simple three serial port interface;
● Temperature signal can be converted to 12 digits
● Temperature resolution: 0. 25 degrees;
● Cold end compensation range: - 20~+80 degrees,
● Embedded thermocouple break detection circuit.
● With SPI 3-wire communication

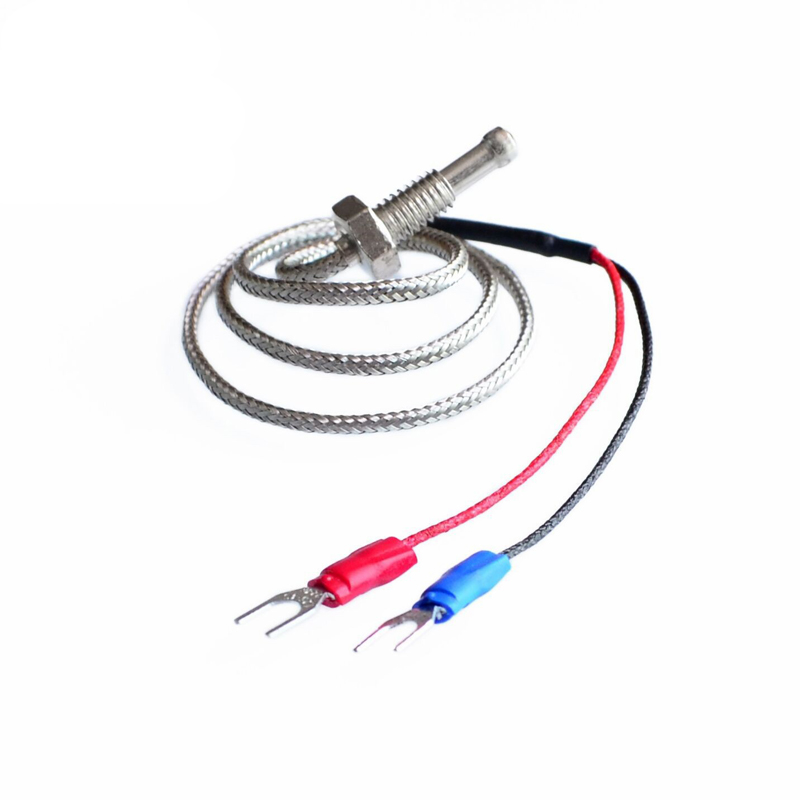

● Type K temperature probe
● Type K temperature range 0-1024 ℃
● Module interface: GND VCC SCK CS SO
● Power supply voltage: 3~5V DC
● Module size: 15mm * 25mm
Scope Of Application:
1 It is especially suitable for single-chip microcomputer enthusiasts, students, scientific research institutions, experiments and prototype development
2 Room temperature measurement, automobile modification, automobile air conditioner, refrigerator, freezer, and medium and low temperature drying oven
3. Temperature measurement in freezer, granary, storage tank, telecommunication machine room, power machine room, cable trunking, etc
4. Temperature measurement of industrial equipment in narrow space, such as bearing bush, cylinder block, spinning machine, air conditioner, etc
