GPS Antenna 28db High Gain 5cm Line Length Active Built-in Ceramic Antenna NEO-6M 7M 8M UniversalItem NO.: GPS28db5cm

US$ 3.60

Quantity: 1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs

Customized Requirements

Quantity: Stock ( 49999995 )

Estimate Shipping Cost

Adding to cart succeed

GPS Antenna 28db High Gain 5cm Line Length Active Built-in Ceramic Antenna NEO-6M 7M 8M Universal

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: GPS Antenna 28db High Gain 5cm Line Length Active Built-in Ceramic Antenna NEO-6M 7M 8M Universal
- Item NO.: GPS28db5cm
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: GPS Antenna , Active Built-in Ceramic Antenna
- Creation Time: 2024-04-17

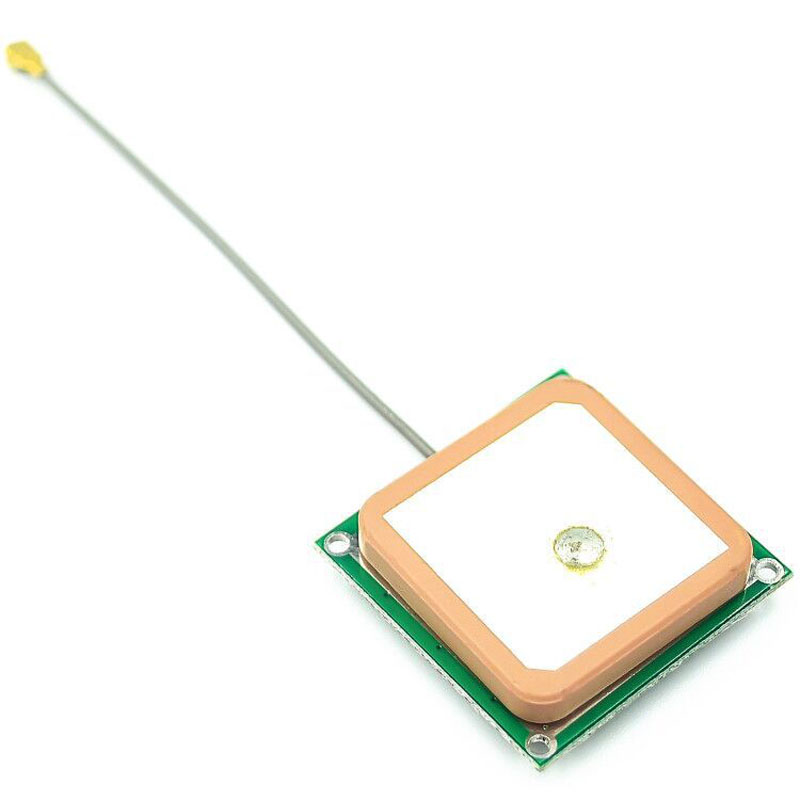

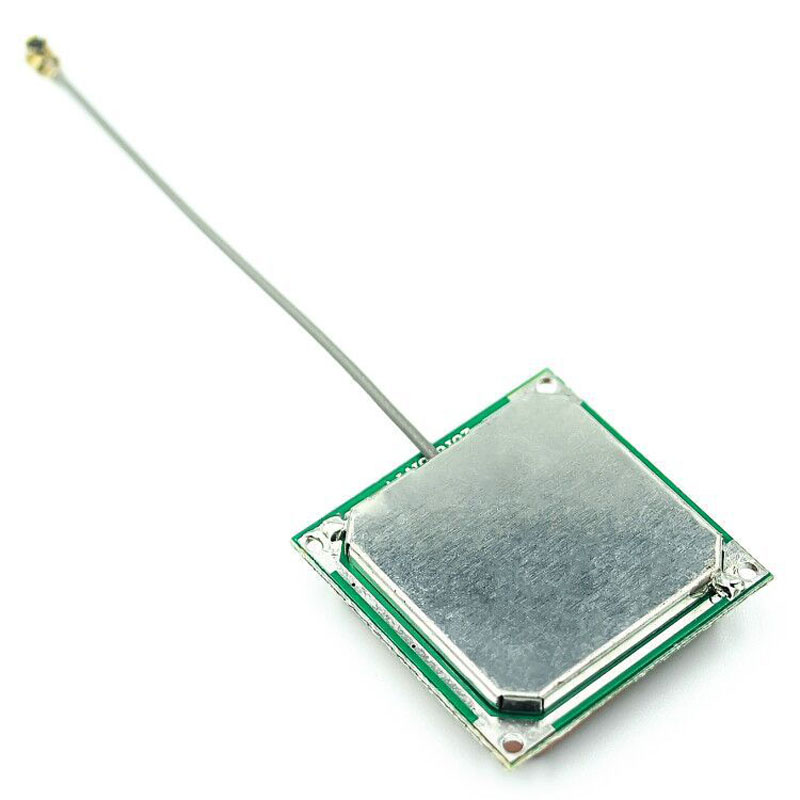

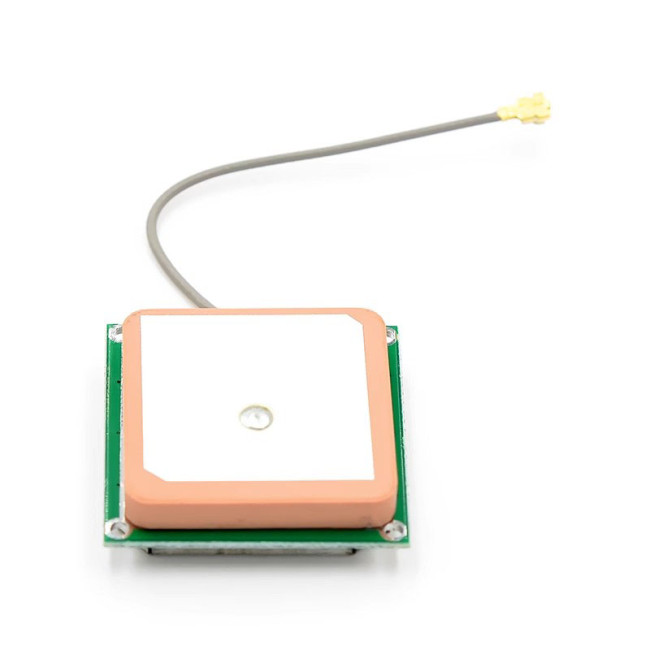

Active Built-in Ceramic Antenna

Product Information:

Center frequency: 1575MHZ

Voltage standing wave ratio: 2:1

Bandwidth: ± 30 MHz

Impedance: 50 Ω

Gain: ＞ 3dBic Based on 7 × 7cm

Gain range: ＞ -4dBic at -90 ° ＜ 0 ＜+90 °

Antenna polarization: RHCP

Amplifier gain: 32dB

Noise coefficient: 1.5dB

Filter out of band attenuation:

7dB Min f0+/-20MHz;

20dB Min f0+/-50MHz;

30dB Min f0+/-100MHz

Output voltage standing wave ratio: ＜ 2.0

DC voltage DC: 3V --5V

Power consumption: 10mA

Weight: 7 (grams)

External dimensions: 28X28X6.5mm

Cable length: 5/10/20cm customized

Connector model: IPEX

Line color: black

Working temperature: -40 ℃~+85 ℃

Waterproof test: Passed

Humidity: 95%~RH
