Customized Requirements
- Quantity
-
-
- Product Name: TEA5767 Radio FM Stereo Radio Module 76-108MHZ Automatic Digital Tuning
- Item NO.: TEA5767 FM
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: Radio , TEA5767 , FM Stereo Radio Module , 76-108MHZ
- Creation Time: 2024-04-17

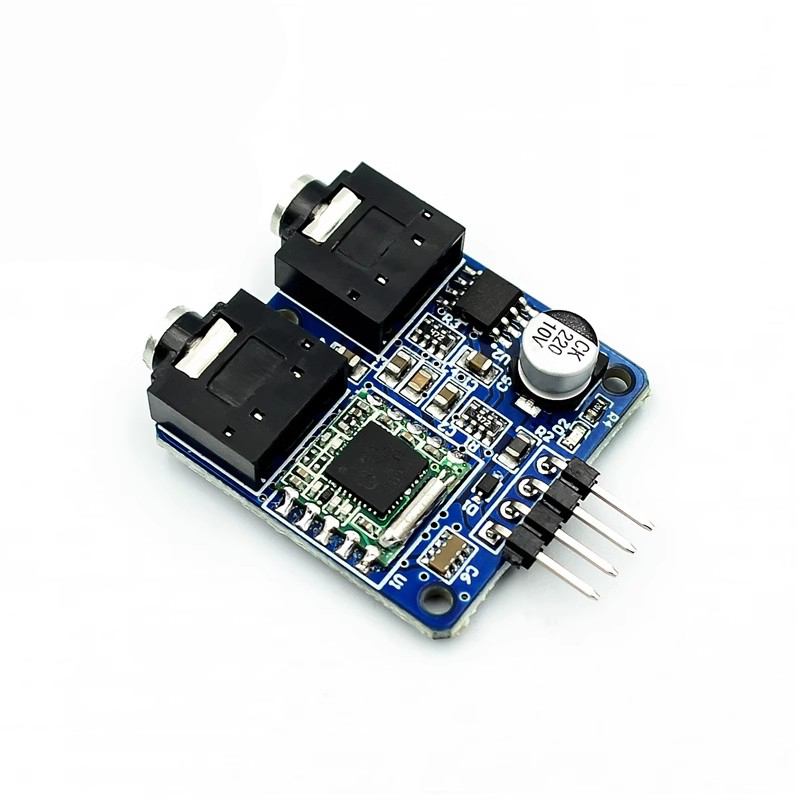

TEA5767 Radio Module
Product Introduction:
The frequency range is automatically digital tuned from 76-108MHz. High sensitivity, high stability, low noise, radio module.
A low-power tuned FM stereo radio circuit that integrates an intermediate frequency selection and demodulation network,
It can be completely adjustable.
High sensitivity (using low noise RF input amplifiers)
Frequency range from 76-108MHz
High voltage automatic gain control (AGC) circuit
Low cost fixed chip for LC tuning oscillation
FM intermediate frequency selection is completed internally, and intermediate frequency is not adjustable
Phase-locked loop tuning system
Soft mute, Stereo Noise Cancellation (SNC), High Level Cut (HCC) can be turned off through the bus
Power supply: 5V
Circuit board size: 31 X 30 MM
With power reverse protection diode
Board with power output filter inductance
Multiple capacitor combination filtering
Blue power indicator light
Antenna port that can be directly plugged in and out
I2C bus communication
FM frequency modulation dedicated chip module TEA5767
The headphone amplifier chip TDA1308 is used as audio amplifier on the board
The onboard 3.5MM audio interface can be directly connected to headphones, amplifiers, etc.
To communicate with the microcontroller, simply connect it to a power ground and two I2C communication cables.

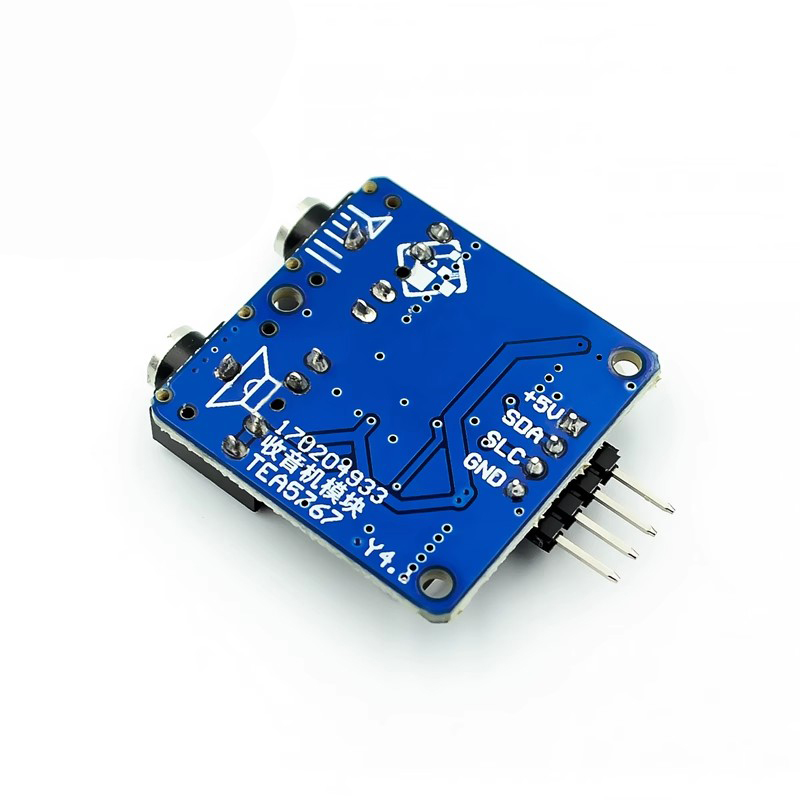

On the back of the circuit board, there are I2C interface definitions, power interface definitions, audio output, and antenna interfaces.
