ADS1115 Subminiature 16 Bit Precision Analog-to-Digital Converter ADC Development Board Module with 4 ChannelsItem NO.: ADS1115
-
Customized Requirements
- Quantity
-
-
- Product Name: ADS1115 Subminiature 16 Bit Precision Analog-to-Digital Converter ADC Development Board Module with 4 Channels
- Item NO.: ADS1115
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: Development Board Module , ADC , Subminiature , Analog-to-Digital Converter , ADS1115 , 16 Bit , 4 Channels
- Creation Time: 2024-03-29

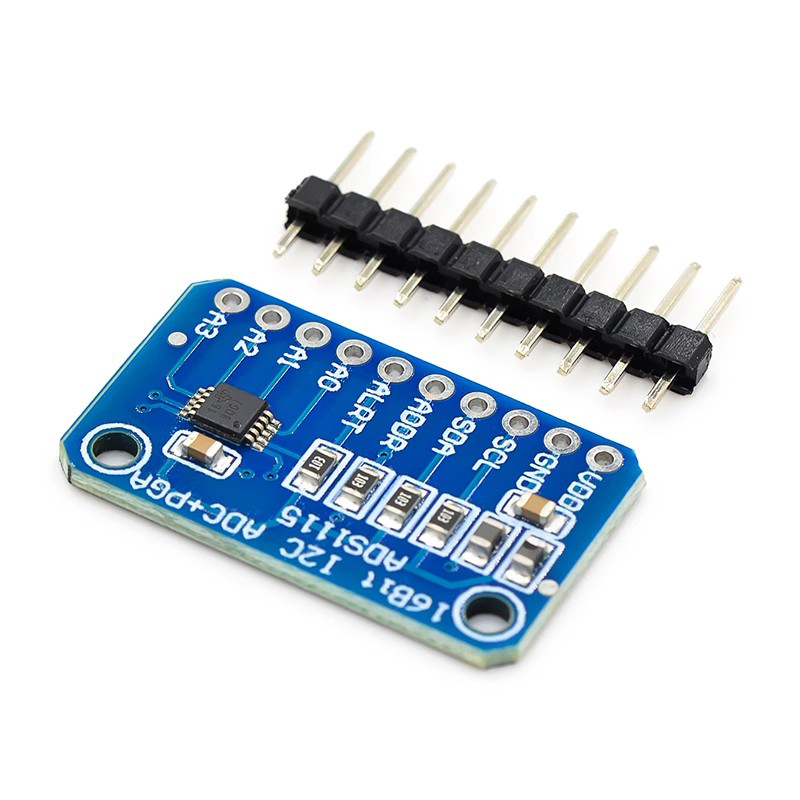

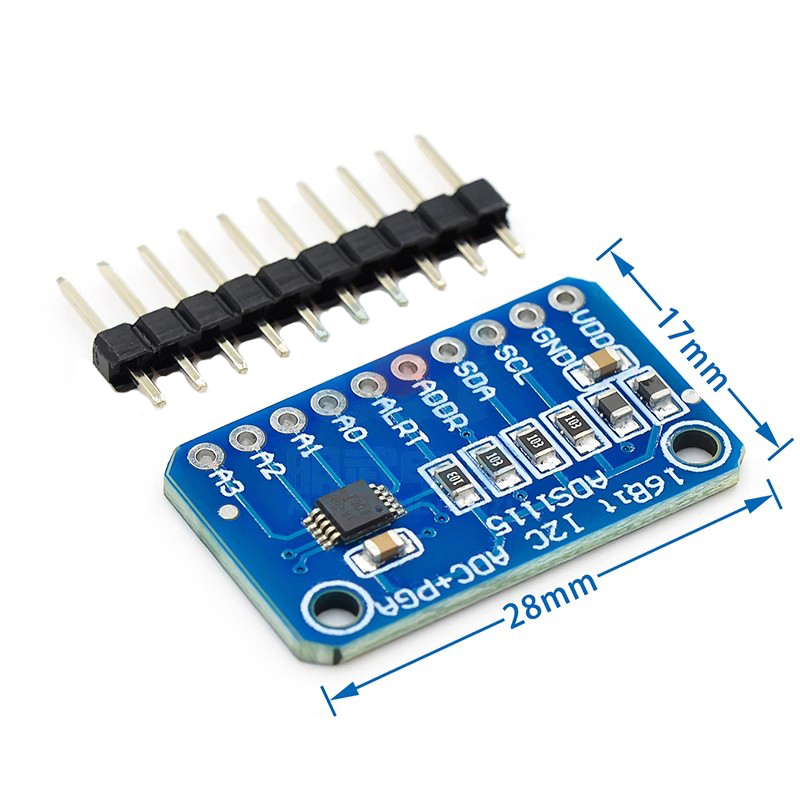

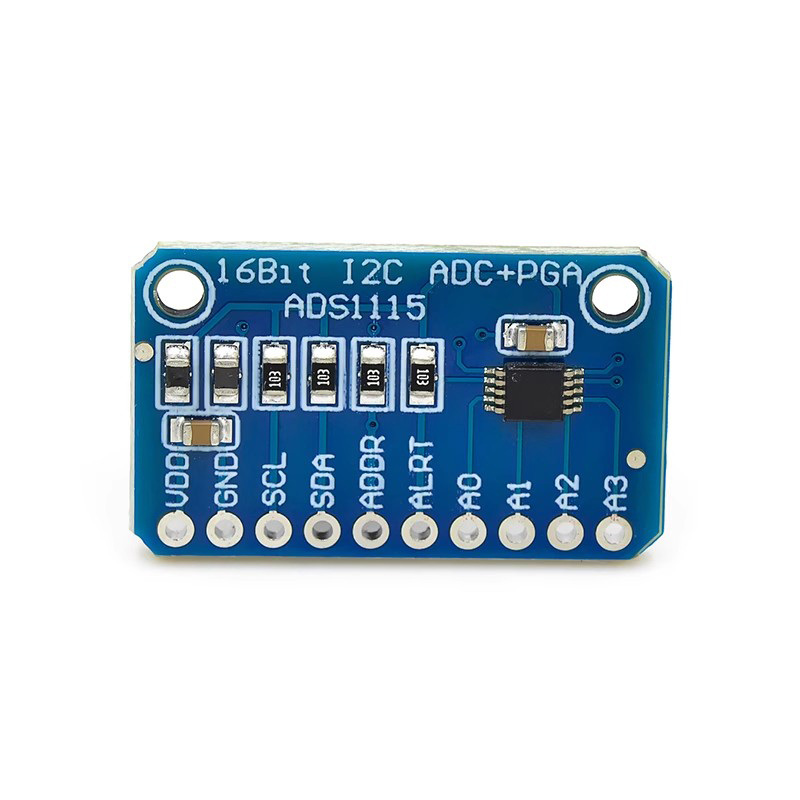

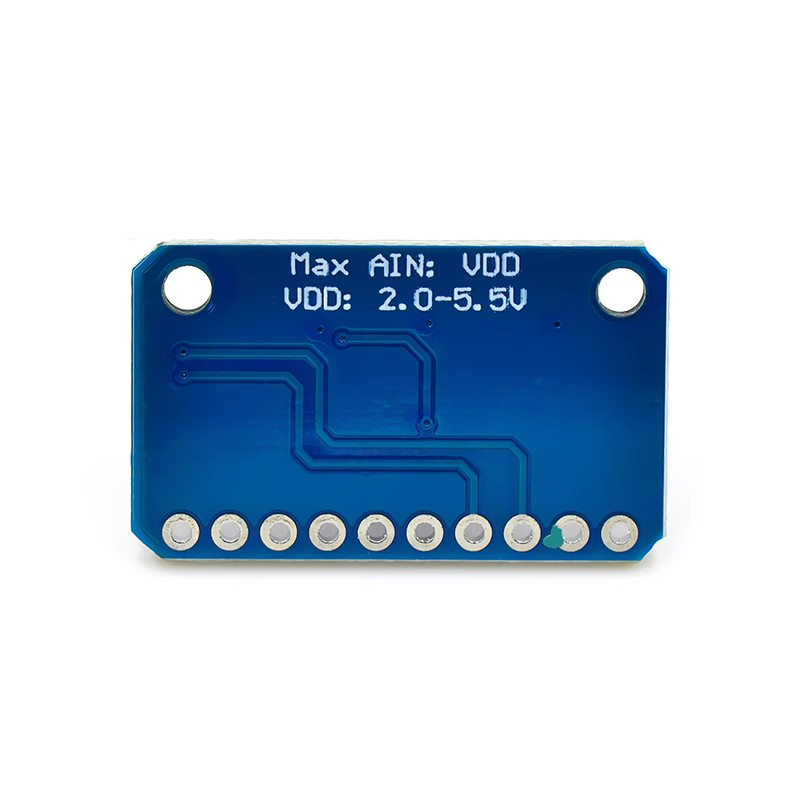

ADS1115 ADC Development Board Module
FEATURES DESCRIPTION:
• ULTRA-SMALL QFN PACKAGE: The ADS1113, ADS1114, and ADS1115 are2mm × 1,5mm × 0,4mm precision analog-to-digital converters (ADCs) with 16
• WIDE SUPPLY RANGE: 2.0V to 5.5V bits of resolution offered in an ultra-small, leadless
• LOW CURRENT CONSUMPTION: QFN-10 package or an MSOP-10 package. The ADS1113/4/5 are designed with precision, power, and
Continuous Mode: Only 150μA ease of implementation in mind. The ADS1113/4/5
Single-Shot Mode: Auto Shut-Down feature an onboard reference and oscillator. Data are
• PROGRAMMABLE DATA RATE: transferred via an I2C-compatible serial interface; four
8SPS to 860SPS I2C slave addresses can be selected. The
• INTERNAL LOW-DRIFT ADS1113/4/5 operate from a single power supply
VOLTAGE REFERENCE ranging from 2.0V to 5.5V.
• INTERNAL OSCILLATOR The ADS1113/4/5 can perform conversions at rates
• INTERNAL PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS
