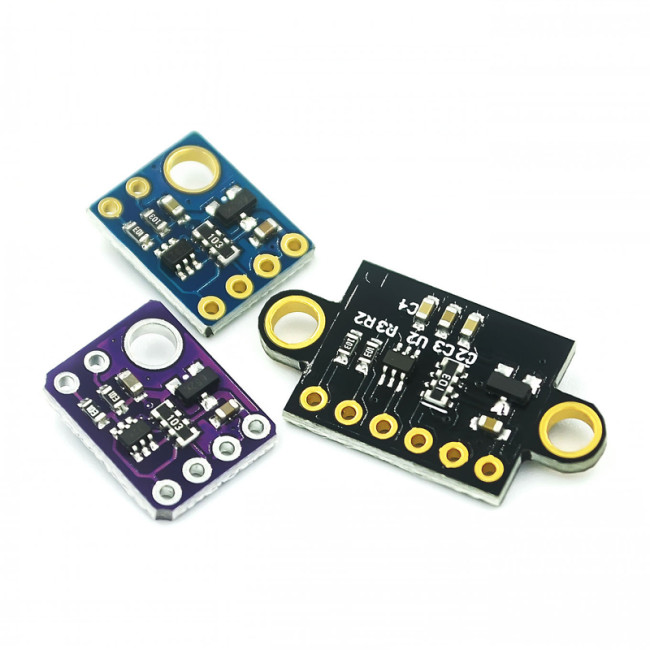

GY-530 VL53L0X Laser Ranging Sensor ToF Ranging Time of Flight Ranging Sensor ModuleItem NO.: GY-530

GY-530 VL53L0X Laser Ranging Sensor

Product Information:

VL53L0X expands the ToF ranging length to two meters, within ± 300 degrees. The measurement speed is faster than that of the previous generation, and the ranging time is less than 30ms; Higher energy efficiency, power consumption is only 20mW under normal working mode, and power consumption is only 5 in standby mode μ A。 The package size is 2.4mm x 4.4mm x 1mm, which is small in the market.

Unlike traditional infrared proximity sensors, VL53L0X outputs ranging results to mm, and the color and reflected light of the target object will not affect the ranging results. The fast response FlightSenseTM technology is famous in the industry because it is used by smart phone camera laser assisted auto focusing, and can distinguish the horizontal or vertical movement of target objects. The sensor completes the ranging calculation internally and outputs data through the I2C bus interface, thus reducing the demand for the main controller of the system.

The internal laser emits 940nm wavelength non visible light, which is harmful to eyes. It eliminates the problem that red light emitted by other infrared proximity detection sensors distracts people's attention, and enhances the anti-interference performance of external light sources. The digital architecture and automatic compensation function of the sensor make it still have high performance in the scene with high ambient light intensity.

Product Parameters:

●Model: GY-VL53L0X

●Chip used: VL53L0X

●Power supply: 2.8-5v

●Ranging time: less than 30mS

●Working mode: power consumption 20mW

●Standby power consumption: 5uA

●Communication mode: IIC communication protocol (fully compatible with 3-5v system)

●Module size: 10.5 * 13.3mm, installation hole: 3mm, small size is convenient for installation in narrow space

Scope Of Application:

The sensing capability of the VL53L0X can support various functions, including gesture sensing or proximity detection of various user interfaces; Wall detection, cliff detection and collision detection of household appliances such as sweeping robots; Sanitary products, such as faucets, soap dispensers, hand dryers and washers; Other targeted applications include laptop user presence detection or power switch monitors, unmanned aerial vehicles and Internet of Things (IoT) products.
