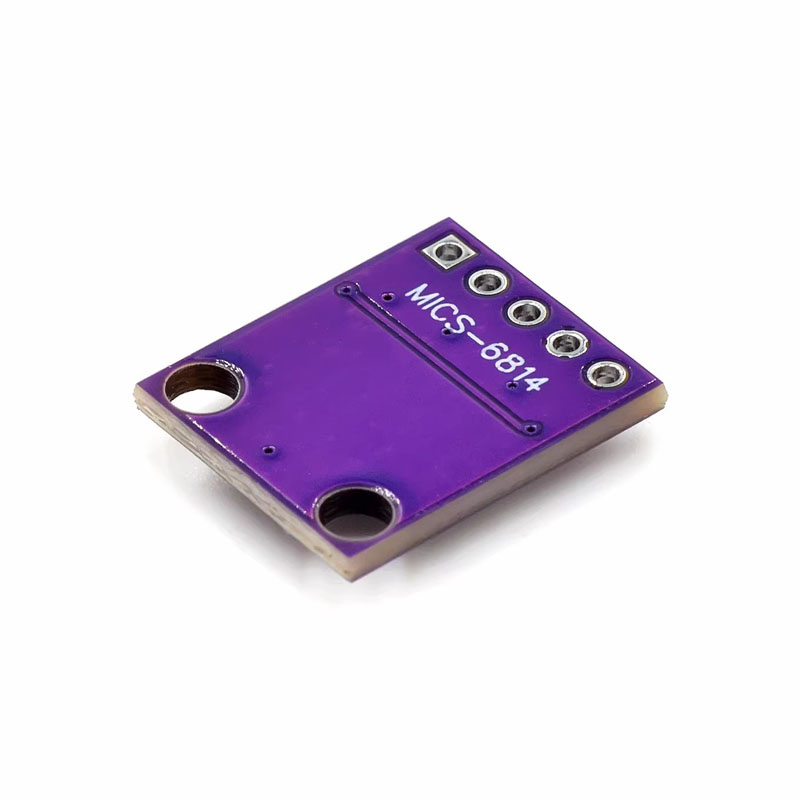

MCU-MICS-6814 Gas Sensor
Product Features:
The silicon gas sensor chip structure consists of a precision micromechanical membrane and an embedded heating resistor, with the sensing layer located at the top. Three independent gas sensing elements are integrated. It can detect automobile exhaust, industrial and agricultural exhaust gases in harsh environments.
Product Specification:
● Module power supply voltage: DC4.9V-5.1V
● Working environment temperature and humidity: - 30~85 degrees Celsius 5~95% RH

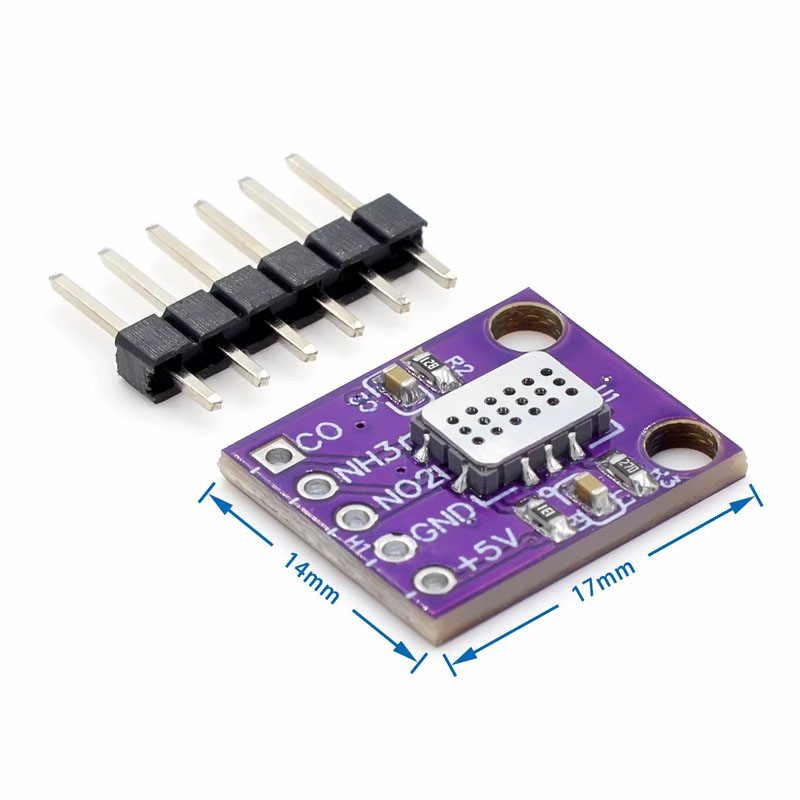

● Module size: 16.9mm * 14.1mm * 3.2mm, with two M3 mounting holes
● Detectable gas range:
Carbon monoxide CO: 1 – 1000 ppm
Nitrogen dioxide NO2: 0.05 – 10ppm
Ethanol C2H5OH: 10 – 500ppm
Hydrogen H2: 1 – 1000 ppm
Ammonia NH3:1 – 500ppm
Methane CH4:>1000ppm
Propane C3H8:>1000ppm
Isobutane C4H10:>1000ppm
Shipping List:
1 MICS-6814 Air Quality Detector Gas Sensor Module
