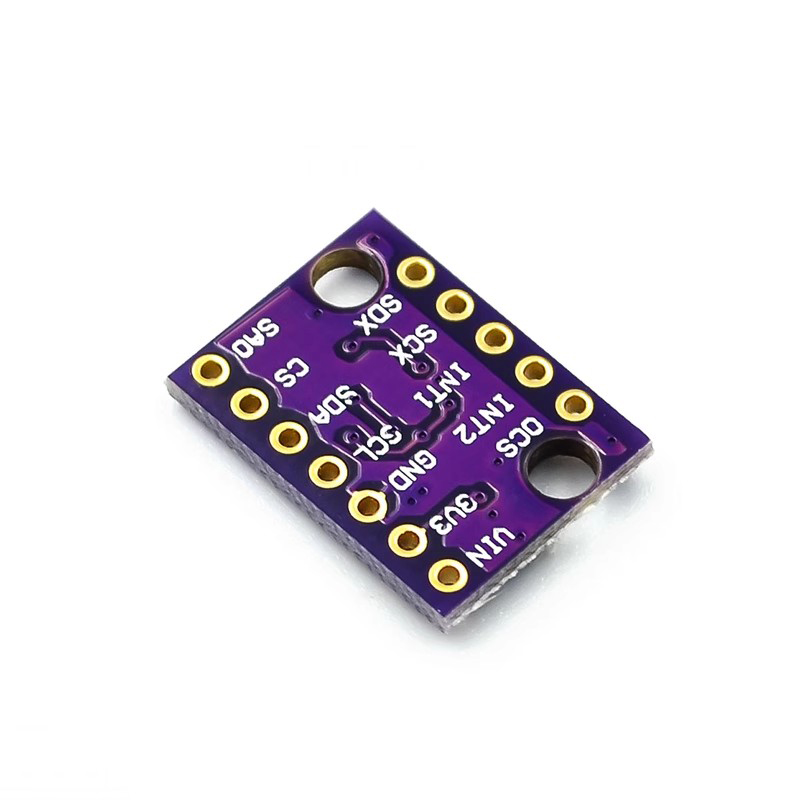

GY-BMI160 Module 6DOF 6-Axis Angular Velocity Gyroscope Gravity Acceleration Sensor IICSPIItem NO.: GY-BMI160

GY-BMI160 Module 6-Axis Angular Velocity

Product Overview:

The new BMI 160 6-axis inertial motion sensor in the MEMS sensor package is adopted, which integrates the top 16 bit 3-axis accelerometer technology and the ultra-low power 3-axis gyroscope. The module can output acceleration data (detected by the device in X, Y, Z directions) and gyroscope data (the speed of the device rotating around X, Y, Z axes). When the accelerometer and gyroscope are working at full speed, the typical power consumption is as low as 950 μ A. Only less than 50% of the power consumption of similar products in the market.

The BMI 160 is specially developed for smart phones, tablets and portable devices. It contains built-in intelligent pedometer algorithms, which can directly read steps through registers. Built in 3-axis acceleration and 3-axis gyroscope, it can detect running, fitness and other sports. The module has a built-in LDO power management chip. The VIN supports 3.2~6V wide voltage power supply. It also has an independent 3.3V interface, which is compatible with Arduino 3.3V and 5V controllers for direct drive.

Technical Specifications:

● Working voltage: 3.2V ～ 6V

● Current consumption:<1mA

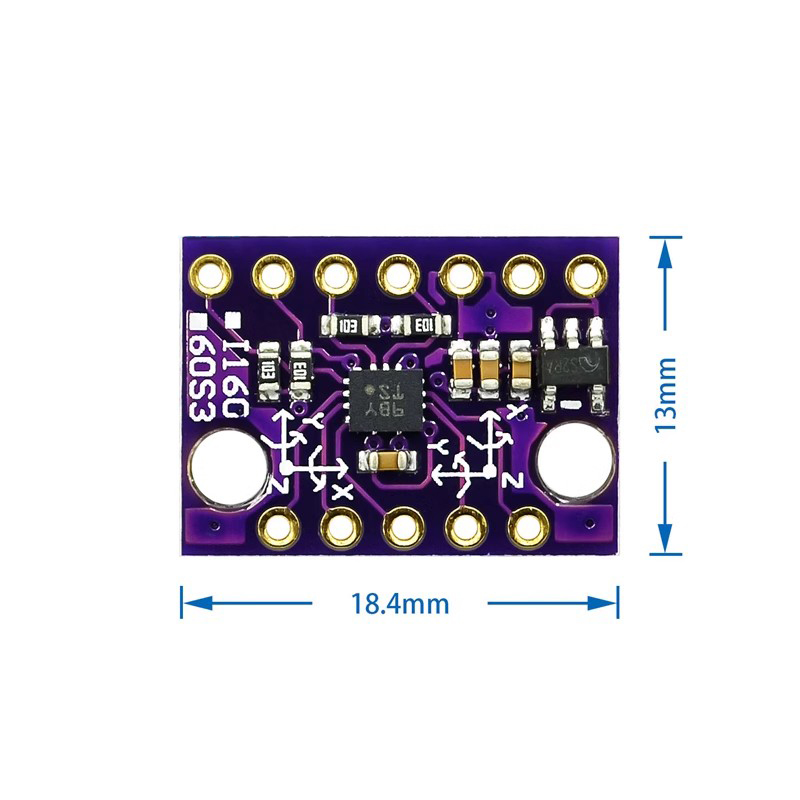

● Interface mode: 2.54 pitch pin array

● Acceleration optional scale: ± 2g/± 4g/± 8g/± 16g

● Optional scale of gyroscope: ± 125 °/s, ± 250 °/s, ± 500 °/s, ± 1000 °/s, ± 2000 °/s

● Zero drift of accelerometer: ± 40mg

● Gyro zero drift: ± 10 °/s

● Programmable frequency: 25/32Hz~1600Hz

● 6D detection and positioning

● 16 bit data output

● Impact resistance: 10000gx 200 μ s

● 2 independent programmable interrupt generators

● Built in 1024 byte FIFO

● Operating temperature: - 40 ℃~+85 ℃
