Customized Requirements
- Quantity
-
-

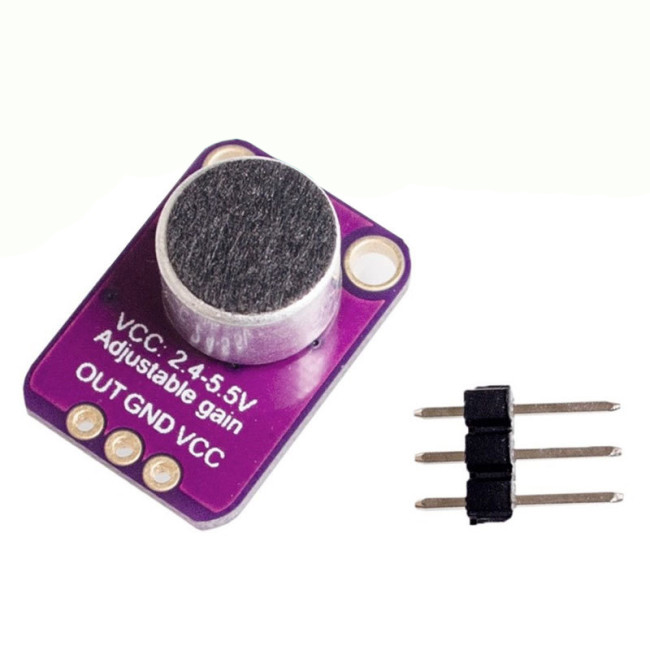

- Product Name: GY-MAX4466 Electret Microphone Amplifier MAX4466 Adjustable For Arduino
- Item NO.: GY-MAX4466
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Adjustable , GY-MAX4466 , MAX4466 , Electret Microphone Amplifier
- Creation Time: 2024-04-15
GY-MAX4466 Sound Sensor Module
1. Chip model: MAX4466
2. Working voltage: 2.4-5.5V
Note: Do not directly drive the speaker or headphones.
Introduction:
MAX4466 is a low-power operational amplifier that has been optimized and can be used as a microphone preamplifier. They provide an ideal combination of optimized gain bandwidth products and power current, as well as low voltage operation in ultra small packages. MAX4466 has gain stability, requiring only 24 μ A power supply current can provide a gain bandwidth of 200kHz. After decompression, a small stable gain of+5V/V can be achieved, and a 600kHz Gain–bandwidth product can be provided. In addition, these amplifiers also have rail to rail output, high AVOL, excellent power supply rejection and common mode rejection ratio, suitable for working in noisy environments. Widely used in cellular phones, digital repeat devices, headphones, hearing aids, microphone preamplifiers, portable computers, and speech recognition systems.
Features And Advantages:
● Power supply voltage:+2.4V to+5.5V (can be directly connected to STM/ARDUNIO/Raspberry Pi and other development board motherboards)
● Power suppression ratio: 112dB
● common mode rejection ratio: 126dB
● AVOL: 125dB (RL=100k Ω) rail to rail output
● Static power supply current:<24 μ A
● Gain bandwidth: 600kHz
Size: 20.8MM * 13.8MM * 7.5MM
Application:
● Cellular telephone
● Digital repeat device
● Earphones
● Hearing aids
● Microphone preamplifier
● Portable computer
● Speech recognition system
