TP4056|18650 Lithium Battery Charging Board Module 1A 3.7v 3.6V 4.2V Overshoot and Overdischarge ProtectionItem NO.: MK00535

TP4056 | 18650 Lithium Battery Charging Board

Module Characteristics and Parameters:

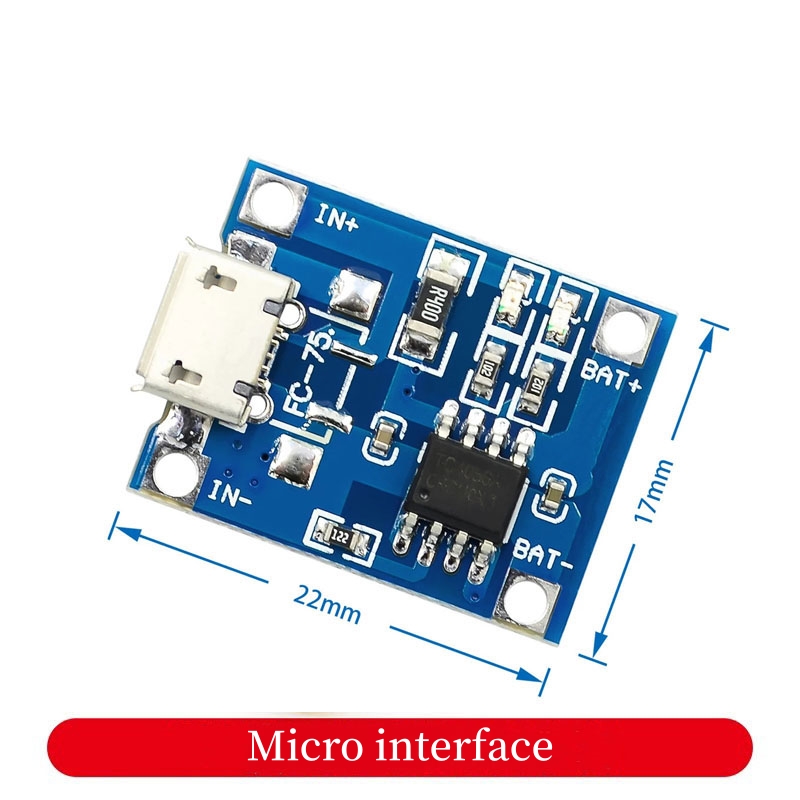

Name: 1A Lithium Battery Charging Source Module MICRO Interface

Interface: MICRO

Charging method: linear charging

Charging current: 1A

Accuracy: 1.5%

Input voltage: 4.5V-5.5V

Full charge voltage: 4.2V

Cannot reverse connect

Board size: 2.2 * 1.7CM

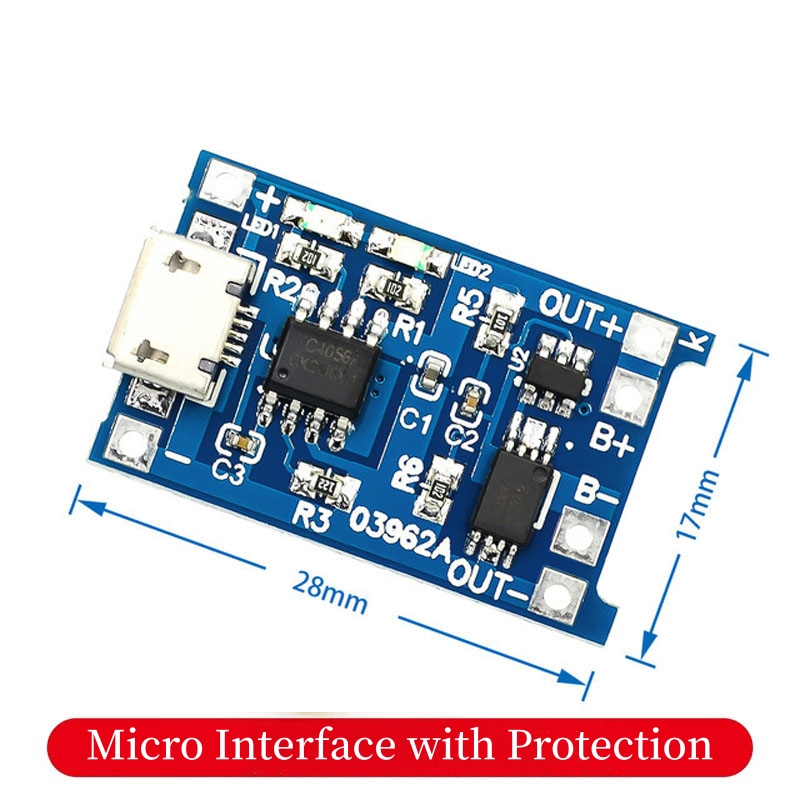

Name: 1A Lithium Battery Charging and Protection Integrated Board 2-in-1 MICRO Interface

Interface: MICRO

Voltage: 5V

Charging cut-off voltage: 4.2V ± 1%

Charging current: 1000mA

Battery over discharge protection voltage: 2.5V

Battery overcurrent protection current: 3A

Board size: 2.8 * 1.7CM

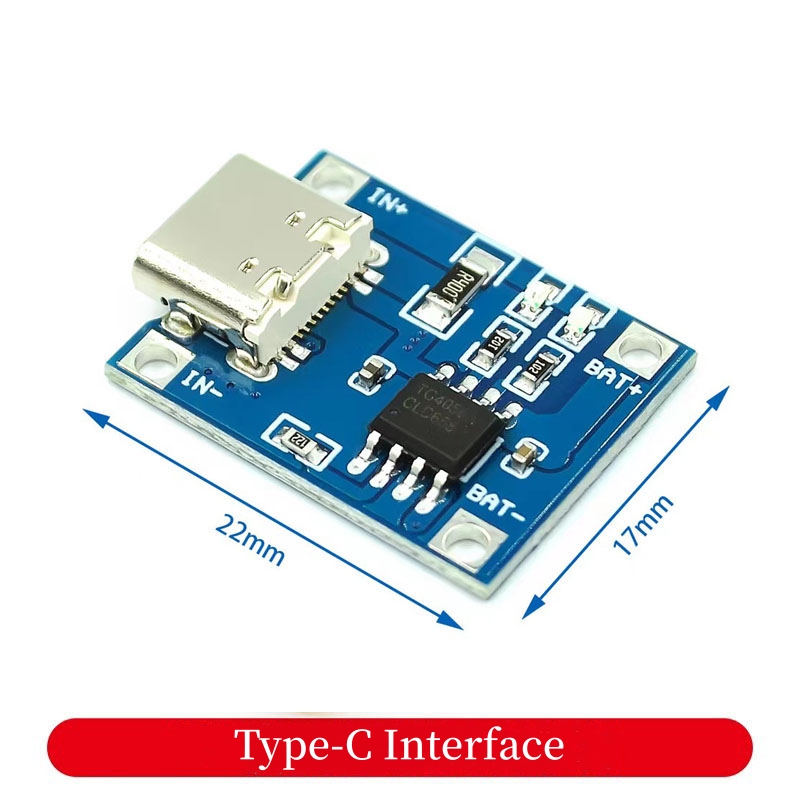

Name: TP4056 Charging Board TYPE-C Interface Without Protection

Interface: TYPE-C

Voltage: 5V

Charging cut-off voltage: 4.2V ± 1%

Charging current: 1000mA

Battery over discharge protection voltage: 2.5V

Battery overcurrent protection current: 3A

Board size: 2.2 * 1.7CM

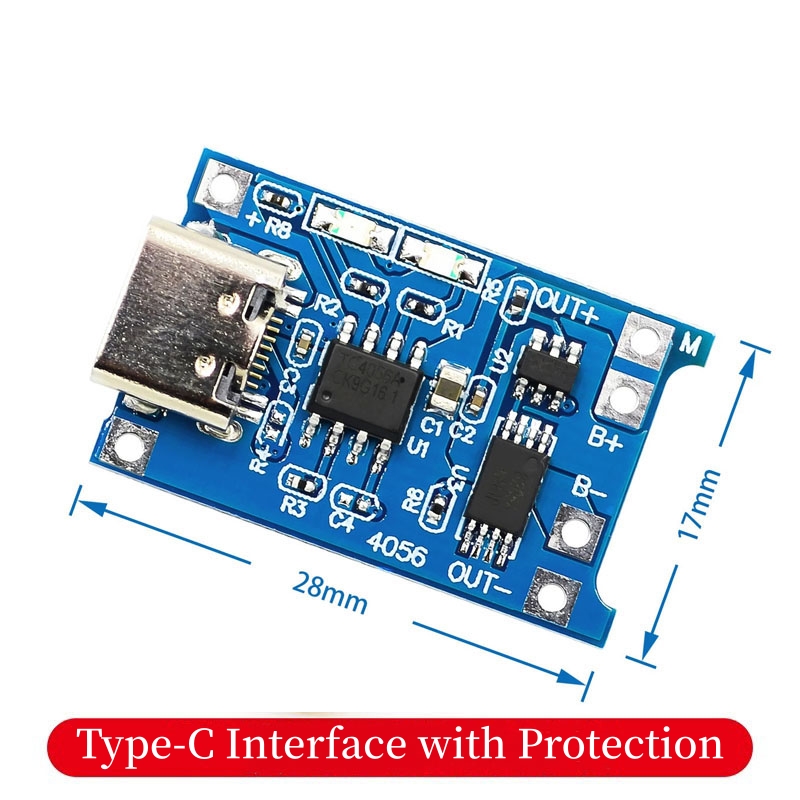

Name: 1A lithium battery charging and protection integrated board 2-in-1 TYPE-C interface

Interface: TYPE-C

Voltage: 5V

Charging cut-off voltage: 4.2V ± 1%

Charging current: 1000mA

Battery over discharge protection voltage: 2.5V

Battery overcurrent protection current: 3A

Board size: 2.8 * 1.7CM

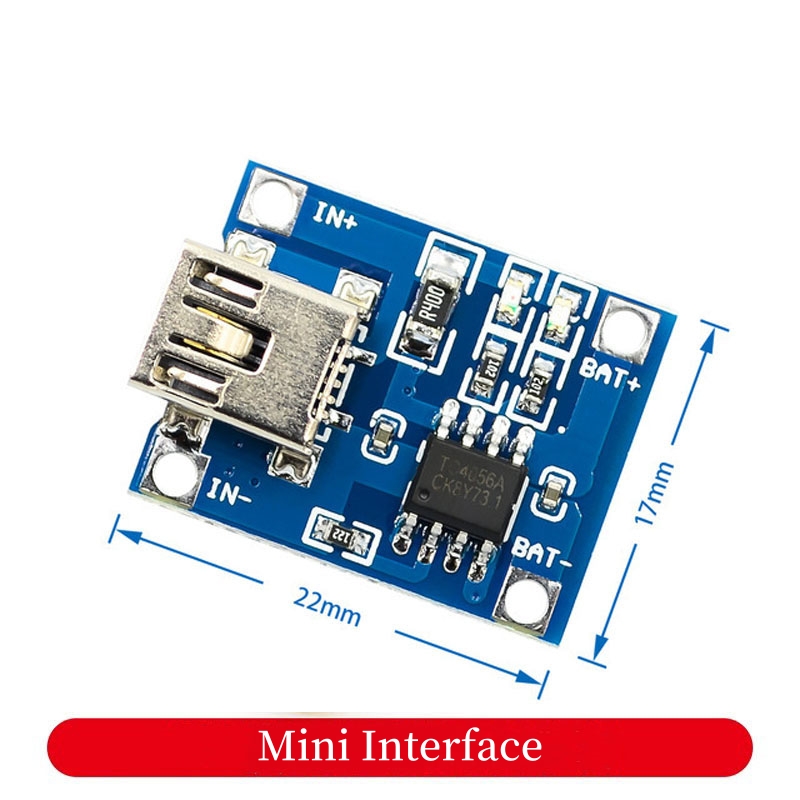

Name: 1A Lithium Battery Charging Source Module Mini Interface

Interface: MINI

Charging method: linear charging

Charging current: 1A

Accuracy: 1.5%

Input voltage: 4.5V-5.5V

Full charge voltage: 4.2V

Cannot reverse connect

Board size: 2.2 * 1.7CM

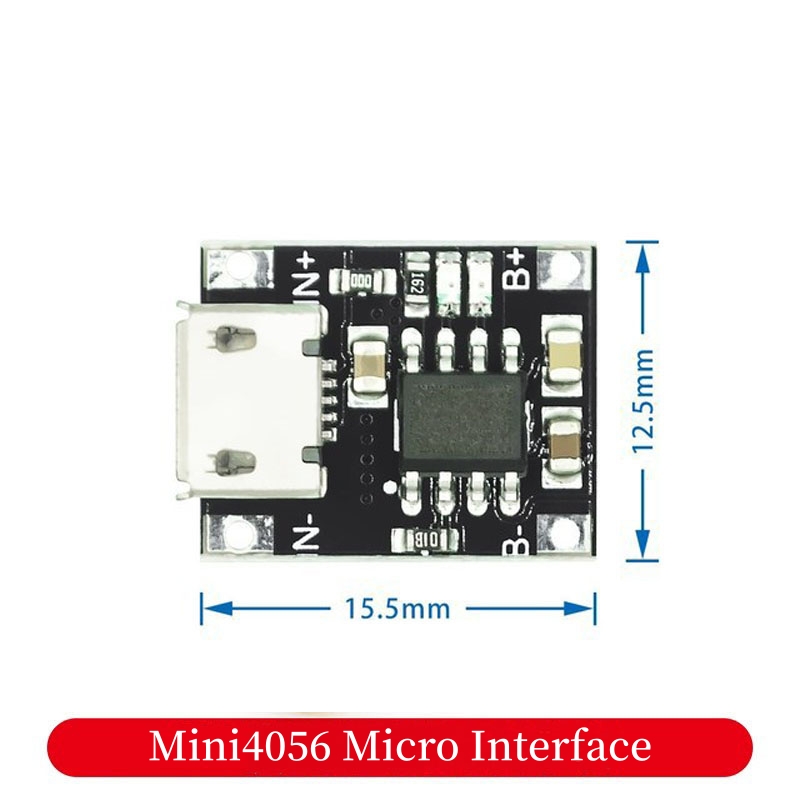

Name: Mini 4056 1A Lithium Battery MICRO Interface

Interface: MICRO

Charging current: 1A

Input voltage: 5V-6V

Output voltage: 4.2V

Board size: 1.25 * 1.55CM
