Isolated MOSFET Field-effect Transistor Module Replacement Relay FR120N LR7843 D4184

Isolated MOSFET Field-effect Transistor Module Replacement Relay FR120N LR7843 D4184Item NO.: MK00851

US$ 2.74
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Isolated MOSFET Field-effect Transistor Module Replacement Relay FR120N LR7843 D4184
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

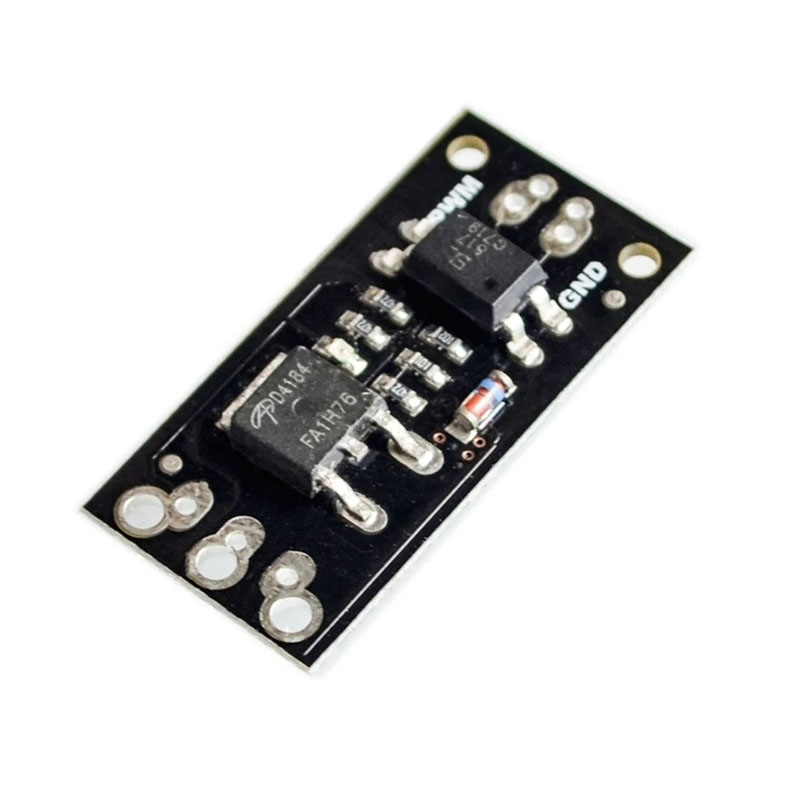

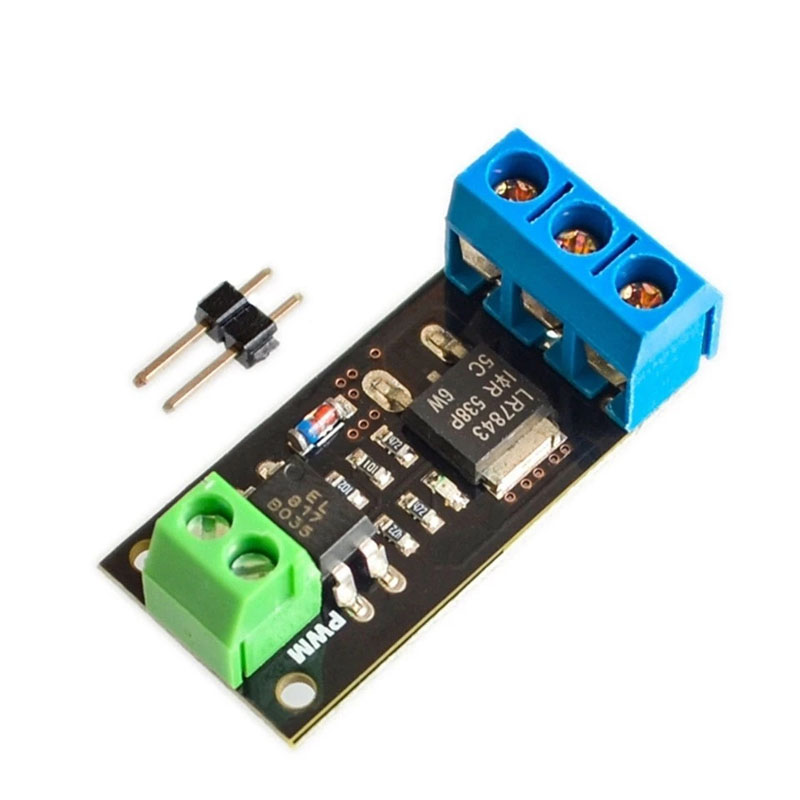

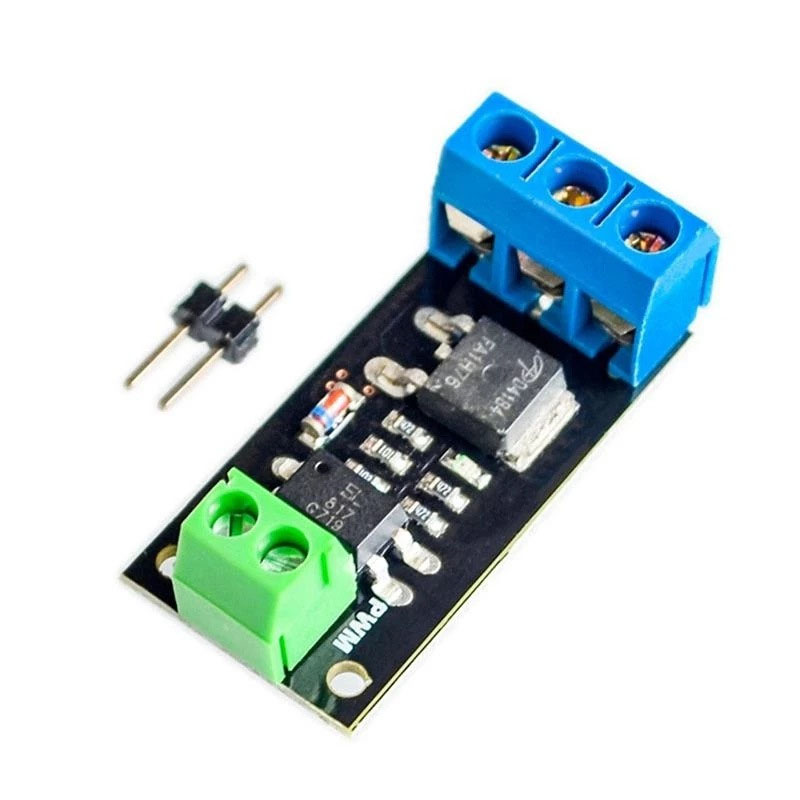

  • Isolated MOSFET Field effect Transformer Module



    Module Features:



    1. With optocoupler isolation, the control signal is isolated from the power supply of the controlled equipment, greatly improving the rigidity interference.

    2. Compatible with microcontroller and Arduino light control board, 3V or 5V signal

    3. High level start, low level stop, PWM speed regulation

    4. Widely used for controlling motor start stop, solenoid valve and other tributary equipment

    5. There are various specifications of MOS tubes available for selection,



    For example:

    FR120N: 100V 9.4A

    LR7843: 30V 161A

    AOD4184: 40V 50A

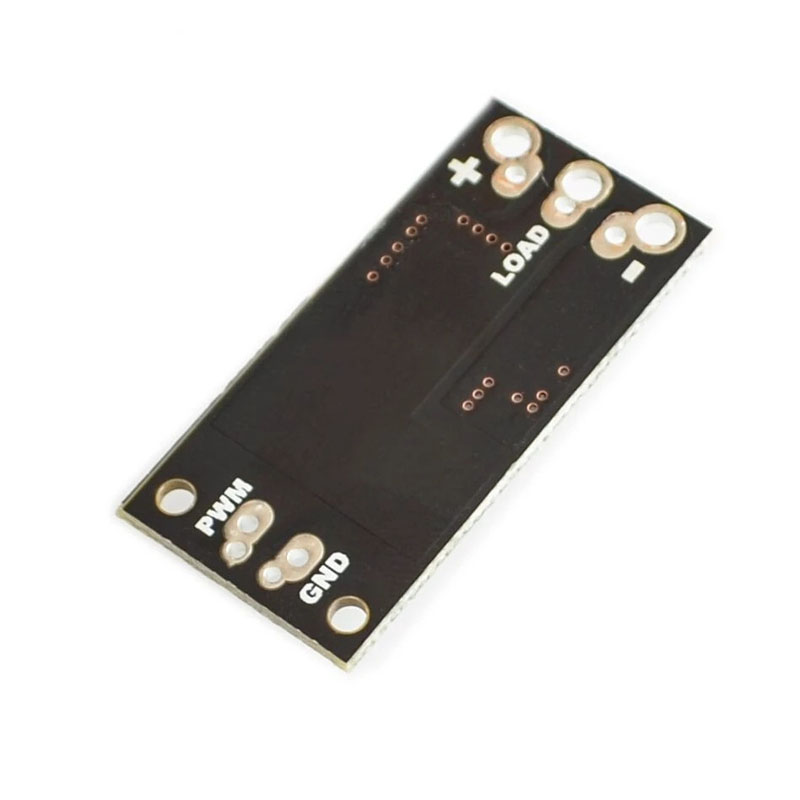

    6. The signal input side can weld wiring terminals or pins by itself, compatible with Breadboard

    7. Output can be soldered to terminals or directly soldered to wires

    8. Module size 23mm X 16mm with 2 2mm diameter screw holes with a spacing of 8mm between holes
