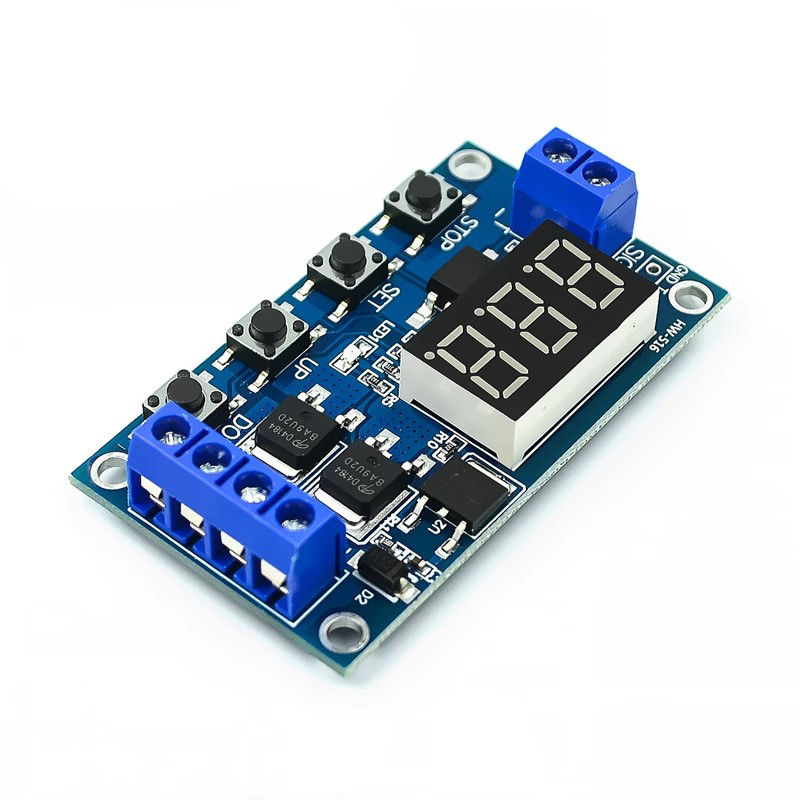

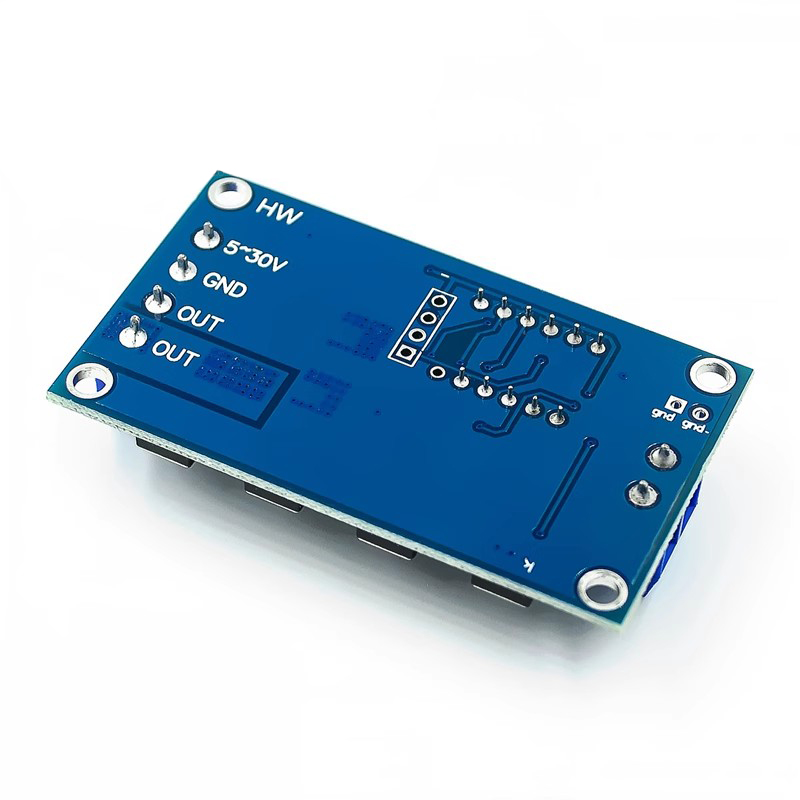

Trigger Cycle Timing Delay Switch Circuit Dual MOS Transistor Control Board Replaces Relay Module 12 24VItem NO.: Dual MOS

Dual MOS Transformer Control Board

Module features and usage:

1. Implement high-frequency fast and frequent on/off of the circuit, with unlimited switching times;

2. The on-off process will not generate noise, no electric sparks, and no electromagnetic interference;

3. The service life is longer than that of commonly used electromagnetic relays;

4. Adopting dual MOS parallel active output, lower internal resistance, higher current, strong power, 15A, 400W at room temperature, meeting the needs of most devices;

5. It is often used to control motors, light bulbs, LED light strips, DC motors, micro water pumps, solenoid valves, etc. Through this module, these devices can be easily controlled, which is very convenient.

Module highlights:

1. Wide voltage operation (5-36V), most devices can be used, very convenient;

2. The interface is clear and simple, powerful, and easy to understand, almost meeting all your needs;

3. It has a one button emergency stop function (STOP key) with reverse connection protection, and reverse connection does not burn;

4. Added a sleep mode, which automatically turns off the display after enabling it without any operation for 5 minutes; Wake up with any button;

5. Different OP, CL, and LOP parameters can be set, which are independent of each other and saved separately;

6. All set parameters are automatically saved after power off.

Product parameters:

1: Working voltage: DC 5V -36V;

2: Trigger signal source: High level trigger (DC 3.0V-24V) The signal ground is not in common with the system ground to improve the system's anti-interference ability (it can also be short circuited to common ground)

3: Output capacity: DC 5V-36V, continuous current 15A at room temperature, power 400W! Under auxiliary heat dissipation conditions, the maximum current can reach 30A.

4: Quiescent current: 15mA

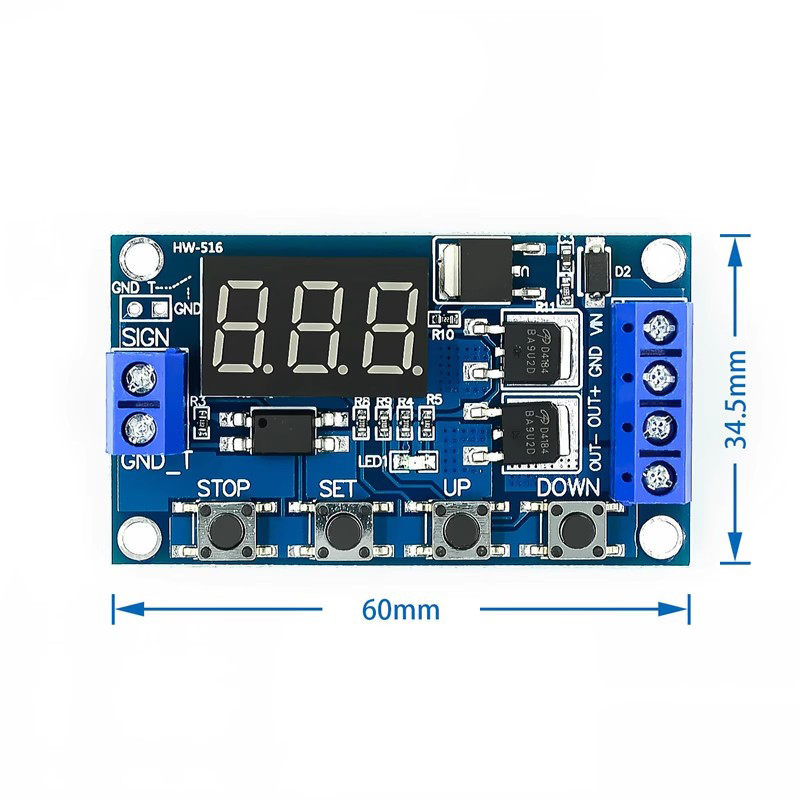

5: Service life: unlimited switching times; Working temperature: -40-85 ℃; Size: 6.0 * 3.4 * 1.2cm

6: Equipped with optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters for permanent memory after power outage.
