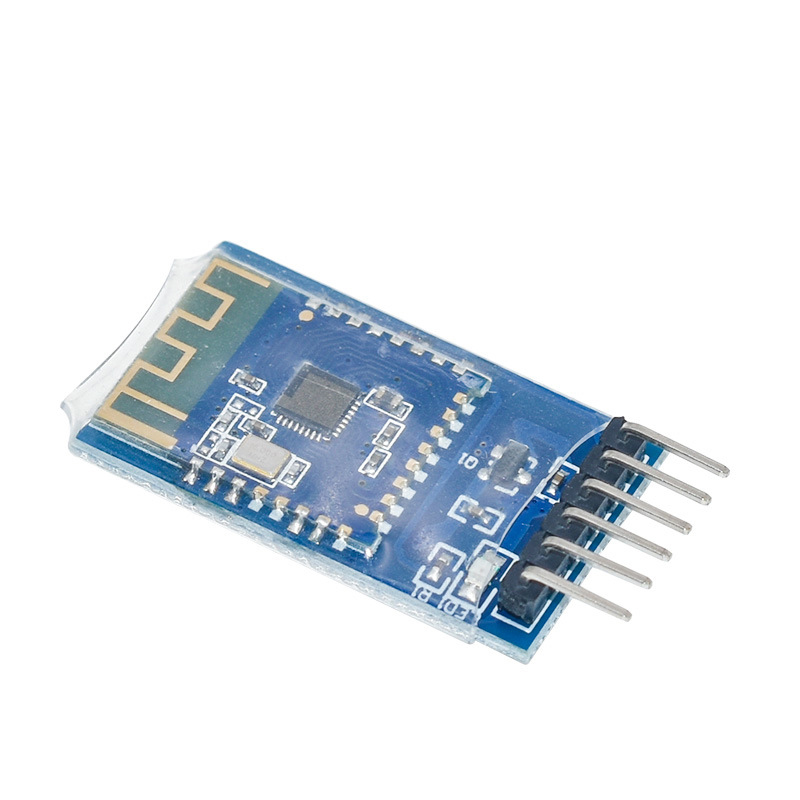

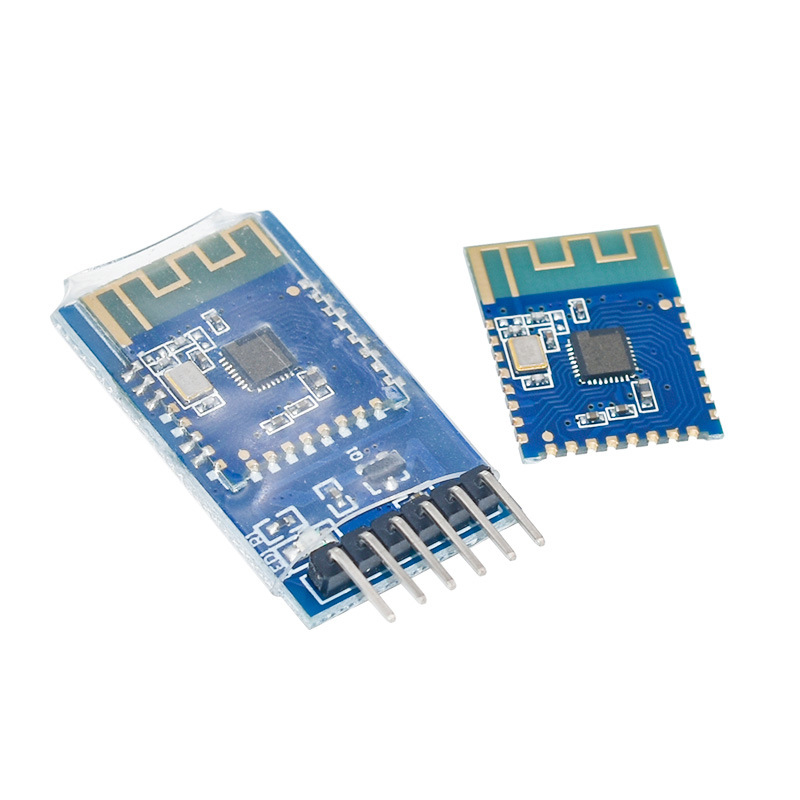

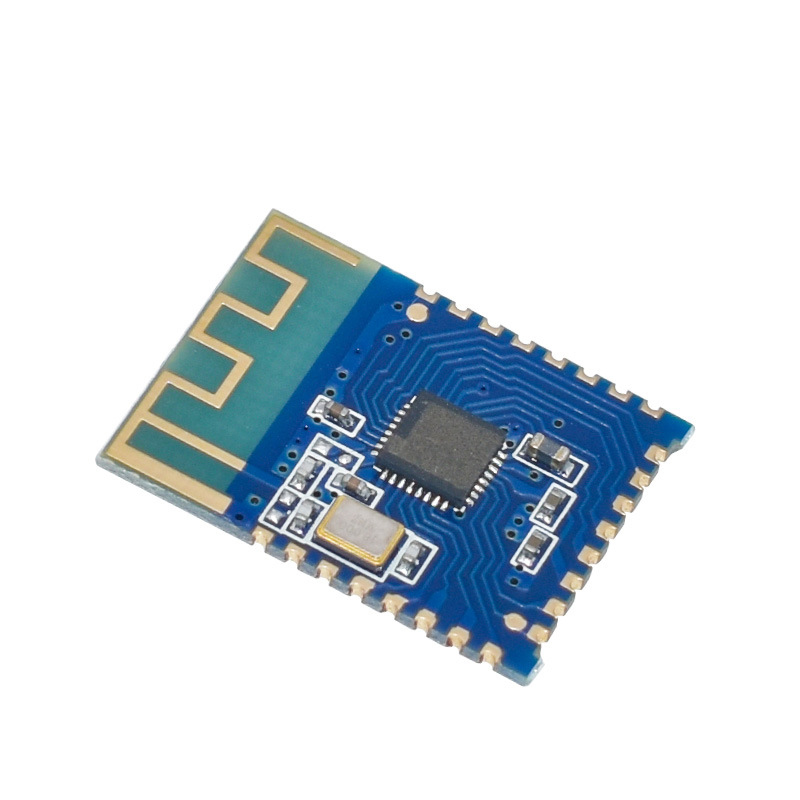

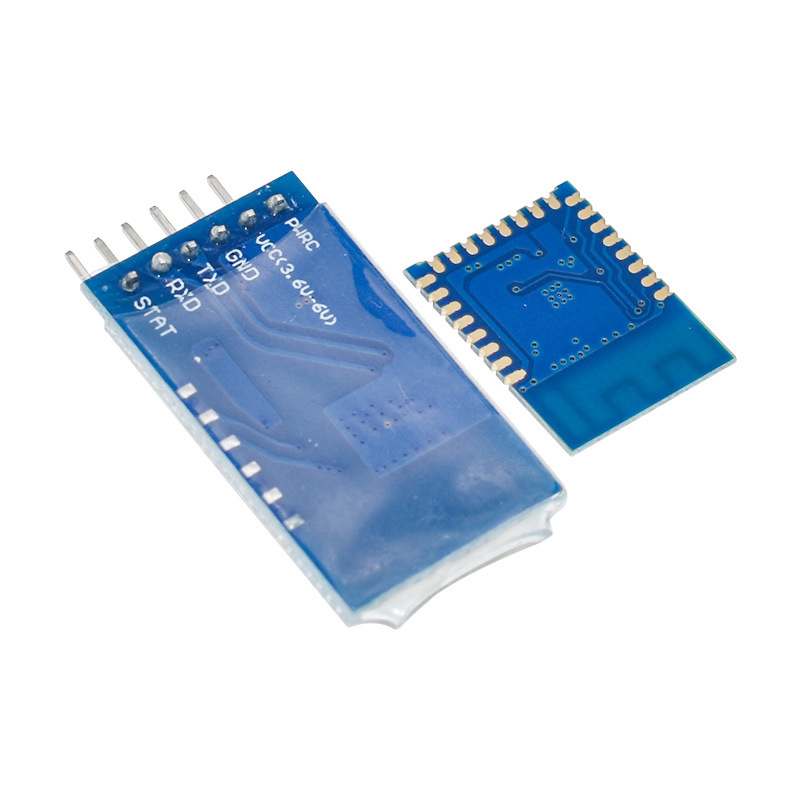

JDY-23 Bluetooth Serial Port Transparent

Product Introduction:

The JDY-23 transparent module is based on the Bluetooth 5.0 protocol standard, with a working frequency range of 2.4GHz, modulation method of GFSK, transmission power of 4db, transmission distance of 60 meters, and imported original chip design. It supports users to modify device names, baud rates, and other instructions through AT commands, making it convenient, fast, and flexible to use.

The JDY-23 Bluetooth module can achieve data transmission between modules and mobile phones, and by default, BLE Bluetooth can be quickly used for product applications without configuration.

Product Parameters:

● Model: JDY-23

● Operating frequency band: 2.4G

● Transmission power: 4db()

● Communication interface: UART

● Operating voltage: 1.8V – 3.6V

● Operating temperature: -40 ℃ -80 ℃

● Antenna: built-in PCB antenna

● Receiving sensitivity: -97dbm

● Transmission distance: 60 meters

● Master slave support: Slave machine

● Module size: 19.6 * 14.94 * 1.8 mm (length, width, height)

● Bluetooth version: BLE 5.0 (compatible with BLE 4.0 and BLE 4.2)

● Wake up state current: 800uA (with broadcast)

● Current in shallow sleep state:<50uA (with broadcast)

● Deep sleep current: 9uA (no broadcast)

● Command parameter saving: The parameter configuration and power-off data are saved

● SMT welding temperature:<260 ℃

● RF TX/RX peak current: 5mA
