RCWL-0801 VL53L0X Laser Ranging Module ToF Ranging Serial Port Directly Outputs Distance ValuesItem NO.: RCWL-0801
-
Customized Requirements
- Quantity
-
-
- Product Name: RCWL-0801 VL53L0X Laser Ranging Module ToF Ranging Serial Port Directly Outputs Distance Values
- Item NO.: RCWL-0801
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: VL53L0X , ToF , Laser Ranging Module , RCWL-0801
- Creation Time: 2024-05-07

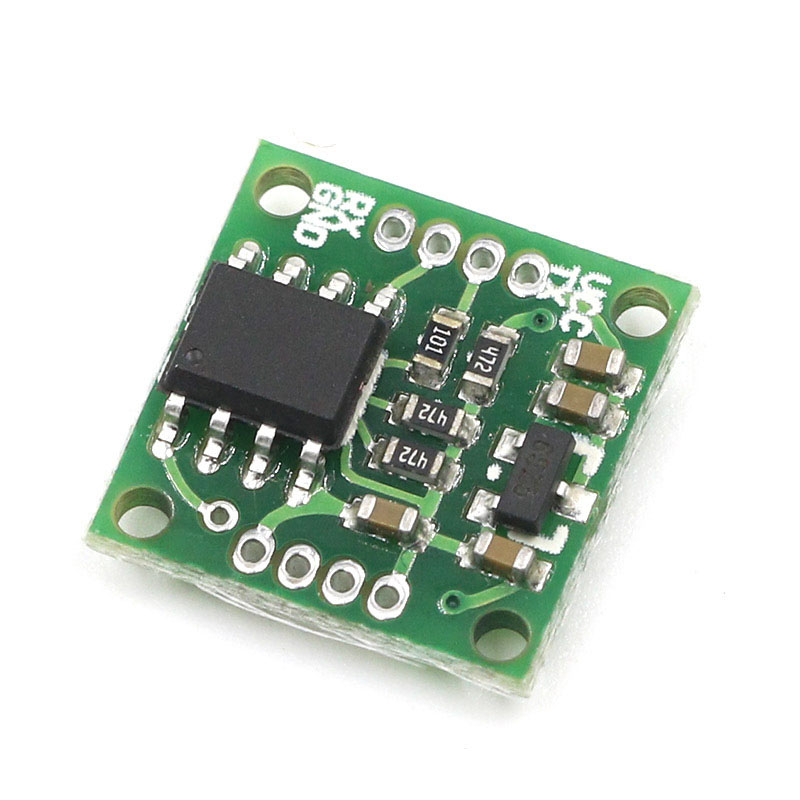

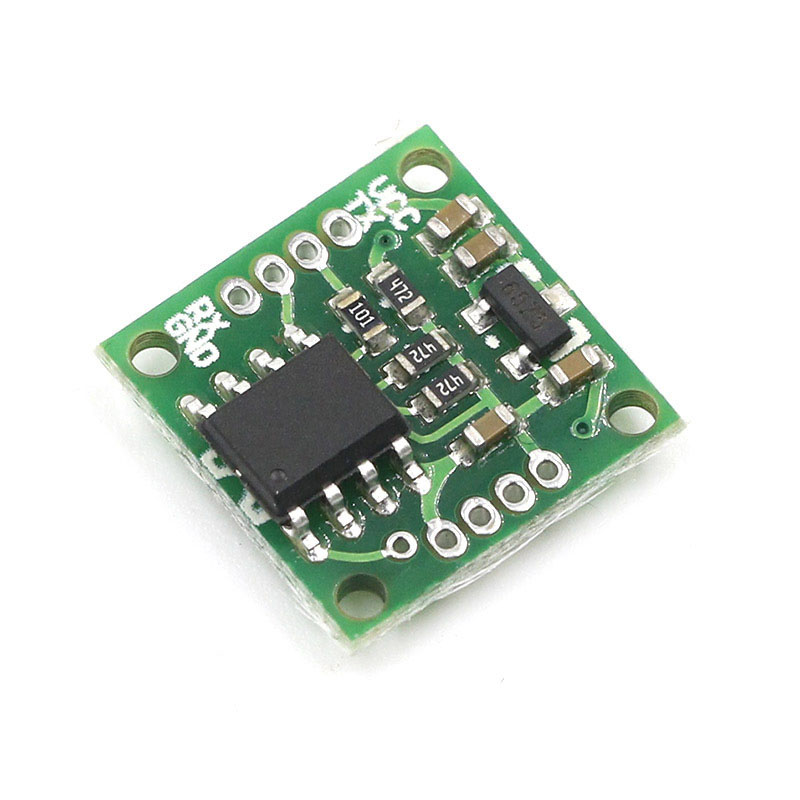

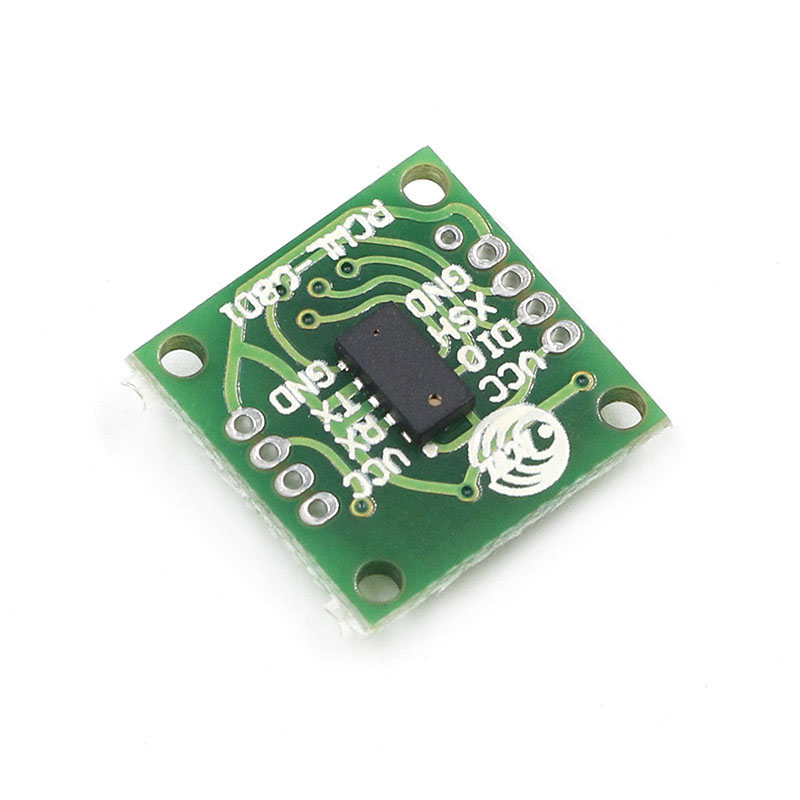

RCWL-0801 VL53L0X Laser Ranging Module
Product Introduction:
RCWL-0801 is a 3.3V-5V power supply ranging module using high-quality laser ranging sensor VL53L0X. The module adopts a high-performance MCU with an internal integration of VL53L0X arithmetic filtering algorithm, and can directly output the measured distance value through the serial port.
Product Features:
1. Using high-quality laser ranging sensors
2. The sensor uses a Class 1 laser that meets the standard ICE 60825 1:2014 and does not harm the human eye.
3. 3.3V-5V wide voltage power supply
4. Working current: 30mA
5. Quiescent current: 16mA
6. Minimum test cycle: 30mS
7. Measurement range width: 0-200cm (actual effect is good within 1, 2M)
8. Product size: 1.25 cm * 1.25 cm
9. Lead-free process
