Home>Electronic Modules>Wireless Module>JDY10 Bluetooth 4.0 Module BLE Bluetooth Serial Port Transparent Module Compatible with CC2541 Slave Bluetooth
JDY10 Bluetooth 4.0 Module BLE Bluetooth Serial Port Transparent Module Compatible with CC2541 Slave Bluetooth

JDY10 Bluetooth 4.0 Module BLE Bluetooth Serial Port Transparent Module Compatible with CC2541 Slave BluetoothItem NO.: JDY10

US$ 4.27
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
JDY10 Bluetooth 4.0 Module BLE Bluetooth Serial Port Transparent Module Compatible with CC2541 Slave Bluetooth
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

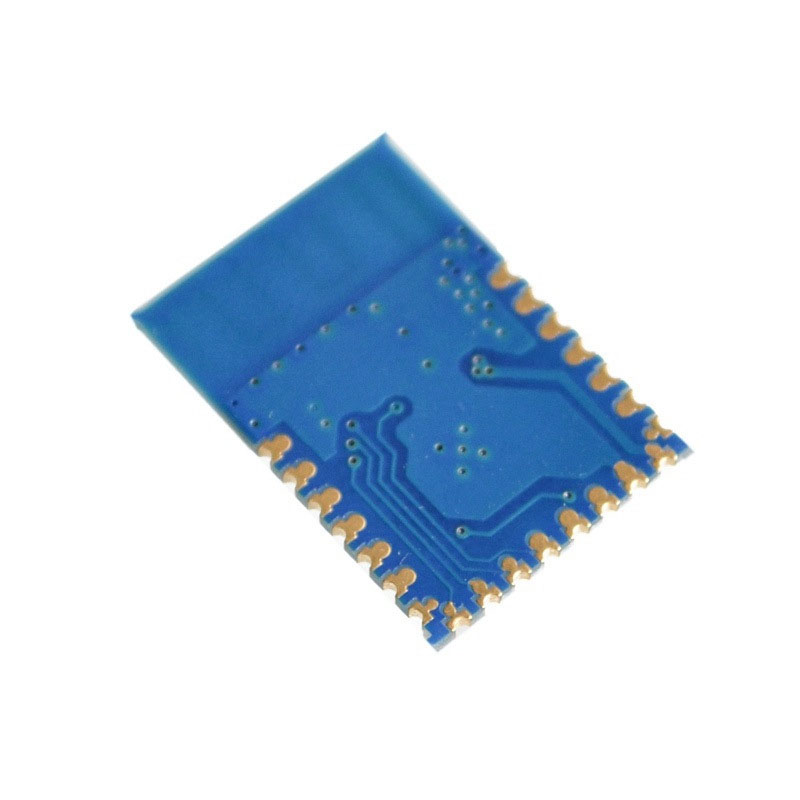

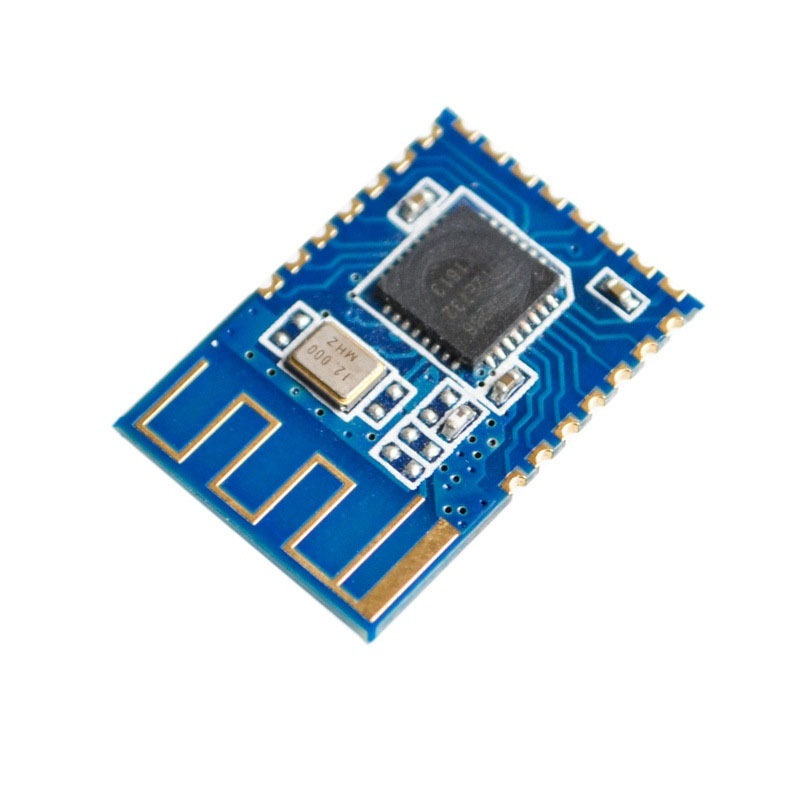

  • JDY10 Bluetooth 4.0 Module



    Product Introduction:



    The JDY-10 transparent transmission module is based on the Bluetooth 4.0 protocol standard, with a working frequency range of 2.4GHz, modulation method of GFSK, transmission power of 8dB, transmission distance of 80 meters, and features low power consumption, small size, strong signal, and stable data transmission.



    Model: JDY-10 Bluetooth 4.0 slave module

    Kernel: M0

    Communication interface: serial port

    Working voltage: 1.9-3.6V

    Communication distance: 100 meters (some modules have higher transmission power, and the communication distance is much longer than the previous modules)

    Working current: 90ua

    Suspend mode: 14 uA

    Module is: Bluetooth 4.0 slave



    Product features:



    1: Supports Android and iOS mobile data penetration

    2: Supports low power consumption (standby current can reach several uA)

    3: Supports GPIO and UART peripheral interfaces

    4: Support AT instruction operation

    5: Certified to FCC/CE and other standards



    Product application scope:



    1: Bluetooth LED lighting

    2: Motor adjustment and other products

    3: Anti loss alarm and other products

    4: Sports and Health Healthcare

    5: Small household appliances

    6: Automotive Electronics
