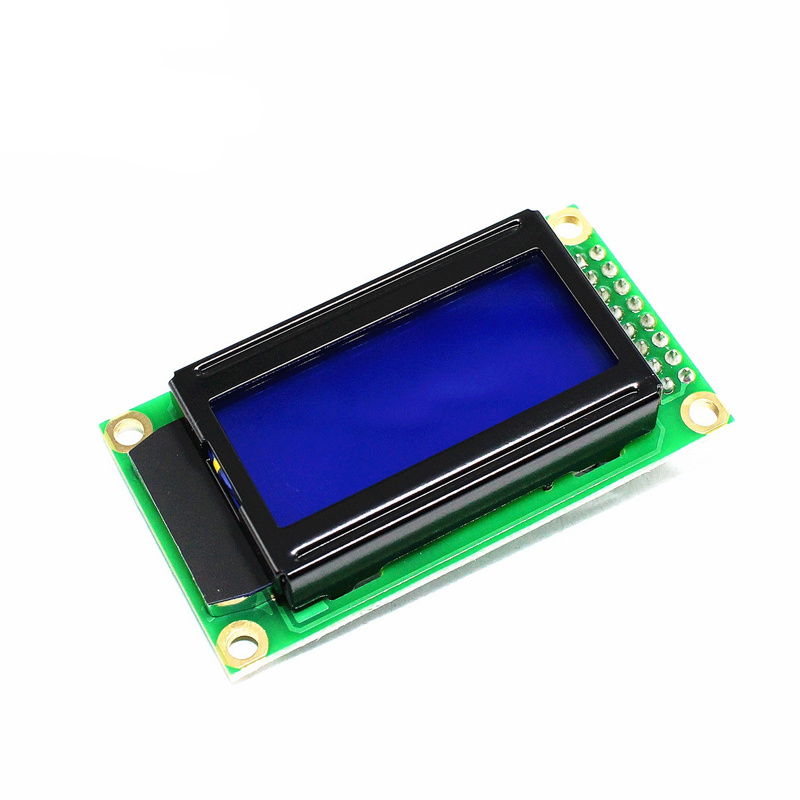

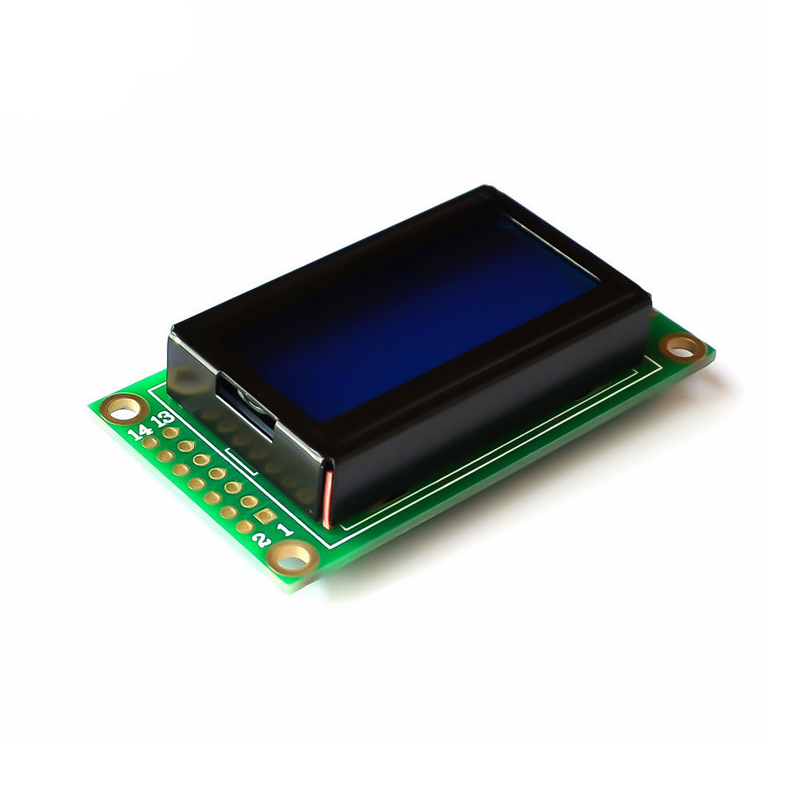

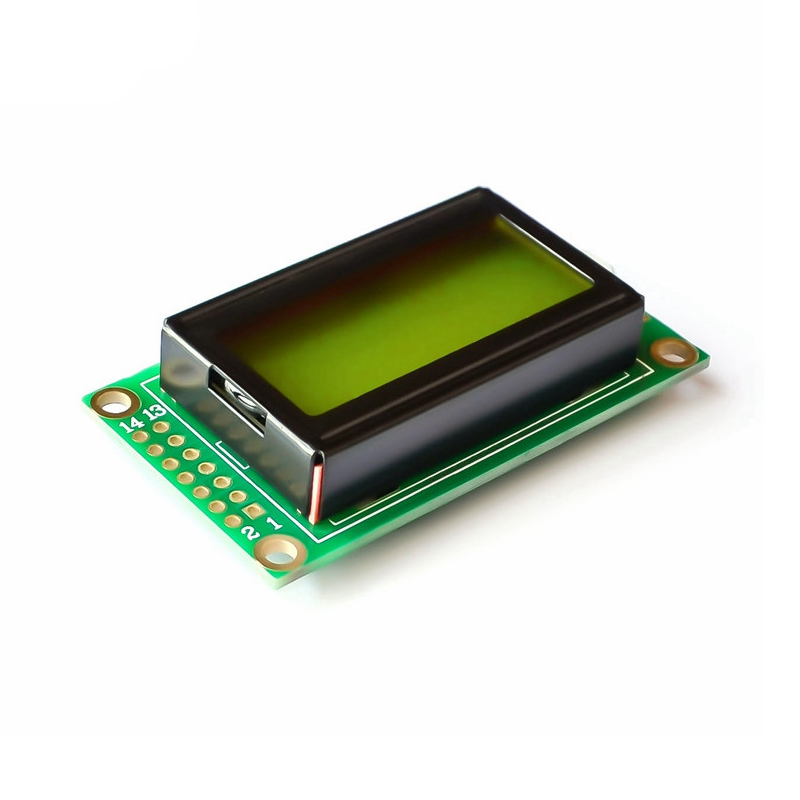

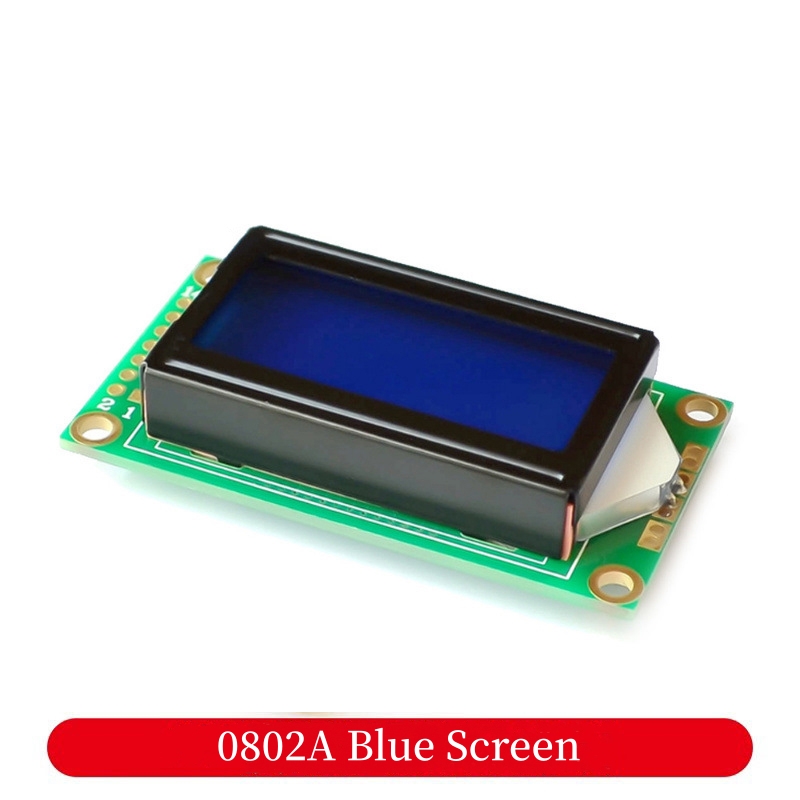

  • LCD 0802A Display Module



    Product Introduction:



    The character LCD display module is a dot matrix LCD display module specifically designed for displaying letters, numbers, symbols, etc. Divided into 4-bit and 8-bit data transmission methods. Provide 5 × 7 dot matrix+cursor display mode. Provide a display data buffer character generator CGRAM, which can be used to store 8 self-defined 5 characters × The font data of 8-point matrix graphic characters. Provides rich command settings: clear display; Cursor return to origin; Display on/off; Cursor on/off; Flashing display characters; Cursor shift; Display shifts, etc. Provide an internal power on automatic reset circuit, which automatically initializes the module when the external power supply voltage exceeds+4.5V, and sets the module to the default display working state. The display content is 2 lines, with each line displaying 8 characters and each character size being 5 × 8-point matrix.



    Product Parameters:



    ● Model: 0802A

    ● Dot matrix: 8X2

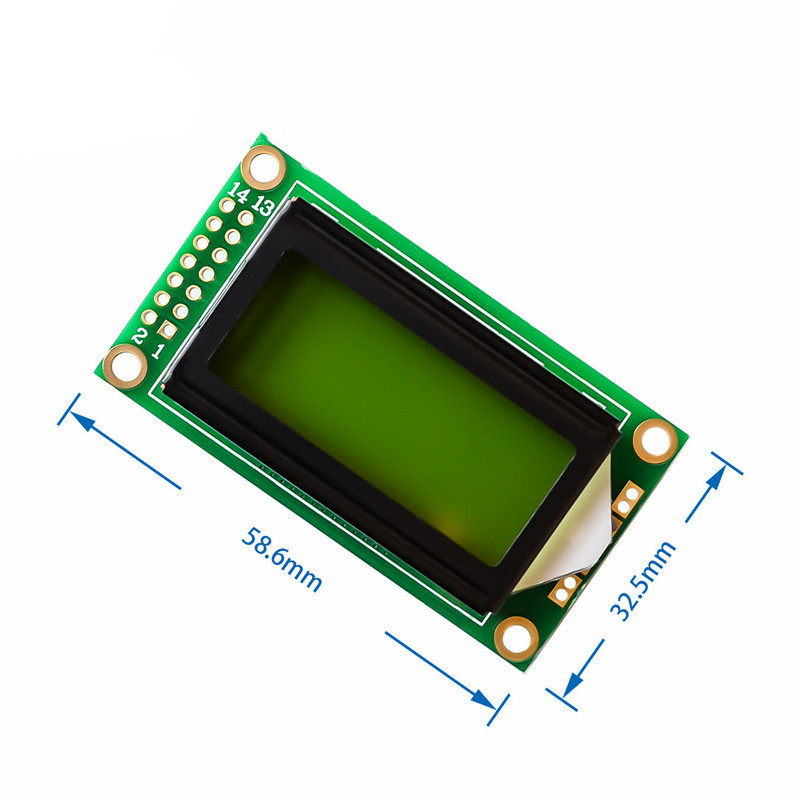

    ● External dimensions: 58X32mm

    ● Visual area size: 38X16mm

    ● Working voltage: 5.0V/3.3V

    ● Controller: SPLC780D

    ● Interface mode: dual parallel port 14pin
