Home>Electronic Modules>Power Module>LED Digital Display Two Wire AC Voltage Meter Two Wire Digital Voltage Meter AC220V Power Supply 70V~500V

LED Digital Display Two Wire AC Voltage Meter Two Wire Digital Voltage Meter AC220V Power Supply 70V~500VItem NO.: MK01565

US$ 3.59

Model

Quantity: 1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs

Customized Requirements

Quantity: Stock ( 149999985 )

Estimate Shipping Cost

Adding to cart succeed

LED Digital Display Two Wire AC Voltage Meter Two Wire Digital Voltage Meter AC220V Power Supply 70V~500V

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: LED Digital Display Two Wire AC Voltage Meter Two Wire Digital Voltage Meter AC220V Power Supply 70V~500V
- Item NO.: MK01565
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Two Wire , LED Digital Display , AC Voltage Meter , Two Wire Digital Voltage Meter , AC220V , 70V~500V
- Creation Time: 2024-04-09

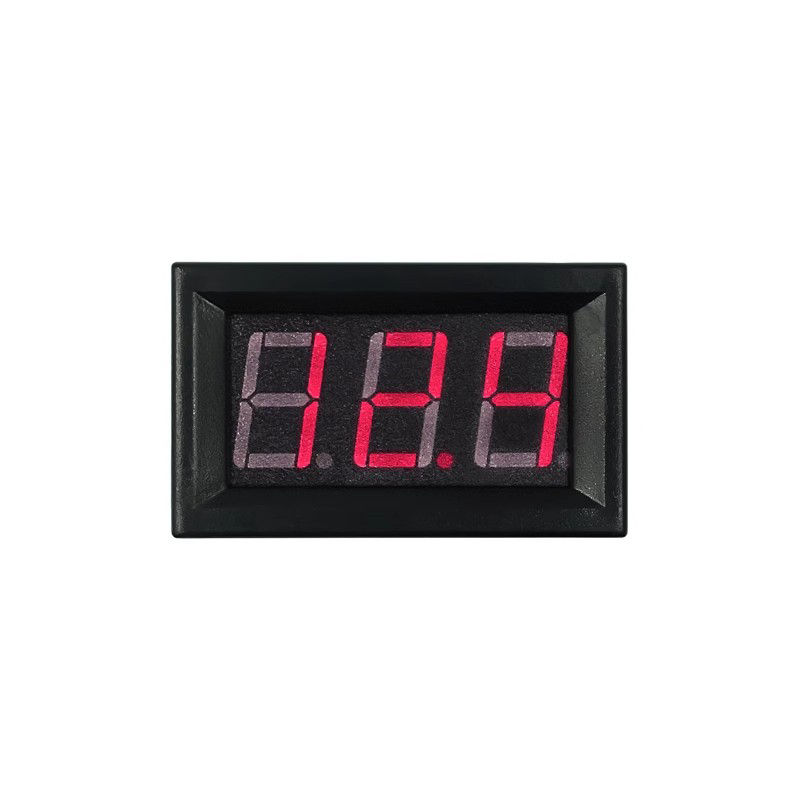

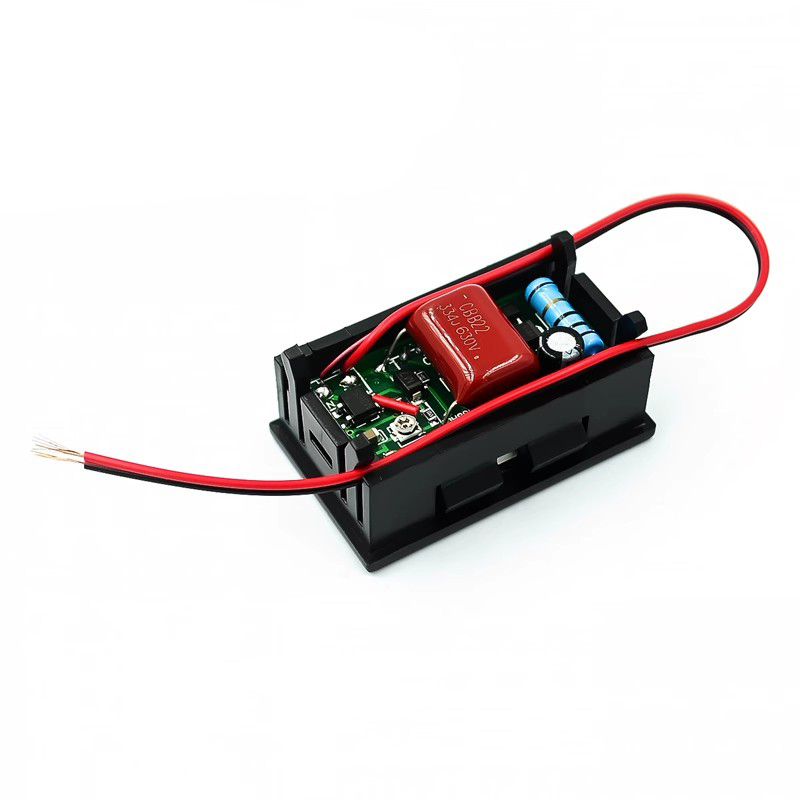

LED Digital Display Two Wire AC Voltage Meter

Technical parameters:

Measurement range: AC70V-500V

Power supply range: Without the need for additional power supply, directly use the measured voltage as the power supply, with the same range as above

Input: AC500V. Note: If the input voltage is higher than 500V, it may be damaged!

Allowable error: ± 1%;

Input impedance:>1M Ω

Working current: red<23mA, green<18mA, blue<17mA

Refresh speed: approximately 300mS once

Display method: Three position "0.56" LED digital tube

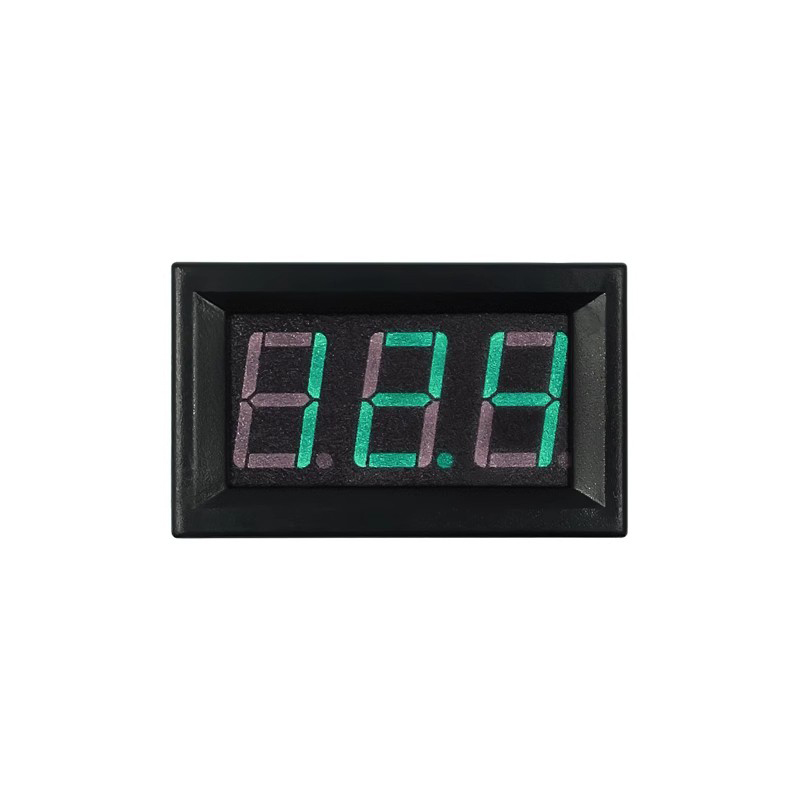

Display color: red, green, blue optional

Lead length: 20cm

Overall dimensions: 48 x 29 x 22 mm, length x width x thickness;

Opening size: 46 x 27 mm

Net weight: 18g

Gross weight: 25g

Working temperature: -20 ℃~65 ℃
