STM32F103C8T6/C6T6 STM32F030C8T6 System Board SCM Core Board STM32 ARM Development Learning Experimental BoardItem NO.: MK01583
-
Customized Requirements
- Quantity
-
-
- Product Name: STM32F103C8T6/C6T6 STM32F030C8T6 System Board SCM Core Board STM32 ARM Development Learning Experimental Board
- Item NO.: MK01583
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: Core Board , STM32F103C8T6/C6T6 , STM32F030C8T6 , System Board , SCM , STM32 ARM , Development Learning Experimental Board
- Creation Time: 2024-03-21

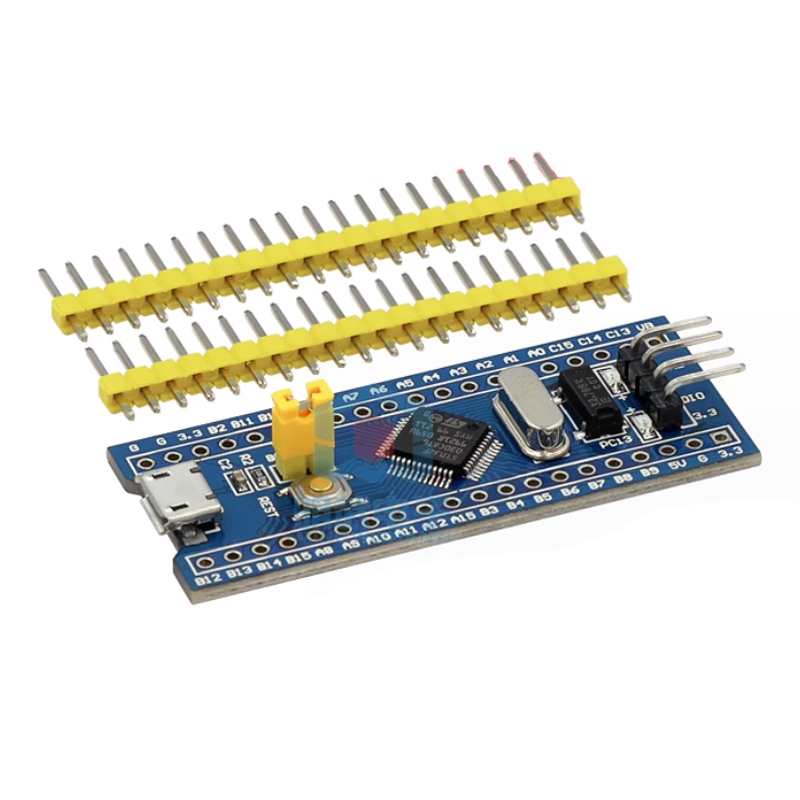

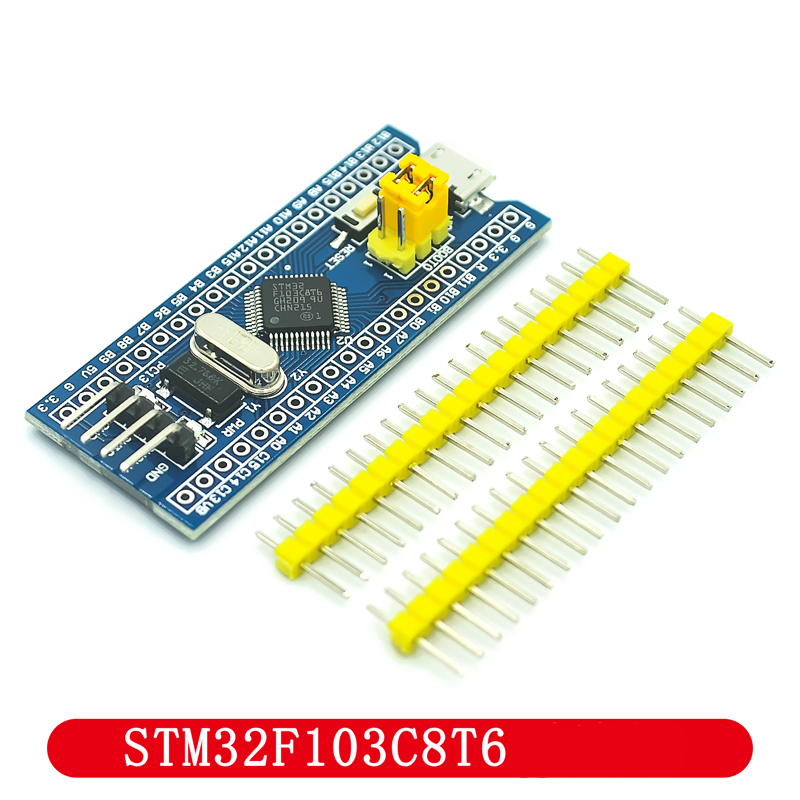

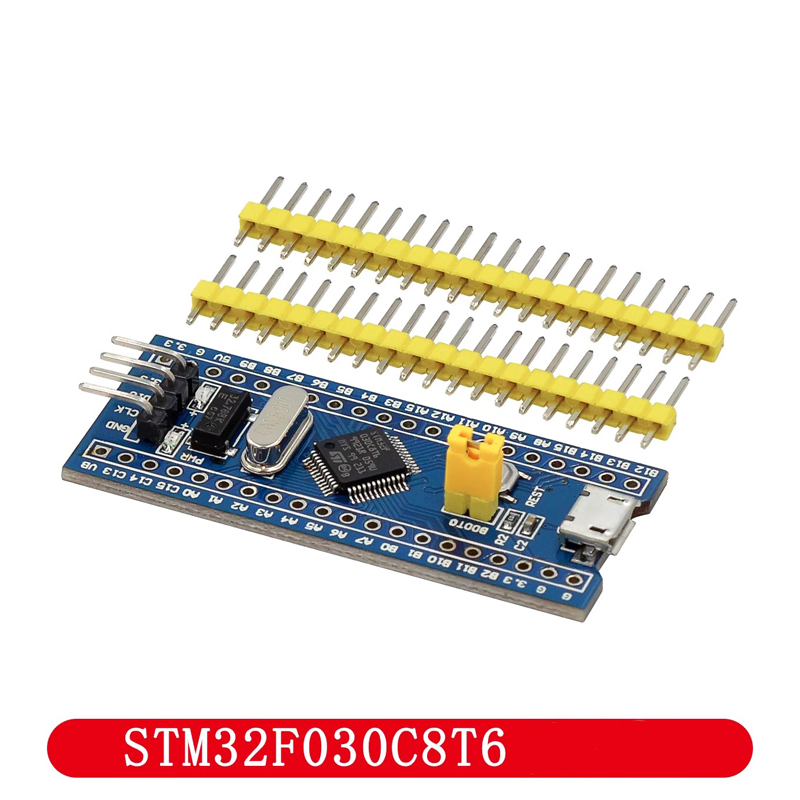

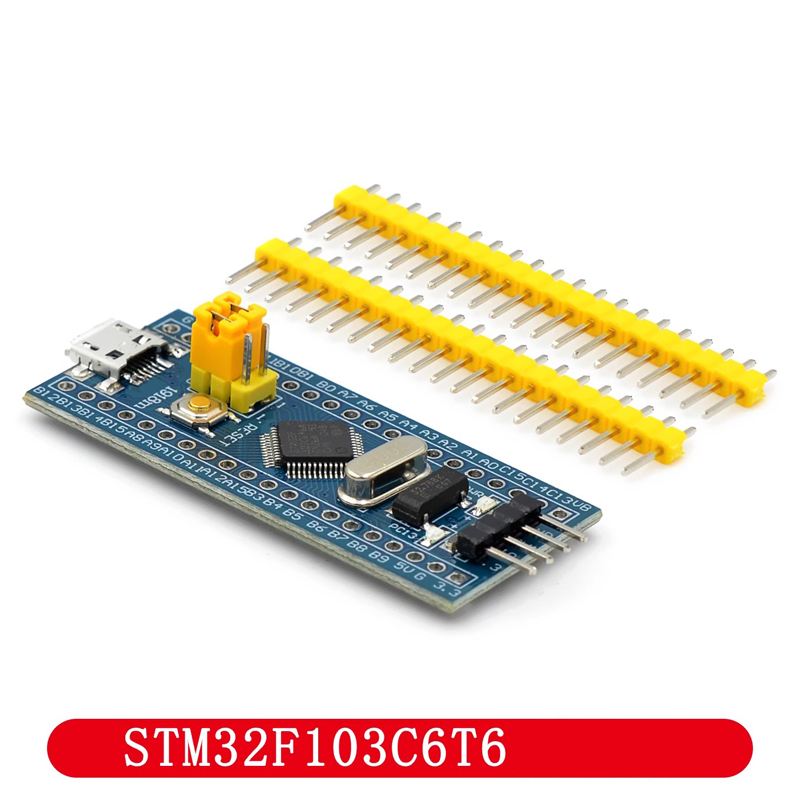

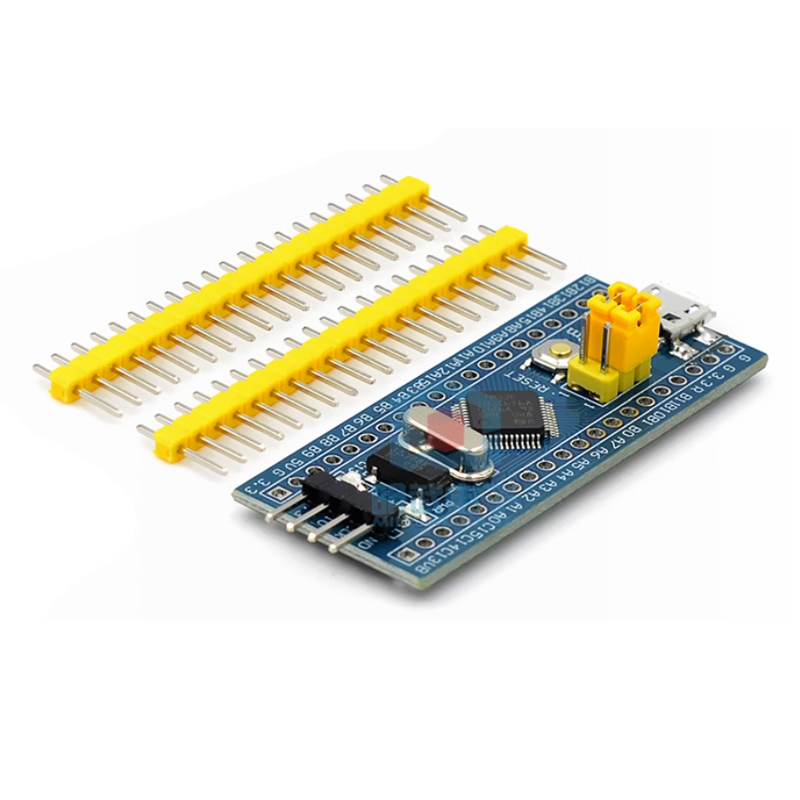

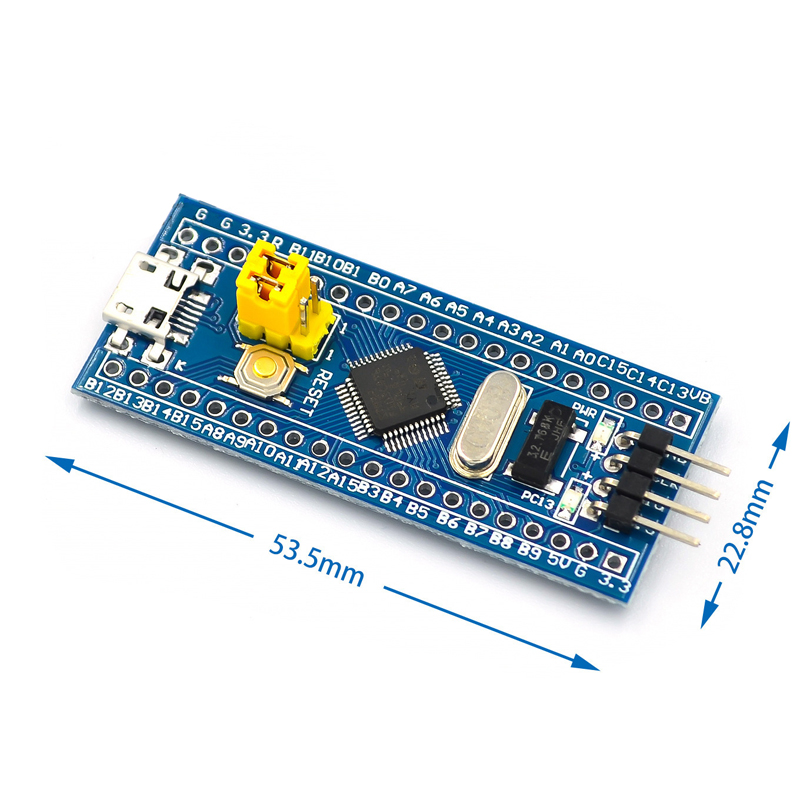

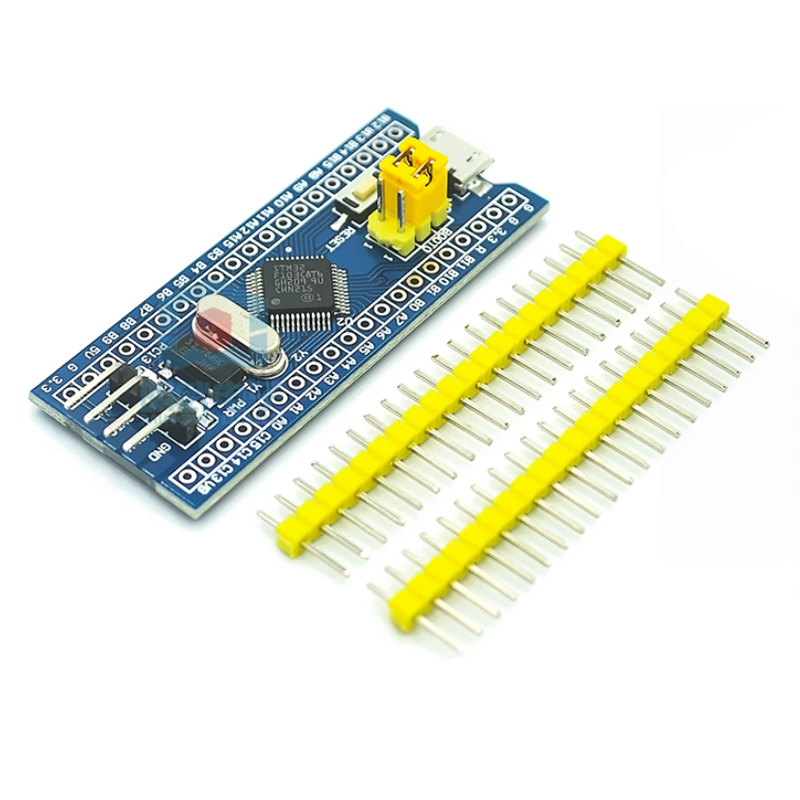

STM32F103C8T6/C6T6 STM32F030C8T6 System Board
MCU Introduction:
1. Up to 72MHz operating frequency, up to 1.25DMips/MHz during memory 0 wait cycle access
2. Single cycle multiplication and hardware division
3. 64K flash program memory
4. 20K Bytes SRAM
5. 2.0~3.6V power supply and I/O pins
6. Power on/power off reset (POR/RDR), programmable voltage monitor (PVD)
7. 4-16MHz crystal oscillator
8. Embedded factory adjusted 8MHz RC oscillator
9. Embedded 10KHz RC oscillator with calibration
10. PLL generating CPU clock
11. 32KHz RTC oscillator with calibration function
12. Sleep, shutdown, and standby modes
13. VBAT supplies power to RTC and backup registers
14. 2 12 bit analog-to-digital converters with 1 us conversion time (up to 16 input channels)
15. DMA
16. 37 fast I/O ports, all of which can be mapped to 16 external interrupts; Almost all Almost all can tolerate 5V signals
17. 3 universal timers, 1 advanced timer
18. 2 (SPI1, SPI2)
19. 2 (I2C1, I2C2)
20. 3 (USART1, USART2, USART3)
21. 1 (USB 2.0 full speed)
22. 1 (2.0B active)
