LM2596S High-power Step-down Module DC-DC Adjustable Stabilized Power Supply Module with Digital DisplayItem NO.: MK03294
-
Customized Requirements
- Quantity
-
-
- Product Name: LM2596S High-power Step-down Module DC-DC Adjustable Stabilized Power Supply Module with Digital Display
- Item NO.: MK03294
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Digital Display , DC-DC , LM2596S , High-power Step-down Module , Adjustable Stabilized Power Supply Module
- Creation Time: 2024-05-13

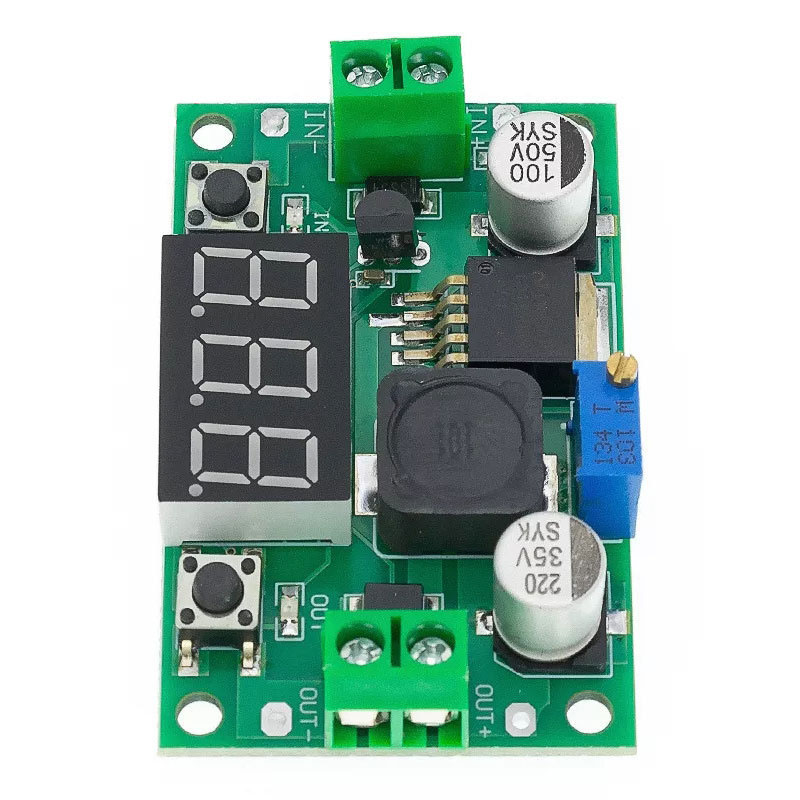

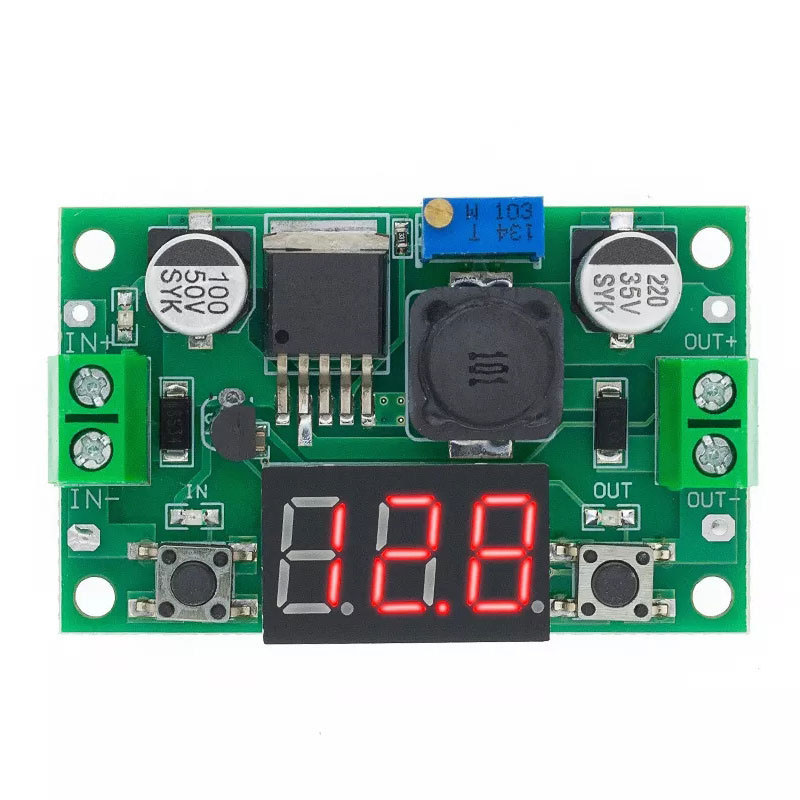

LM2596S High Power Step Down Digital Display
Product Introduction:
● With power indicator light
● With voltmeter display and advanced microprocessor, the error of voltmeter is ± 0.05V, and the range is 0~40V. (Note: to ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4V)
● Gently touch the right button to switch between measuring input or output voltage, and an indicator light displays which voltage is being measured, and saves the settings, even if the power is turned off and turned on again
● The voltmeter can be closed, which can be easily realized by tapping the left button when not needed
● Equipped with wiring terminals, easy to use without soldering iron, and retaining soldering wire connection points
● Input voltage 4.0-40V (The input voltage must be more than 1.5V higher than the output voltage.)
● Adjustable output voltage range: 1.25V~37V, continuously adjustable (input voltage must be 1.5V higher than output voltage)
● The maximum output current can reach up to 3A, and the normal stable working current is 2A
● Adopting an internal oscillation frequency of 150KHz, it is a second-generation switching voltage regulator with low power consumption and high efficiency
● Equipped with overheating protection and short circuit protection functions
