Lithium Battery Pack Power Indicator Panel 6/12/24/36/48V Electric Vehicle Battery Power DisplayItem NO.: 612243648V
-
Customized Requirements
- Quantity
-
-
- Product Name: Lithium Battery Pack Power Indicator Panel 6/12/24/36/48V Electric Vehicle Battery Power Display
- Item NO.: 612243648V
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Lithium Battery Pack Power Indicator Panel , Electric Vehicle Battery Power Display
- Creation Time: 2024-04-19

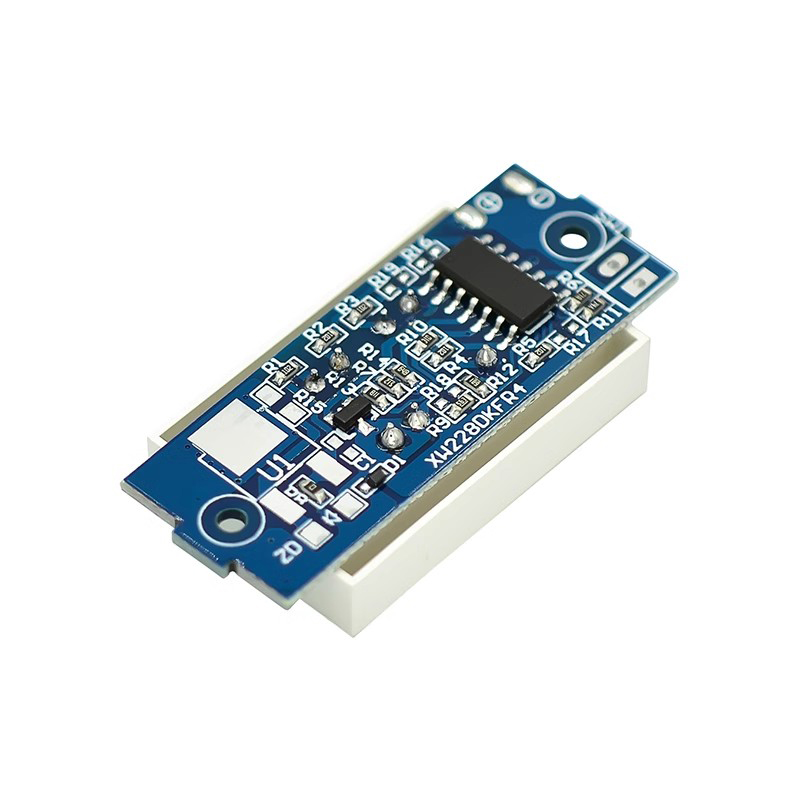

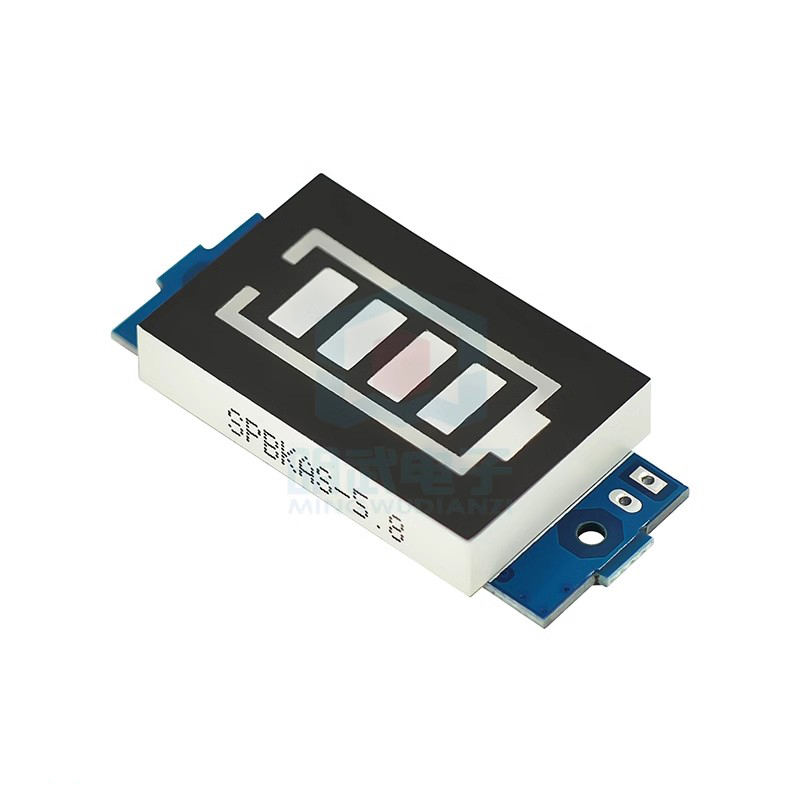

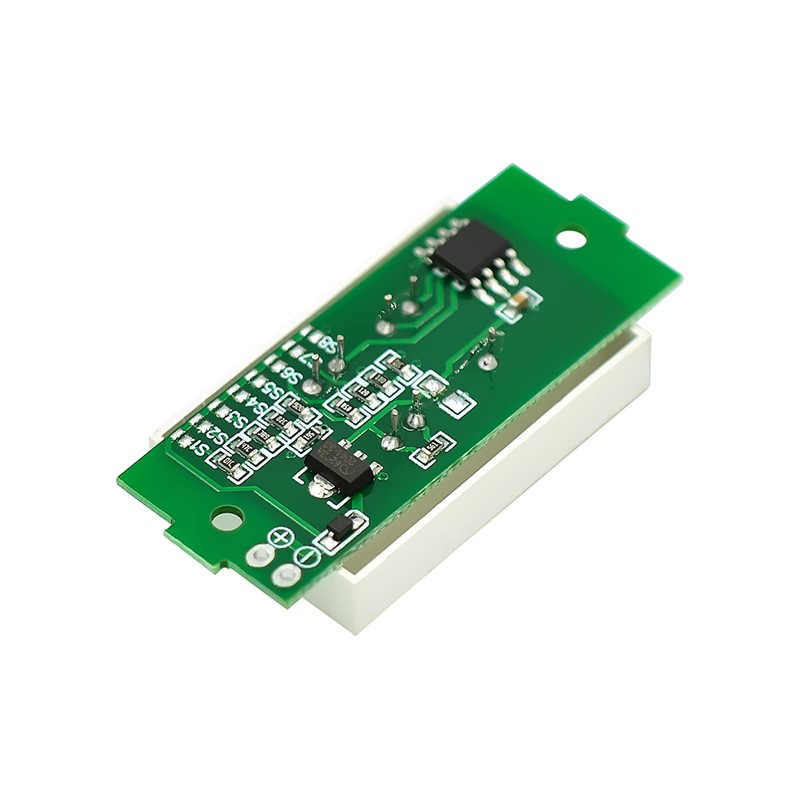

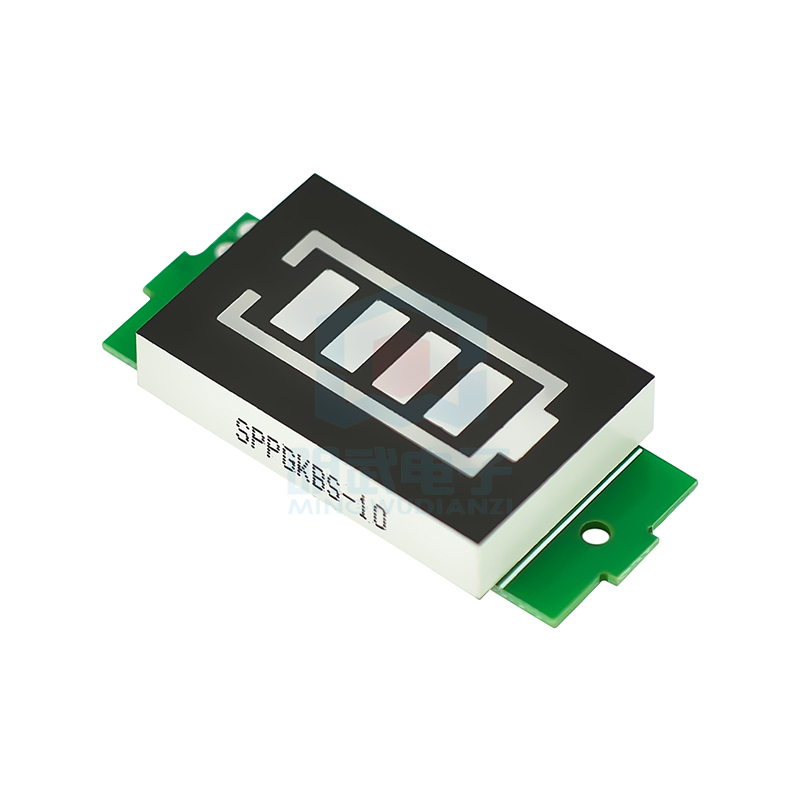

Lithium Battery Pack Power Indicator Panel
Product Description:
Warm sound prompt: This product is not waterproof. If used outdoors, please make it waterproof as electronic components need to be used in a dry environment. A battery level display board that can be used for lithium-ion lead-acid nickel hydrogen batteries.
Usage: Connect the positive and negative terminals of the display board to the positive and negative terminals of the tested battery, and the digital tube will display the real-time battery level
Display battery parameters:
Battery voltage greater than N × 3.3V, 1 grid of power (note: N represents the number of battery cells) (The following data is a reference value, with an error range of about 2%. Do not take pictures with high requirements)
Battery voltage greater than N × 3.5V, 2-bar battery on
Battery voltage greater than N × 3.7V, 3 grid power on
Battery voltage greater than N × 3.9V, 4 grid power on
Battery voltage less than N × 3.3V, all 4 segments display off, indicating that the battery is below 3.3V, and it is time to charge the battery.
Color of the digital tube: red outer frame, yellow green and blue inner display options, fully charged battery with 4 bright cells
4V lead-acid voltage range:
The battery voltage is greater than 3.3V, and the battery level is 1 grid when lit
The battery voltage is greater than 3.5V, and the battery level is 2 bars when lit
The battery voltage is greater than 3.7V, and the battery level is 3 cells on
The battery voltage is greater than 3.9V, and the battery level is 4 cells on
6V lead-acid voltage (2 series of lithium iron phosphate batteries can be used)
The battery voltage is greater than 5.6V, and the battery level is 1 grid when lit
The battery voltage is greater than 5.9V, and the battery level is 2 bars when lit
The battery voltage is greater than 6.2V, and the battery level is 3 cells on
The battery voltage is greater than 6.6V, and the battery level is 4 cells on
12V lead-acid voltage range: (4 series of lithium iron phosphate batteries can be used)
The battery voltage is greater than 11.0V, and the battery level is 1 grid on
The battery voltage is greater than 11.8V, and the battery level is 2 cells on
The battery voltage is greater than 12.3V, and the battery level is 3 cells on
The battery voltage is greater than 13.1V, and the battery level is 4 cells on
24V lead-acid voltage range: (8 series lithium iron phosphate batteries can be used)
The battery voltage is greater than 22.3V, and the battery level is 1 grid
The battery voltage is greater than 23.5V, and the battery level is 2 cells on
The battery voltage is greater than 24.7V, and the battery level is 3 cells on
The battery voltage is greater than 26.3V, and the battery level is 4 cells on
36V lead-acid voltage range: (12 series lithium iron phosphate batteries can be used) Note: 36V lead-acid exceeding 43V will burn out
The battery voltage is greater than 33.9V, and the battery level is 1 grid when lit
The battery voltage is greater than 35.9V, and the battery level is 2 cells on
The battery voltage is greater than 37.9V, and the battery level is 3 cells on
The battery voltage is greater than 39.9V, and the battery level is 4 cells on
48V lead-acid voltage range: (15 series lithium iron phosphate batteries can be used) Note: 48V lead-acid exceeding 59V will burn out
The battery voltage is greater than 43V, and the battery level is 1 grid
The battery voltage is greater than 45.6V, and the battery level is 2 cells on
The battery voltage is greater than 48.2V, and the battery level is 3 cells on
The battery voltage is greater than 50.9V, and the battery level is 4 cells on
