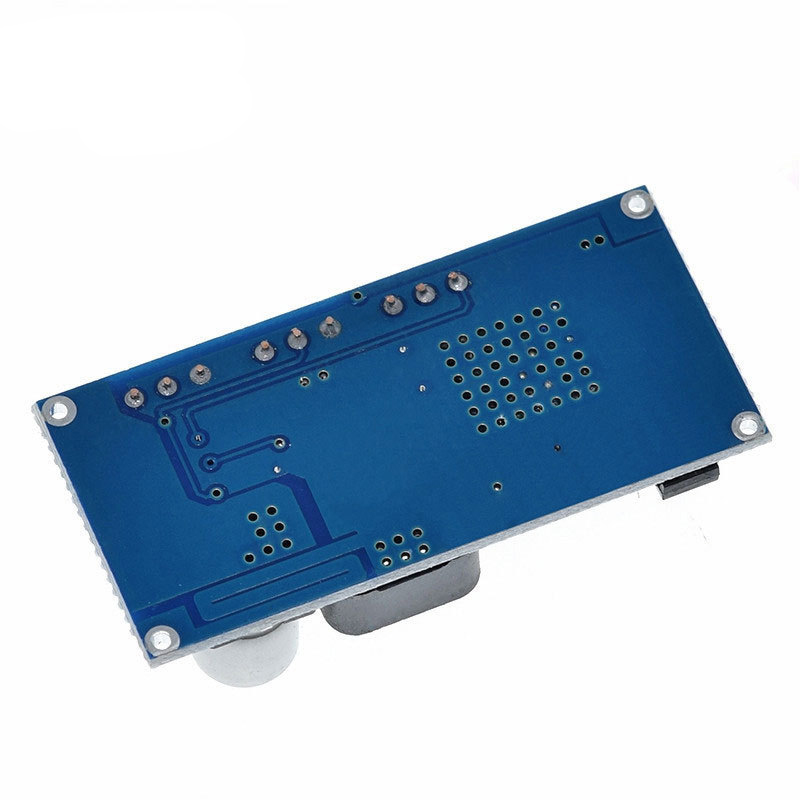

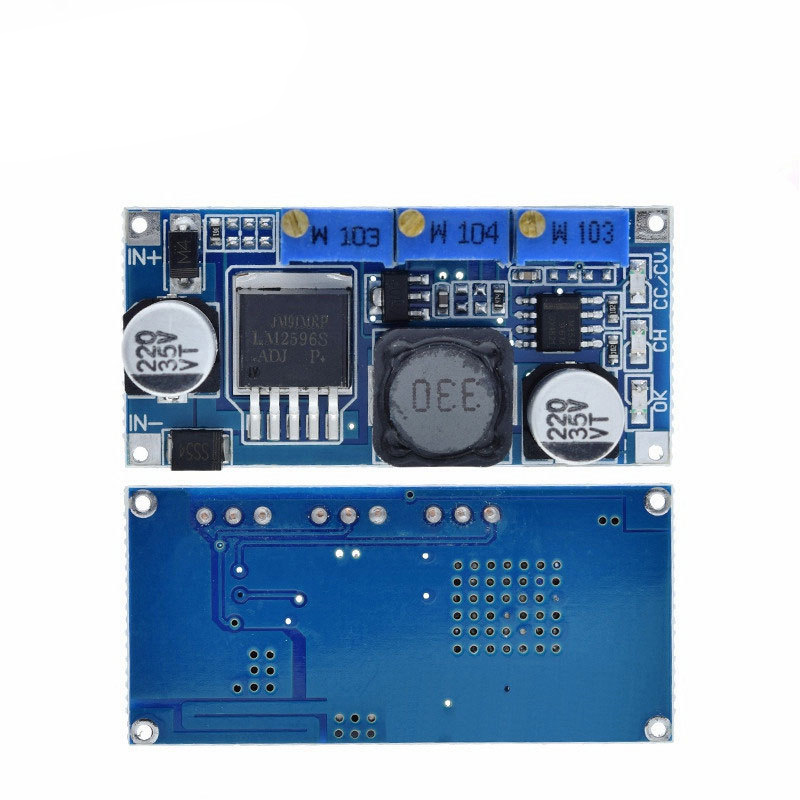

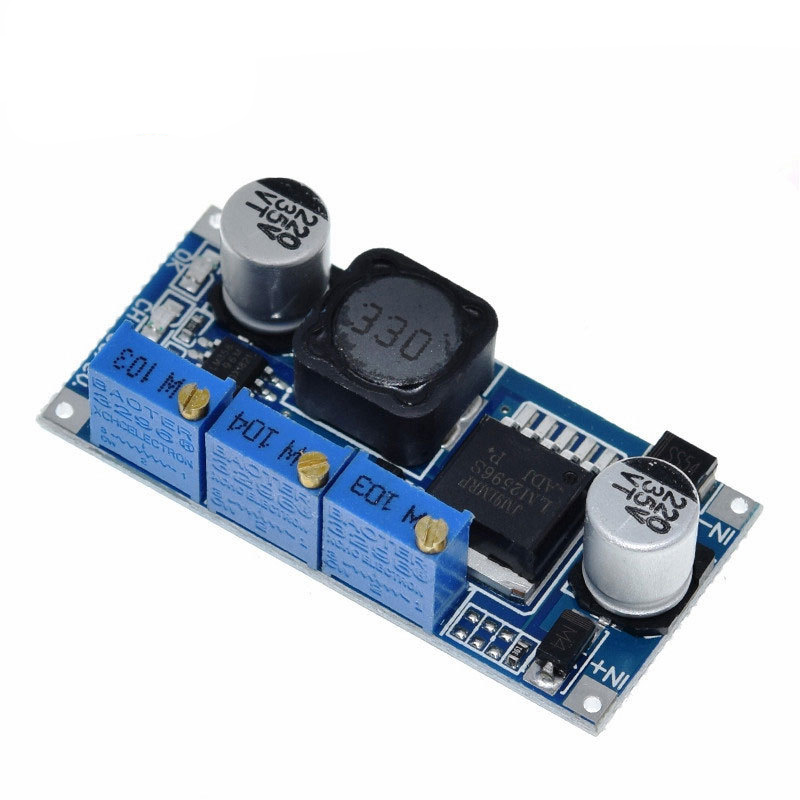

LM2596 CC/CV Power Module LED Driver Lithium Battery Charging Board High Efficiency Low Heat Blue BoardItem NO.: MK00862
-
Customized Requirements
- Quantity
-
-
- Product Name: LM2596 CC/CV Power Module LED Driver Lithium Battery Charging Board High Efficiency Low Heat Blue Board
- Item NO.: MK00862
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Lithium Battery Charging Board , Power Module , LED Driver , LM2596 , CC/CV
- Creation Time: 2024-04-11
LM2596 CC/CV Power Module
Product Information:
● Module nature: Non isolated step-down module
● Rectification method: asynchronous rectification
● Input voltage: 7V-35V
● Output voltage: 1.25V-30V
● Output current: Adjustable Max 3A
● Conversion efficiency: 92% (maximum)
● Switching frequency: 150KHz
● Output ripple: 50mV (maximum) 20M bandwidth
● Load adjustment rate: ± 0.5%
● Voltage regulation rate: ± 2.5%
● Operating temperature: -40 ℃ to+85 ℃
● Size: 48 * 23 * 14 (length * width * height) (mm)
Product Features:
● The module uses domestically produced high-quality LM2596 chip, which has high efficiency (92%) and low heat generation, making it easy to reach a current of 3A or above. At the same time, it is combined with the original TI operational amplifier to control the output current, making the overall output very stable.
● This module uses original Sanyo filter capacitors with low ESR, which can reduce the ripple voltage to 50mV!
● This module uses machine mounting and reflow welding. At the same time, each module has undergone two hours of aging test before shipment to ensure high reliability.
● This module is an adjustable step-down module that can change the output voltage by adjusting the blue adjustable resistor on top of the module. The input output voltage difference is 2V, and the minimum output voltage is 1.23V.
● The IN - (input negative), IN+(input positive), OUT - (output negative), and OUT+(output positive) marked on the module must be connected correctly, otherwise it may cause module damage.
