- Product Name: SCT-013-000 Open Close Current Transformer 5A 10A 15A 20A 30A 50A 60A 100A
- Item NO.: SCT013
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 20A , 15A , 10A , 60A , 30A , 5A , 50A , 100A , SCT-013-000 , Open Close Current Transformer
- Creation Time: 2024-04-11

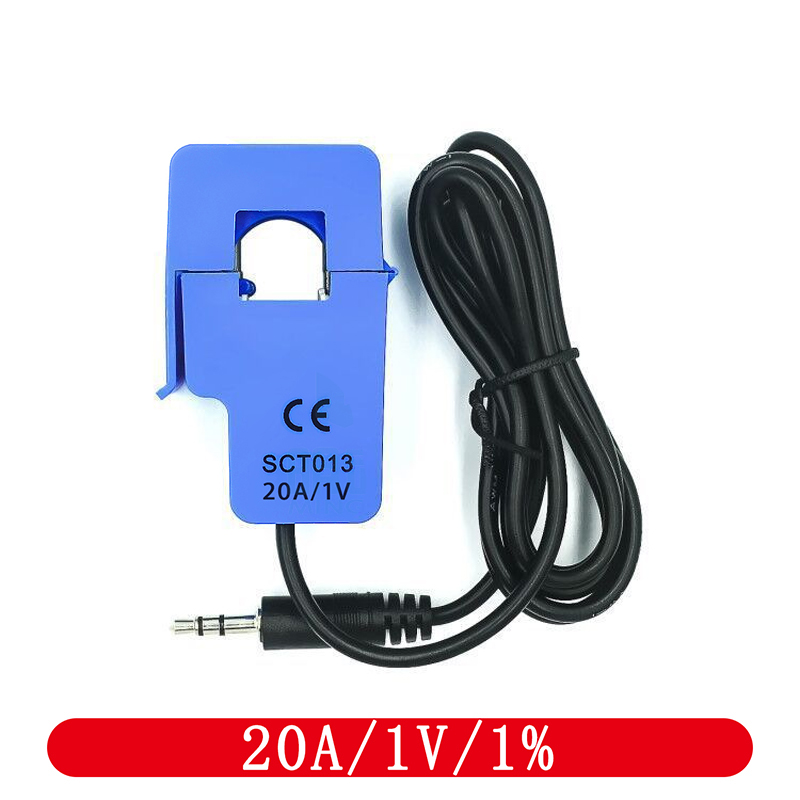

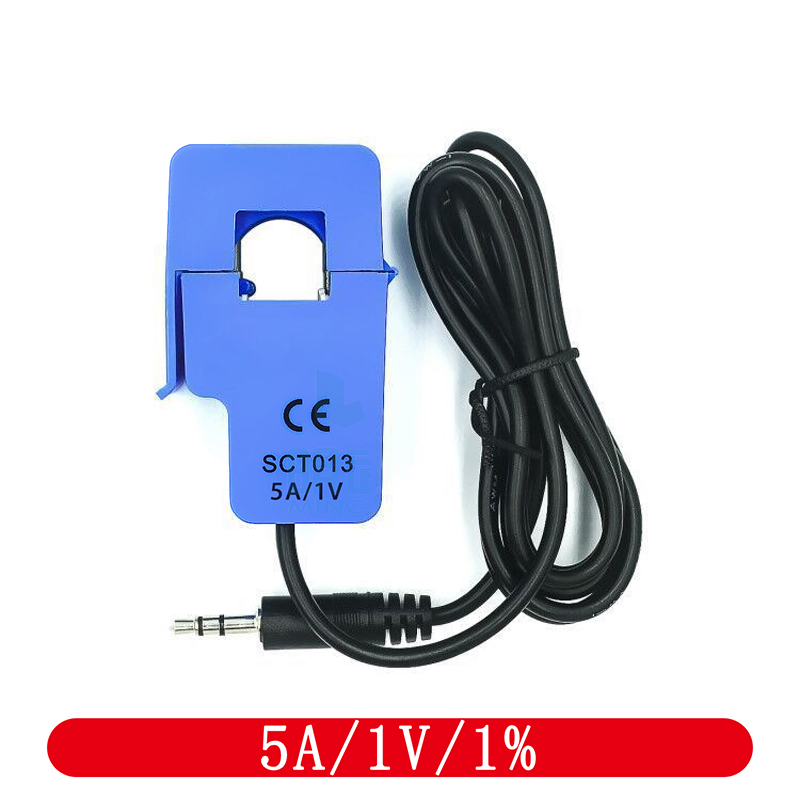

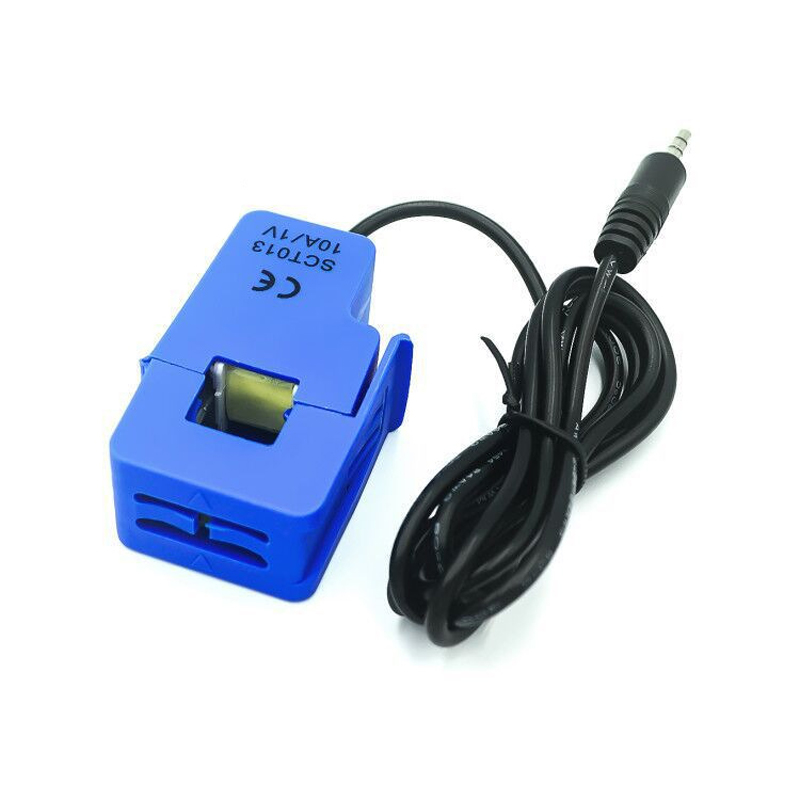

SCT-013-000 Open Close Current Transformer
Product Description:
Model: SCT013
Frequency: 50HZ-150KHZ
Open close transformer SCT-013 Rated input current: 100A Model: SCT-013 Rated input current: 60A/100A
Opening size: 13mm × 13mm, fully compatible with similar foreign products; Non linearity ± 3% (10% to 120% of rated input current); Lead length 1.5 meters, standard Φ 3.5 Three core plug output; There are two output forms of current and voltage (voltage output form with built-in sampling resistor).
Purpose: Used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, etc. Iron core material: Ferrite mechanical strength: opening and closing times not less than 1000 times (tested at 20 ℃)
Safety index: Electrical strength (between shell and output) 6000V AC/1min, flame retardant characteristics in accordance with UL94-V0
Working temperature: -25 ℃~+70 ℃
