Low-voltage AC-DC Buck Power Module DC-DC Adjustable Regulated Power Supply LM2596HV Power ModuleItem NO.: MK00520
-
Customized Requirements
- Quantity
-
-
- Product Name: Low-voltage AC-DC Buck Power Module DC-DC Adjustable Regulated Power Supply LM2596HV Power Module
- Item NO.: MK00520
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Power Module , DC-DC , Low-voltage AC-DC Buck Power Module , Adjustable Regulated Power Supply , LM2596HV
- Creation Time: 2024-04-10
Low voltage AC-DC Buck Power Module
Product Introduction:

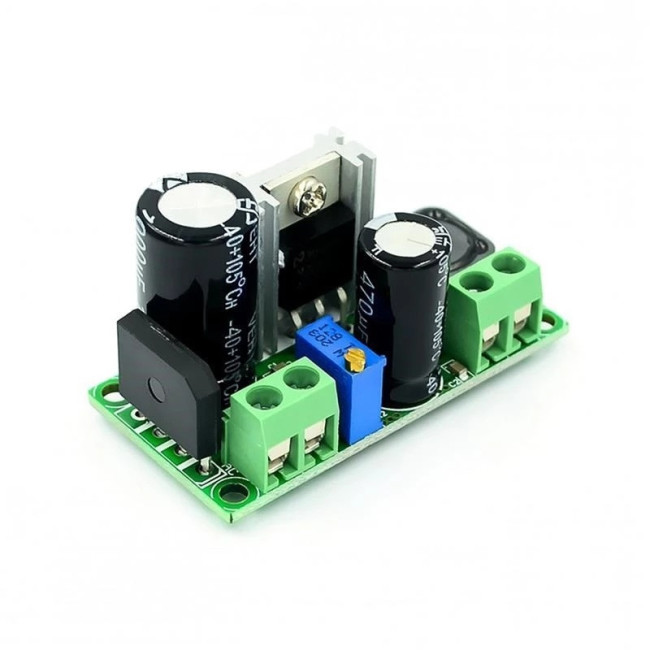

The power module adopts the plug-in LM2596HV, a high voltage version of LM2596, with an input voltage of 50V (limited by the voltage withstand of the filtering capacitor) and an external heat sink, which can withstand high current operation. The input end adopts a 4A rectifier bridge stack that can input AC power and is equipped with a dedicated DC input port, which is universal for AC and DC input. The output voltage can be adjusted, ranging from 3.3V to 33V. The output voltage will vary depending on the input voltage range.

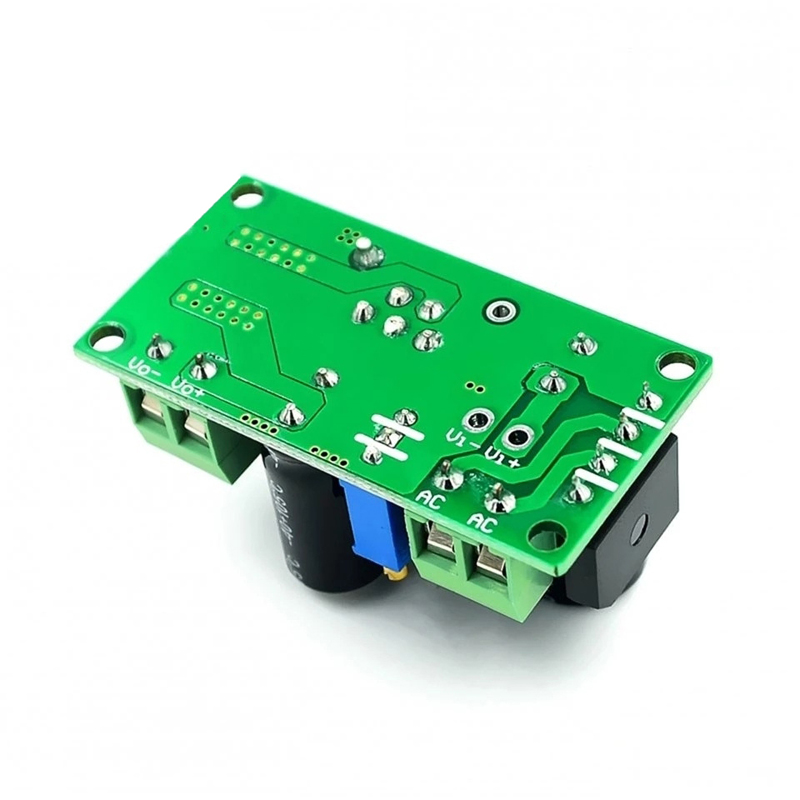

Input AC voltage AC5V~AC30V or DC5V-50V. Due to the large fluctuation of AC voltage, a margin has been reserved for the recommended AC voltage range. This power module uses a plug-in LM2596HV with an external heat sink. The high voltage version of LM2596 has an input voltage of 50V (limited by the voltage resistance of the filtering capacitor) and an external heat sink. The output current can work stably at 2.2A for a long time and 3A for a short time. The front of the PCB has the name of the silk printed wiring terminal, and the back also has the name of the silk printed wiring terminal. Please recognize it before soldering the leads to prevent damage.
Parameters:
Input voltage range: AC 5V~30V, DC 5V-50V
Output range: DC 3.3V~33V
Output current range: up to 2.2A (the voltage regulator chip can withstand a high current of 3A, and can work at an output current of 3A for a short period of time)
