XL7015 Upgrade DC-DC DC Converter Step-down Module 5V-80V Wide Voltage Input Better than 7005AItem NO.: XL7015
-
Customized Requirements
- Quantity
-
-
- Product Name: XL7015 Upgrade DC-DC DC Converter Step-down Module 5V-80V Wide Voltage Input Better than 7005A
- Item NO.: XL7015
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC-DC , Step-Down Module , Wide Voltage Input , DC Converter , 5V-80V , XL7015 , Upgrade
- Creation Time: 2024-04-10

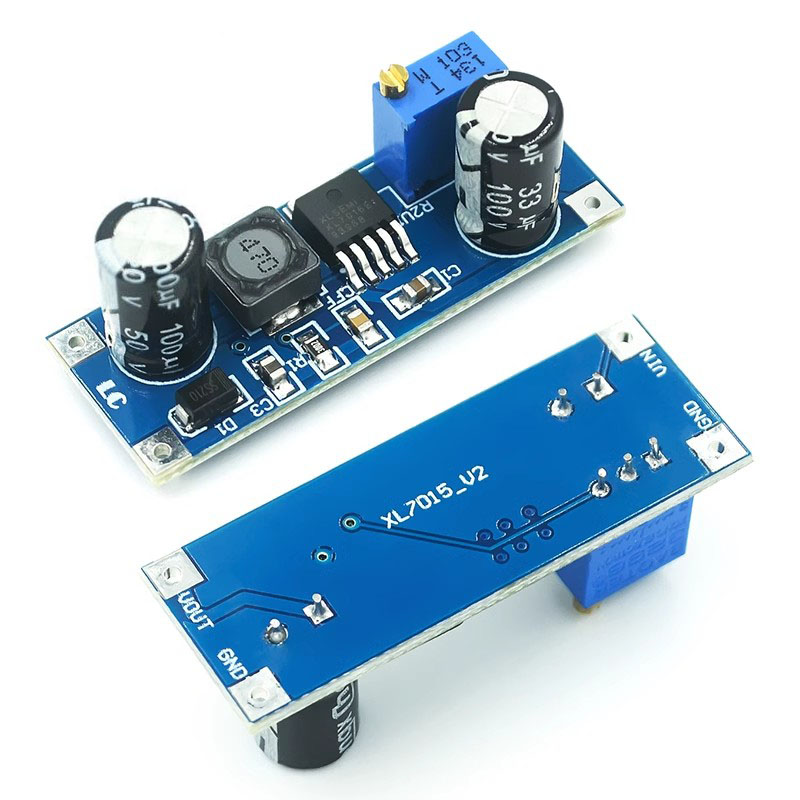

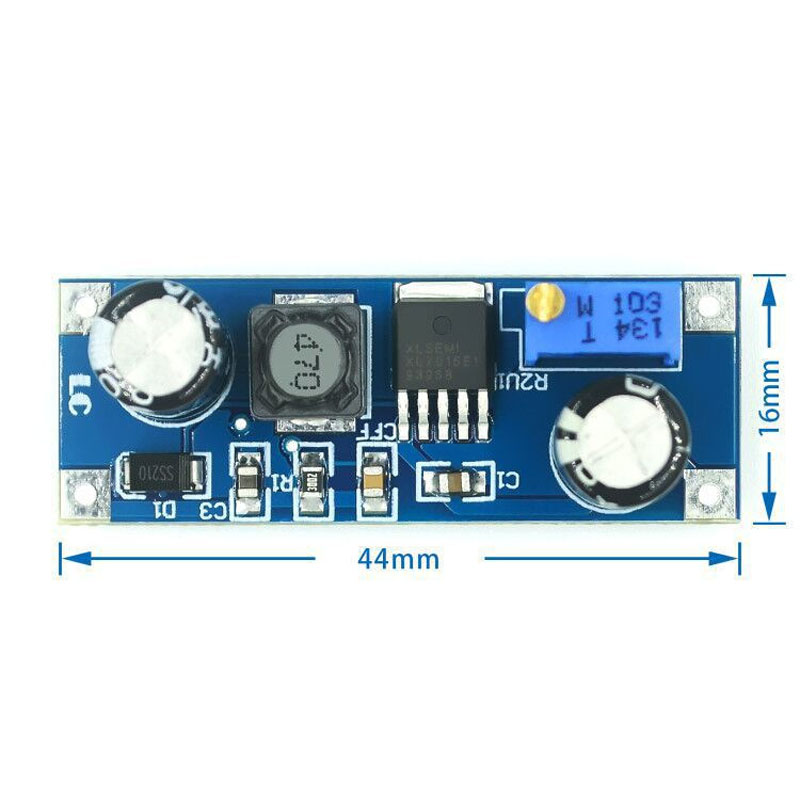

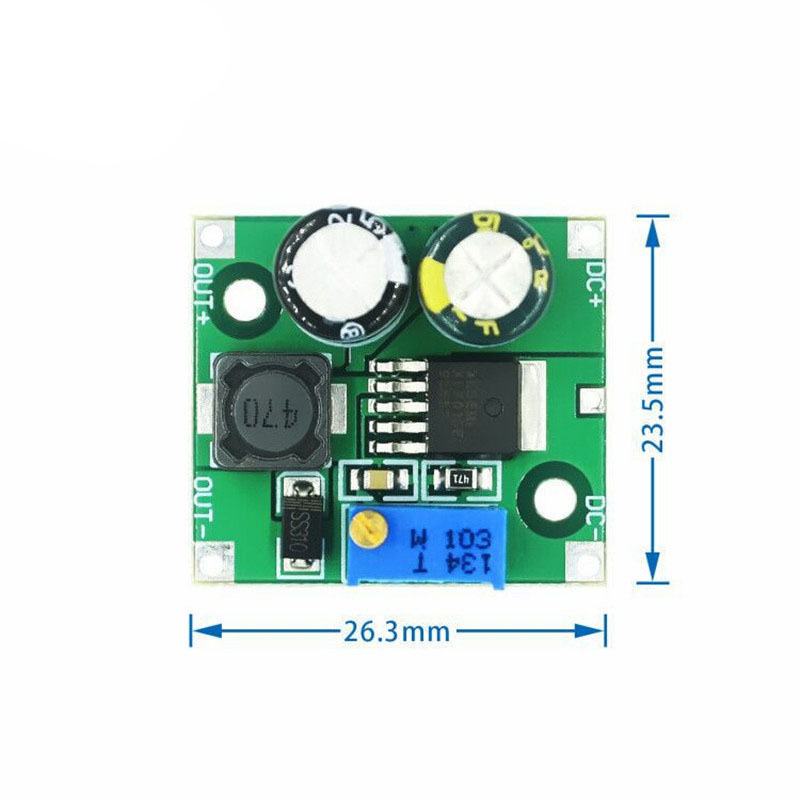

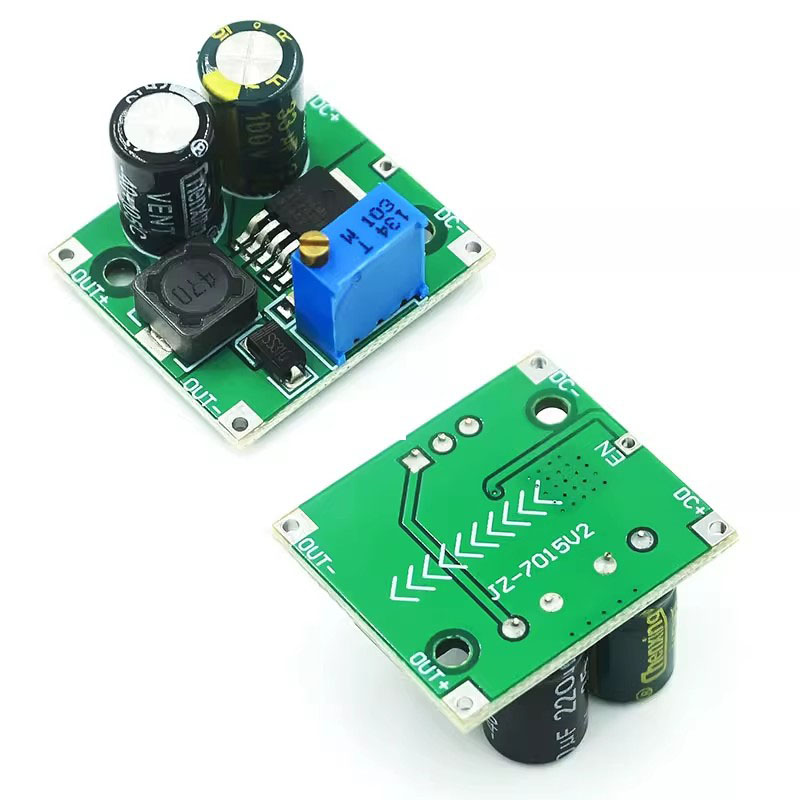

XL7015 DC-DC Step Down Module 5V-80V
Product Introduction:
The XL7015 DC-DC buck module is an efficient, high-voltage buck type DC-DC converter that provides high 0.8A output current capability, low ripple, excellent linear adjustment rate and load adjustment rate. The input voltage can reach up to 80V, far exceeding modules such as 2596. The chip is equipped with multiple protection mechanisms. Can be applied to electric vehicle controllers, etc.
(Note: Due to transportation limitations, the module itself is not equipped with batteries)
1. Wide input voltage range from 5V to 80V;
2. The output voltage can be adjusted from 5V to 20V;
3. Small voltage drop of 1V;
4. Large switch current 0.8A;
5. It is recommended that the output power be less than 7W;
6. Built in overheat shutdown protection, output short circuit protection, and overcurrent protection;
7. Excellent linearity and load adjustment rate;
Wiring Instructions:
1. VIN: Voltage input terminal (5V-80V);
2. GND: Input voltage ground terminal;
3. VOUT: Output voltage terminal (5V-20V);
4. GND: Output voltage ground terminal;
Shipping List:
XL7015 DC-DC DC converter x 1 unit
