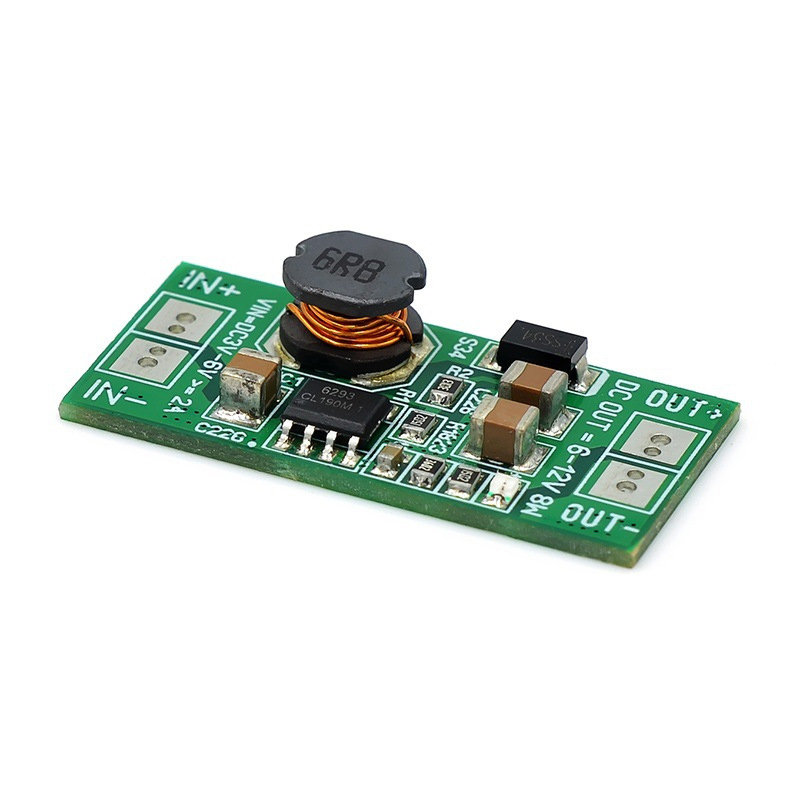

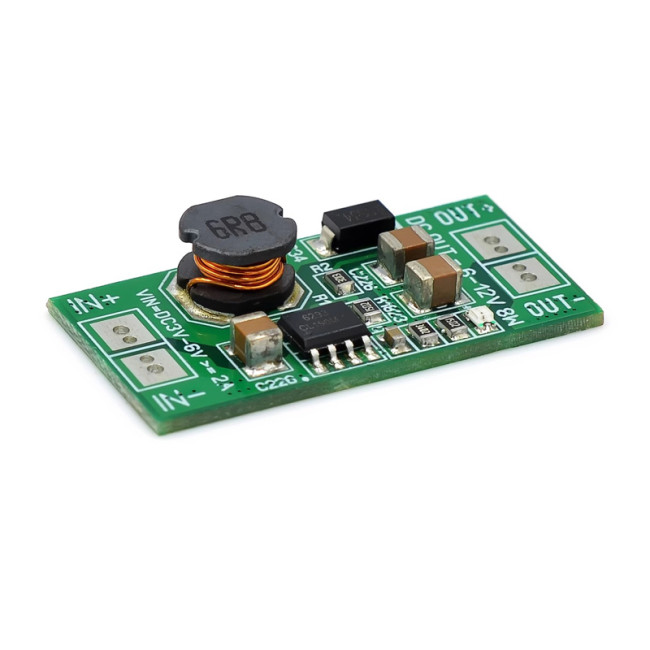

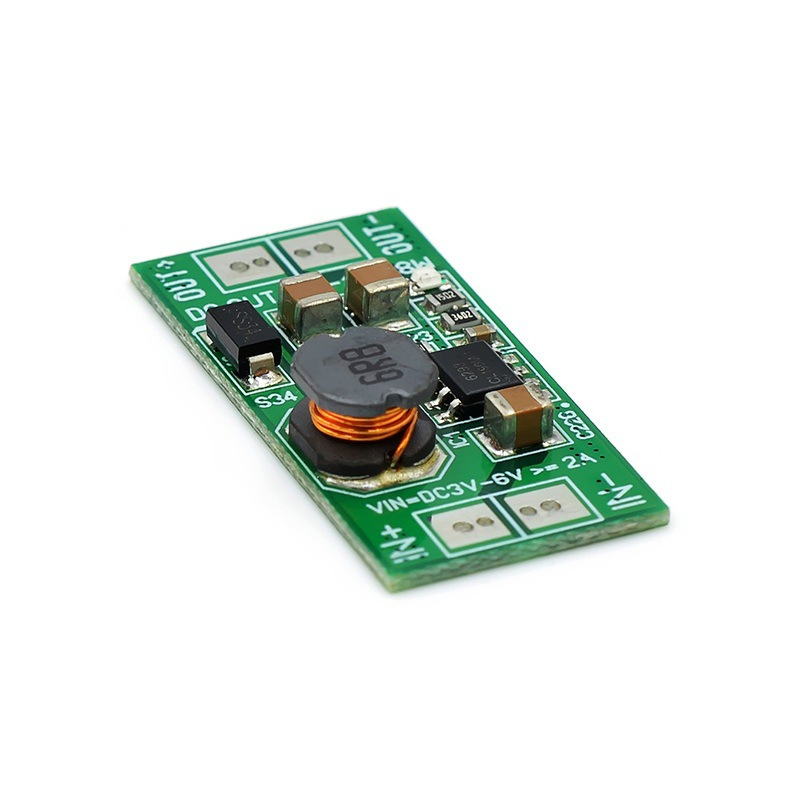

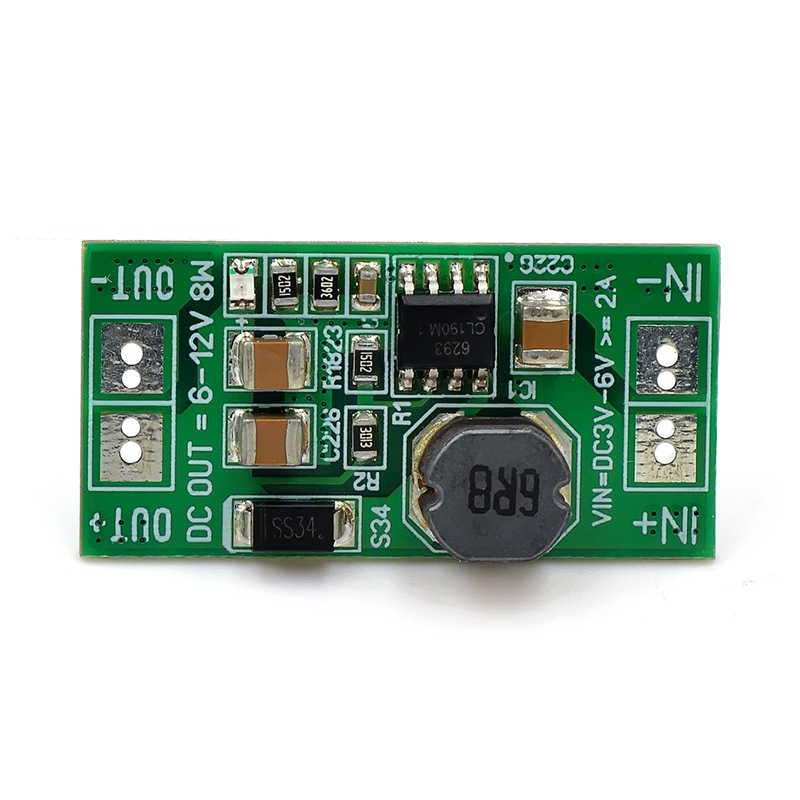

Low-voltage High-power Boosting And Stabilizing Module 8W 5V~12V DC Pad To DC Version

Low-voltage High-power Boosting And Stabilizing Module 8W 5V~12V DC Pad To DC VersionItem NO.: MK00875

US$ 3.09
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Low-voltage High-power Boosting And Stabilizing Module 8W 5V~12V DC Pad To DC Version
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Low voltage High power Boosting And Stabilizing Module



    Product Description:



    Size: 33.1mm * 16.5mm

    The starting voltage of this module is 1.2V, and the working voltage is 2V-6.5V. The input voltage should not exceed 6.5V, otherwise it may be easily broken down. Reverse connection and short circuit are prohibited!

    The maximum output power is 8-9W, which is prone to overheating even higher. The maximum input current is 2A, and the peak value is 2.5A. When used for a long time, IN<2A current!

    Input 1.5V without load: current 2-3.5mA without LED, 10-15mA with LED (12V output test)

    When the minimum input is 1.5V, a 12V voltage can be output, with a current of about 10-15mA. If the output is 9V, the current is about 20-30mA

    ==========Attention: It is not recommended to exceed the input voltage by more than 10 times, as it is easy to lose control of the output=========

    The following are routine test data: (For reference only)

    If it is a 1.5V liter 12V or 9V, it is recommended to order a non LED version during bulk production to reduce no-load power! It will also reduce costs

    Input DC2V to boost to 12V, output current is about 100mA, and input DC3V to boost to 12V, output current is about 200mA

    Input DC4.2V to boost to 12V, output current approximately 450mA, input DC5V to boost to 12V, output current approximately 500mA-600mA

    When inputting DC6V and increasing 12V, the maximum input current is 2A and the output is 12V 700-800mA. Please pay attention to the air temperature! To avoid overheating and damage

    If the boost voltage reaches 9V, you can convert it yourself, which is slightly higher than the 12V power and efficiency!

    For example, when 3.7V rises to 12V, the output current is about 400mA with a peak of 500mA. If the output is 9V, it is about 500mA with a peak of 650mA
