MP3 Bluetooth Decode Board 4.2 DIY Speaker Audio Amplifier Board Refitting Lossless Vehicle Audio Receiver ModuleItem NO.: MP3 Bluetooth decoder board 4.2
-
Customized Requirements
- Quantity
-
-
- Product Name: MP3 Bluetooth Decode Board 4.2 DIY Speaker Audio Amplifier Board Refitting Lossless Vehicle Audio Receiver Module
- Item NO.: MP3 Bluetooth decoder board 4.2
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: DIY , 4.2 , MP3 Bluetooth Decode Board , Speaker Audio Amplifier Board , Audio Receiver Module
- Creation Time: 2024-04-30

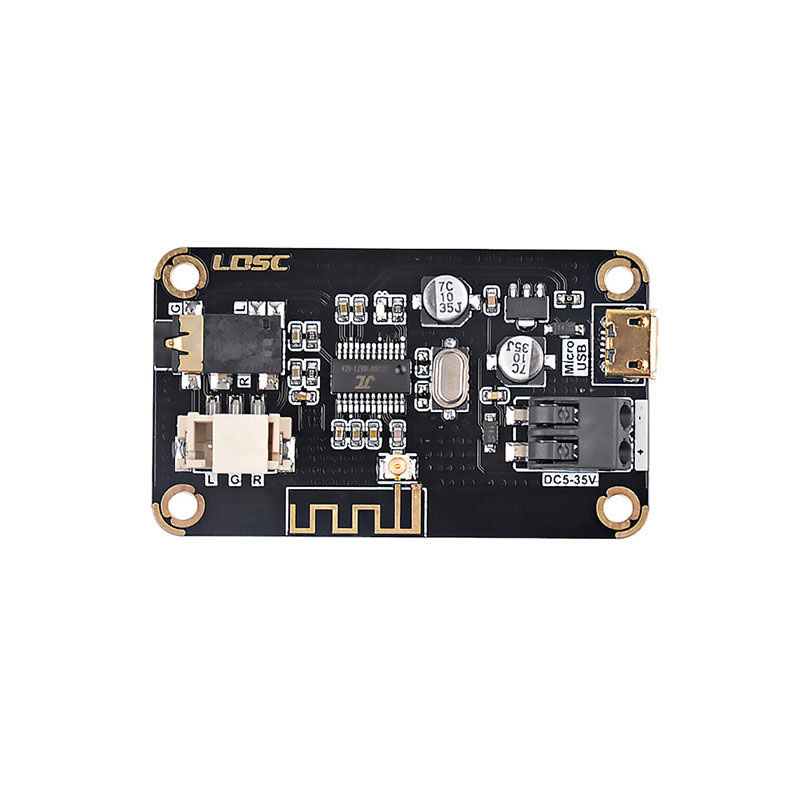

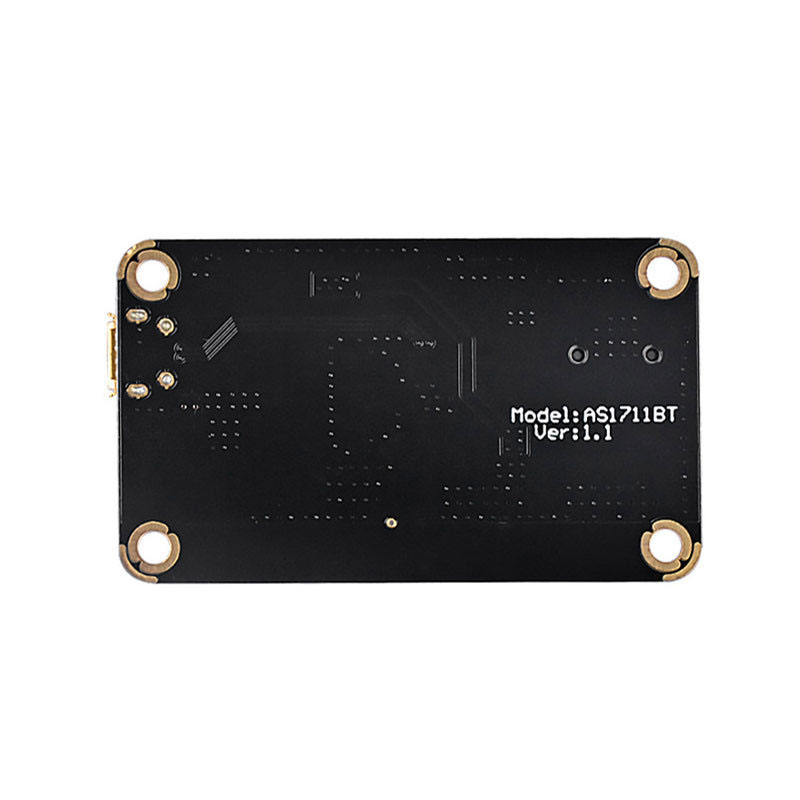

MP3 Bluetooth Decoding Board 4.2
Module Parameters And Characteristics:
● BT Bluetooth module V1.1
● Input voltage: DC5V-35V
● Bluetooth version: 4.2
● Bluetooth name: LQSC_ BT
● Operating temperature: - 40 ℃ to 85 ℃

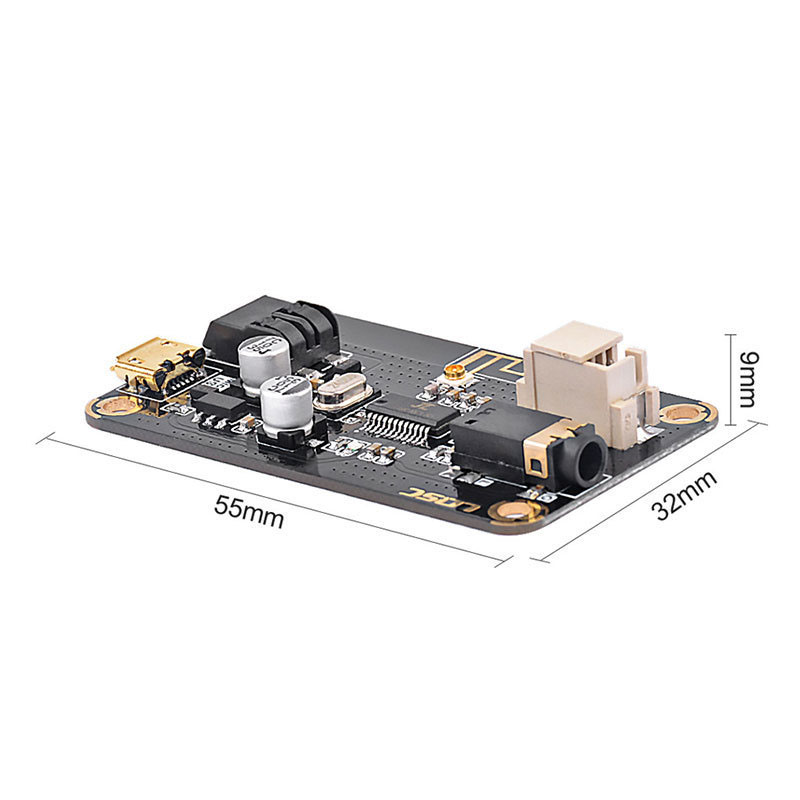

● Overall dimension: 55 * 32 * 9 (length * width * height) (mm), which can be combined
● Full chip process
● Wide range operating voltage
● Reverse connection protection of power supply
● Dual audio output terminal
● Externally accessible antenna (suitable for installation in metal box)
LED Indicator Description:
Flash: waiting for connection
Slow flash: audio playing
Always on: connected
Delivery List:
1x mp3 Bluetooth decoding board
1x 2.54mm 3P audio shielded wire
1x 2.54mm 3P socket terminal
