Temperature and Humidity Transmitter Modbus SHT20 Sensor High Precision Temperature and Humidity MonitoringItem NO.: XY-MD02
-
Customized Requirements
- Quantity
-
-
- Product Name: Temperature and Humidity Transmitter Modbus SHT20 Sensor High Precision Temperature and Humidity Monitoring
- Item NO.: XY-MD02
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: High Precision , Sensor , SHT20 , Temperature and Humidity Transmitter
- Creation Time: 2024-03-25

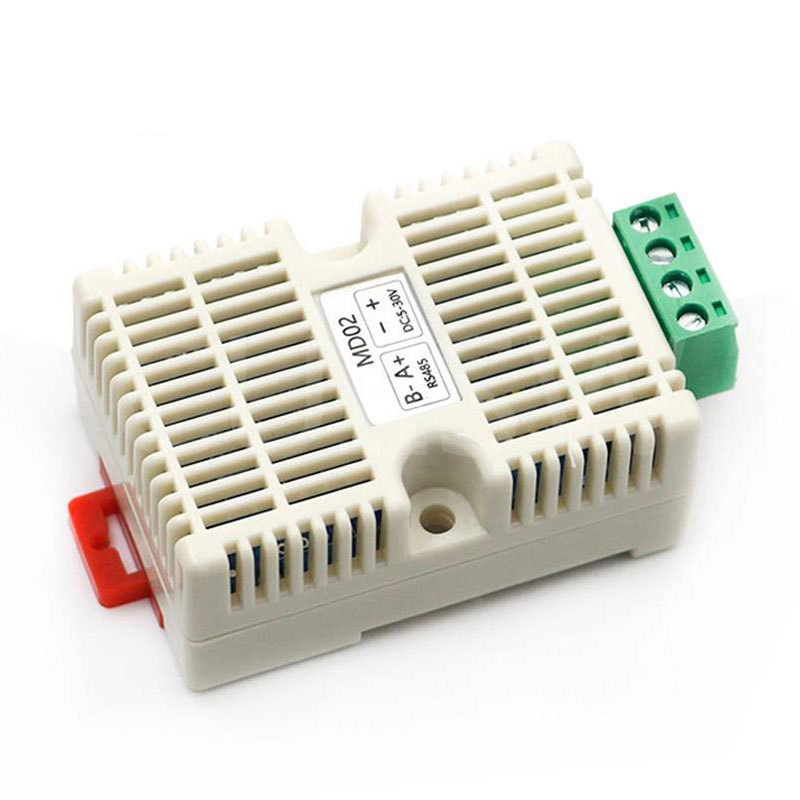

Temperature and Humidity Transmitter
Modbus SHT20 Sensor
Product Information:

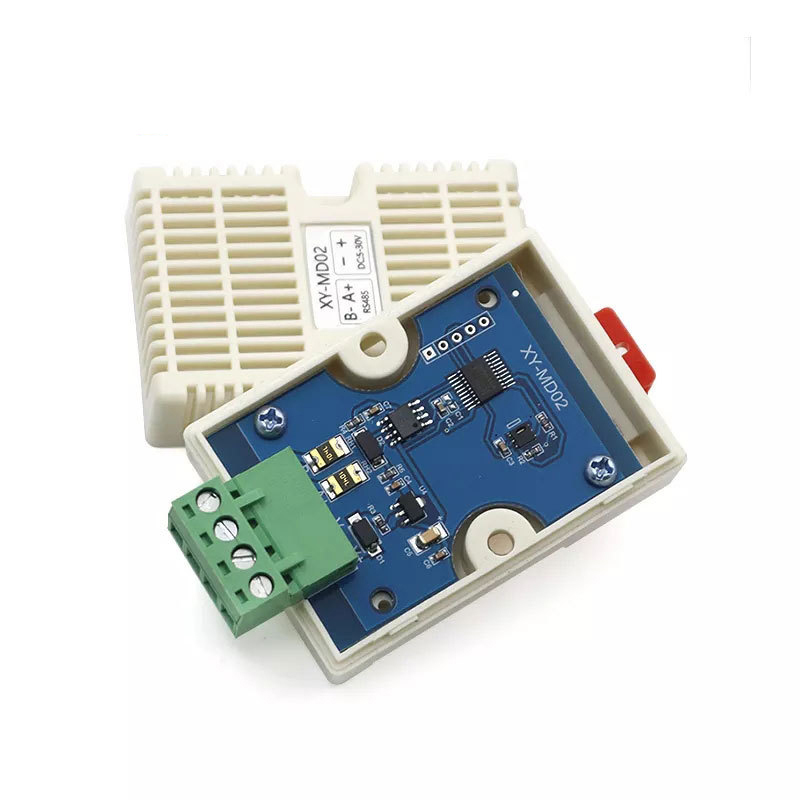

The product adopts industrial grade chip and high-precision imported SHT20 temperature and humidity sensor to ensure excellent reliability, high-precision and interchangeability of the product. RS485 hardware interface (with lightning protection design) is adopted, and the protocol layer is compatible with the standard industrial Modbus Rtu protocol. This product integrates MODBUS protocol and common protocol. The user can choose the communication protocol by himself. The common protocol has the function of automatic upload (connecting RS485 and automatically outputting temperature and humidity through the serial port adjustment tool).
Product Parameters:
● Product name: temperature and humidity transmitter
● DC power supply: DC5-30V
● Output signal: RS485 signal
● Communication protocol: Modbus RTU protocol and user-defined common protocol
● Communication address: 1~247 can be set, default 1
● Baud rate: settable, default 9600, 8-bit data, 1-bit stop, no verification
● Temperature accuracy: ± 0.5 ℃ (25 ℃)
● Humidity accuracy: ± 3% RH
● Temperature range: - 40 ℃~+60 ℃
● Humidity range: 0% RH~80% RH
● Temperature resolution: 0.1 ℃
● Humidity resolution: 0.1% RH
● Equipment power consumption: ≤ 0.2W
