WCS1800/1700/1600/1500 Hall Current Sensor Adjustable 35A/70A/100A/200A Short Circuit Overcurrent Protection ModuleItem NO.: WCS
-
Customized Requirements
- Quantity
-
-
- Product Name: WCS1800/1700/1600/1500 Hall Current Sensor Adjustable 35A/70A/100A/200A Short Circuit Overcurrent Protection Module
- Item NO.: WCS
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: 100A , Hall Current Sensor , WCS1800 , WCS1700 , WCS1600 , WCS1500 , 35A , 70A , 200A , Short Circuit Overcurrent Protection Module
- Creation Time: 2024-04-15
WCS1800/1700/1600/1500 Hall Current Sensor
Product Introduction:
The product mainly has two functions: the first function is an analog signal followed by an operational amplifier, which is suitable for A/D conversion. The second function is a switching signal, which can preset the current limit value. When the actual current value is greater than the preset current value, the switching signal will change from low level to high level, and there is an LED indicator light indicating it, which is simple and easy to use.
Product Parameters:
● Product name: overcurrent detection sensor overcurrent/short circuit protection detection module
● Main chip: LM393 operational amplifier WCS1800/1700/1600/1500
● Power supply voltage: 3-5 V, recommended for 5 V power supply;
● Power supply current: 3.5mA;
● Working temperature: - 20 degrees to 125 degrees;
● Isolation voltage: 1.5KV;

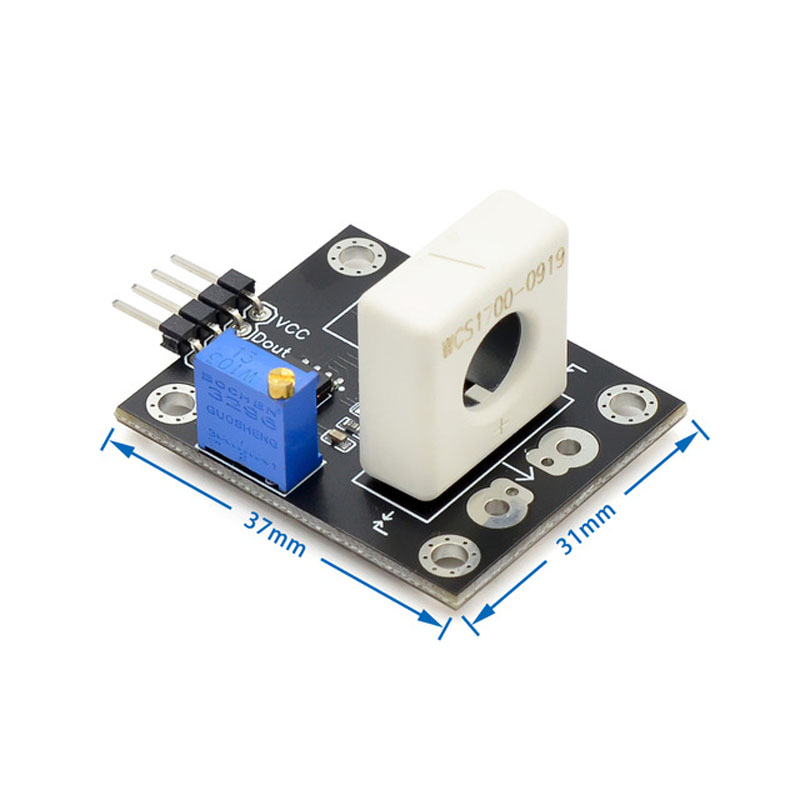

● Board size: 30mm * 37mm (with 4 M3 fixed mounting holes)
Product Features:
1. With signal output indicator light;
2. Output overcurrent signal indication;
3. With mounting holes for convenient firmware installation;
4. Sampling current conversion analog signal output, can be connected to ADC, TTL level signal output, can be connected to microcontroller IO port control.
5. The output signals are analog signals and level signals.
Application Field:
● Intelligent trolley motor overcurrent detection
● Locked rotor protection current detection
● Short circuit protection detection
● Demonstrating teaching experiments and other occasions
